| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

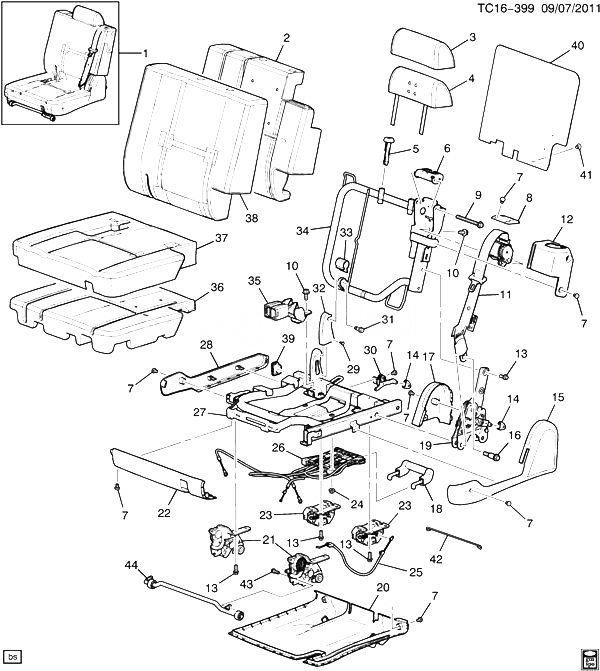

| 001 |
22760803 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) |
2007-2013 |
01 |
| 001 |
22760804 |
SEAT, 3RD ROW (INCLS 2-44) (CASHMERE) |
CK1 (06) (AQY, AS3, Z75, 394) (EXC AX4) |
2009-2013 |
01 |
| 001 |
22760809 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1 (06) (AS3, Z75, 194) (EXC AQY, AX4) |
2007-2013 |
01 |
| 001 |
22760810 |
SEAT, 3RD ROW (INCLS 2-44) (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AQY, AX4) |
2009-2013 |
01 |
| 001 |
22760818 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 001 |
22760819 |
SEAT, 3RD ROW (INCLS 2-44) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
01 |
| 001 |
22760824 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) |
2010-2013 |
01 |
| 001 |
22760825 |
SEAT, 3RD ROW (INCLS 2-44) (CASHMERE) |
CK1, 2 (06) (AS3, 33C) (EXC AQY) |
2010-2013 |
01 |
| 001 |
22760831 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C, 5T5) |
2010-2013 |
01 |
| 001 |
22760831 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19D) |
2010-2010 |
01 |
| 001 |
22760831 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19V) |
2007-2013 |
01 |
| 001 |
22760839 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AS3, 19C, 5T5) (EXC AQY) |
2009-2013 |
01 |
| 001 |
22760839 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK1, 2 (06) (AS3, 19V) (EXC AQY) |
2007-2013 |
01 |
| 001 |
22760847 |
SEAT, 3RD ROW (INCLS 2-44) (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) (EXC AQY, AX4) |
2008-2013 |
01 |
| 001 |
22760851 |
SEAT, 3RD ROW (INCLS 2-44) (COCOA) |
CK1 (06) (AQY, AS3, ULT, Z75, 415) |
2009-2013 |
01 |
| 001 |
22760827 |
SEAT, 3RD ROW (INCLS 2-44) (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
01 |
| 001 |
22760883 |
SEAT, 3RD ROW (INCLS 2-44) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
01 |
| 001 |
22760884 |
SEAT, 3RD ROW (INCLS 2-44) (CASHMERE) |
CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) |
2009-2013 |
01 |
| 002 |
15804530 |
PAD, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 003 |
|
COVER, R/SEAT H/RST (PART OF 4) |
|
2007-2013 |
|
| 004 |
15863451 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 5T5) |
2007-2013 |
02 |
| 004 |
15863451 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19V) |
2007-2013 |
02 |
| 004 |
15863452 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 313, 333) |
2007-2010 |
02 |
| 004 |
15865842 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AS3, 19V) (EXC AQY) |
2007-2013 |
02 |
| 004 |
15863452 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 316, 336) |
2009-2010 |
02 |
| 004 |
15833506 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AQY) |
2009-2013 |
02 |
| 004 |
15833505 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1 (06) (AS3, Z75, 194) (EXC AQY) |
2007-2013 |
02 |
| 004 |
15863458 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1 (06) (AQY, AS3, Z75, 194) (EXC AX4) |
2007-2013 |
02 |
| 004 |
15863459 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1 (06) (AQY, AS3, Z75, 394) |
2007-2013 |
02 |
| 004 |
15865842 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AS3, 19C, 5T5) (EXC AQY) |
2010-2010 |
02 |
| 004 |
20904837 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) |
2010-2013 |
02 |
| 004 |
20904838 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
02 |
| 004 |
20904931 |
RESTRAINT, R/SEAT HD (INCLS 3) (CASHMERE) |
CK1, 2 (06) (AS3, 33C) (EXC AQY) |
2010-2013 |
02 |
| 004 |
15913991 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK1, 2 (06) (AS3, 19C) (EXC AQY, 5T5) |
2010-2013 |
02 |
| 004 |
15827642 |
RESTRAINT, R/SEAT HD (INCLS 3) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
02 |
| 005 |
15279353 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (83I) |
2007-2013 |
02 |
| 005 |
25851751 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/O BUTTON) |
CK1 (41I) |
2008-2013 |
02 |
| 005 |
20912677 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) (W/BUTTON) |
CK1 (06) (41I) |
2008-2013 |
02 |
| 005 |
20912675 |
GUIDE, 3RD ROW SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (33I, 39I) |
2007-2013 |
02 |
| 005 |
20912675 |
GUIDE, 3RD ROW SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (31I) |
2007-2011 |
02 |
| 005 |
20912676 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2, 3 (83I) |
2007-2013 |
02 |
| 005 |
20912676 |
GUIDE, 3RD ROW SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (84I) |
2009-2011 |
02 |
| 005 |
15804525 |
GUIDE, 3RD ROW SEAT H/RST (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2007-2013 |
04 |
| 005 |
25943771 |
GUIDE, 3RD ROW SEAT H/RST (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
02 |
| 006 |
25869335 |
BRACKET, R/SEAT 3RD ROW BELT (RETR SI) |
CK1, 2 (06) (AS3) |
2007-2013 |
02 |
| 007 |
|
BOLT, R/SEAT RSR FIN CVR |
|
2007-2013 |
|
| 008 |
|
BEZEL, R/SEAT BELT OPG (PART OF 11) |
|
2007-2013 |
|
| 009 |
11562382 |
BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (3RD ROW SEAT BK) |
|
2007-2013 |
01 |
| 010 |
11562383 |
BOLT, 3RD ROW SEAT BELT ANC (M12X1.75X30.5) (8.900) |
CK1, 2 (06) |
2010-2013 |
02 |
| 011 |
19207595 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 39I) |
2009-2013 |
01 |
| 011 |
19207596 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (TITANIUM) |
CK1, 2 (06) (83I) |
2008-2013 |
01 |
| 011 |
19207598 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) |
K1 (06) (AS3, ULT, Z75, 415) |
2009-2013 |
01 |
| 011 |
19207594 |
BELT KIT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) |
CK1, 2 (06) (AS3, 19I) |
2010-2013 |
01 |
| 011 |
25906824 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (CASHMERE) |
CK107 (06) (AS3, AX4, Z75, 394) (EXPORT) |
2009-2013 |
01 |
| 011 |
25940414 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (COCOA) |
K1 (06) (AS3, AX4, ULT, Z75, 415) (EXPORT) |
2009-2013 |
01 |
| 011 |
25869317 |
BELT, R/SEAT #2 (RETR SI) (INCLS 8) (EBONY) |
CK107 (06) (AS3, AX4, Z75, 194) (EXPORT) |
2008-2013 |
01 |
| 012 |
15827657 |
COVER, R/SEAT HGE FIN (OUTBOARD) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 013 |
12478382 |
BOLT, 3RD ROW SEAT (M10X1.50X28.0) |
CK1 (06) (AS3) |
2007-2013 |
AR |
| 014 |
20963262 |
KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (OUTER) |
CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) |
2010-2013 |
01 |
| 014 |
20963265 |
KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (INNER) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15279464) |
CK1, 2 (06) (AS3, 19I, 33I, 39I, 83I) (2ND DES) |
2010-2010 |
02 |
| 014 |
15279464 |
KNOB, 3RD ROW SEAT BK LAT REL (EBONY) (16.716) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963265) |
CK1, 2, 3 (1ST DES) |
2010-2010 |
02 |
| 015 |
15898412 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 19I) |
2007-2013 |
01 |
| 015 |
15898412 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 84I) |
2009-2010 |
01 |
| 015 |
15898413 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (OUTBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2009-2013 |
01 |
| 015 |
15898414 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (OUTBOARD, OUTER) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2013 |
01 |
| 016 |
19127809 |
BOLT, 3RD ROW SEAT BK LAT (M12X1.75X63.9) (16.679) |
CK1, 2 (06) |
2007-2013 |
02 |
| 017 |
15804503 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 84I) |
2009-2010 |
01 |
| 017 |
15804503 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 19I) |
2007-2012 |
01 |
| 017 |
15804504 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2009-2012 |
01 |
| 017 |
15804505 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (OUTBOARD, INNER) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 018 |
20963255 |
HANDLE, R/SEAT LAT REL (PART OF 26) (EBONY) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15822356) |
CK1, 2 (06) (AS3, 19I) (2ND DES) |
2010-2010 |
01 |
| 018 |
20963257 |
HANDLE, R/SEAT LAT REL (PART OF 26) (TITANIUM) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15822358) |
CK1, 2 (06) (AS3, 83I) (2ND DES) |
2010-2010 |
01 |
| 018 |
15822356 |
HANDLE, R/SEAT LAT REL (PART OF 26) (EBONY) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963255) |
CK1, 2 (06) (AS3, 19I) (1ST DES) |
2010-2010 |
01 |
| 018 |
15822357 |
HANDLE, R/SEAT LAT REL (PART OF 26) (CASHMERE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963256) |
CK1, 2 (06) (AS3, 33I, 39I) (1ST DES) |
2010-2010 |
01 |
| 018 |
15822358 |
HANDLE, R/SEAT LAT REL (PART OF 26) (TITANIUM) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963257) |
CK1, 2 (06) (AS3, 83I) (1ST DES) |
2010-2010 |
01 |
| 018 |
20963256 |
HANDLE, R/SEAT LAT REL (PART OF 26) (CASHMERE) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15822357) |
CK1, 2 (06) (AS3, 33I, 39I) (2ND DES) |
2010-2010 |
01 |
| 018 |
22906161 |
HANDLE, R/SEAT LAT REL (PART OF 26) |
CK1 (06) (AS3, ULT, Z75, 415) |
2010-2013 |
01 |
| 019 |
25928520 |
LATCH, 3RD ROW SEAT BK (SIDE) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 020 |
15804483 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (REAR CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 19I, 84I) |
2010-2010 |
01 |
| 020 |
15804484 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (REAR CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2010-2010 |
01 |
| 020 |
22772286 |
COVER, 3RD ROW SEAT BK LAT (EBONY) |
CK1, 2 (06) (AS3, 19I, 84I) |
2010-2010 |
01 |
| 020 |
22772287 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) |
CK1, 2 (06) (AS3, 33I, 39I) |
2010-2010 |
01 |
| 020 |
22772289 |
COVER, 3RD ROW SEAT BK LAT (COCOA) |
CK1, 2 (06) (AS3, 41I) |
2010-2010 |
01 |
| 021 |
15898401 |
LATCH, 3RD ROW SEAT LOAD FLR (INCLS 43, 44) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 022 |
15804488 |
COVER, 3RD ROW SEAT BK LAT (EBONY) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 19I, 84I) |
2009-2012 |
01 |
| 022 |
15804489 |
COVER, 3RD ROW SEAT BK LAT (CASHMERE) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2012 |
01 |
| 022 |
15804490 |
COVER, 3RD ROW SEAT BK LAT (TITANIUM) (FRONT CLOSEOUT) (16.716) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 023 |
15804397 |
LATCH, 3RD ROW SEAT LOAD FLR (OUTBOARD REAR) |
CK1, 2 (06) (AS3) |
2007-2013 |
02 |
| 024 |
|
NUT, R/SEAT LAT |
|
2007-2013 |
|
| 025 |
15804404 |
CABLE, 3RD ROW SEAT BK LAT (LOCK OUT) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 026 |
20963267 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (EBONY) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 19I, 84I) |
2010-2010 |
02 |
| 026 |
20963268 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (CASHMERE) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 33I, 39I) |
2010-2010 |
02 |
| 026 |
20963269 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (TITANIUM) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 83I) |
2010-2010 |
02 |
| 026 |
20963270 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (COCOA) (50% MAIN CONTROL BOX) |
CK1 (06) (AS3, Z75, 415) |
2010-2010 |
02 |
| 026 |
15832238 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (EBONY) (W/PULL HANDLE) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 19I, 84I) |
2010-2010 |
01 |
| 026 |
15832239 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (CASHMERE) (W/PULL HANDLE) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 33I, 39I) |
2010-2010 |
01 |
| 026 |
15832240 |
CABLE, 3RD ROW SEAT BK LAT (INCLS 18) (TITANIUM) (W/PULL HANDLE) (50% MAIN CONTROL BOX) |
CK1, 2 (06) (AS3, 83I) |
2010-2010 |
01 |
| 027 |
15791115 |
FRAME, 3RD ROW SEAT CUSH |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 028 |
15822389 |
COVER, 3RD ROW SEAT BK HGE FIN (EBONY) (INBOARD, OUTER) |
CK1, 2 (06) (AS3, 19I) |
2007-2012 |
01 |
| 028 |
15822390 |
COVER, 3RD ROW SEAT BK HGE FIN (CASHMERE) (INBOARD, OUTER) |
CK1, 2 (06) (AS3, 33I, 39I) |
2007-2012 |
01 |
| 028 |
15822391 |
COVER, 3RD ROW SEAT BK HGE FIN (TITANIUM) |
CK1, 2 (06) (AS3, 83I) |
2007-2012 |
01 |
| 029 |
|
PIN, R/SEAT BK HGE PIV |
|
2007-2013 |
|
| 030 |
15832214 |
LEVER, R/SEAT RSR LAT REL |
CK1, 2 (06) (AS3) |
2007-2013 |
02 |
| 031 |
12476887 |
BOLT, 3RD ROW SEAT BK PIV (M10X1.5) (W/BUSHING) (16.679) |
CK1 (06) (AS3) |
2007-2011 |
02 |
| 032 |
15924950 |
COVER, 3RD ROW SEAT BK HGE FIN (EBONY) (PIVOT PROTECTOR) |
CK1, 2 (06) (AS3, 19I) |
2007-2012 |
01 |
| 032 |
15924951 |
COVER, 3RD ROW SEAT BK HGE FIN (CASHMERE) (PIVOT PROTECTOR) |
CK1, 2 (06) (AS3, 33I, 39I) (EXC 5T5) |
2007-2012 |
01 |
| 032 |
15924952 |
COVER, 3RD ROW SEAT BK HGE FIN (TITANIUM) (PIVOT PROTECTOR) |
CK1, 2 (06) (AS3, 83I) (EXC 5T5) |
2007-2012 |
01 |
| 033 |
15833812 |
RETAINER, R/SEAT CUSH FRM |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 034 |
25960398 |
FRAME, 3RD ROW SEAT BK |
K1 (06) (AQY, AS3, ULT, Z75) |
2009-2013 |
01 |
| 034 |
15898363 |
FRAME, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3) |
2008-2013 |
01 |
| 034 |
15898400 |
FRAME, 3RD ROW SEAT BK |
CK1, 2 (06) (AS3, AX4) (EXPORT) |
2008-2010 |
01 |
| 035 |
19152520 |
BELT KIT, R/SEAT #2 (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AS3, 83I) |
2008-2013 |
01 |
| 035 |
19180589 |
BELT KIT, R/SEAT #2 (BKL SI) (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) |
2008-2013 |
01 |
| 035 |
19152519 |
BELT KIT, R/SEAT #2 (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AS3, 33I, 39I) |
2008-2013 |
01 |
| 035 |
19152518 |
BELT KIT, R/SEAT #2 (BKL SI) (EBONY) (BKL/BKL) |
CK1 (06) (AS3, 19I) |
2010-2013 |
01 |
| 036 |
15804534 |
PAD, 3RD ROW SEAT CUSH |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 037 |
25858728 |
COVER, 3RD ROW SEAT CUSH (COCOA) |
CK1 (06) (AS3, ULT, Z75, 415) |
2008-2013 |
01 |
| 037 |
25937613 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, KB6, 196) |
2009-2013 |
01 |
| 037 |
25937614 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AS3, KB6, 336) |
2009-2013 |
01 |
| 037 |
25937615 |
COVER, 3RD ROW SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AS3, KB6, 836) |
2009-2013 |
01 |
| 037 |
20758148 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AS3, 33C) |
2009-2010 |
01 |
| 037 |
20904823 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AQY, AS3, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 037 |
20904825 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AQY, AS3, 33C) (EXC 5T5) |
2010-2013 |
01 |
| 037 |
22751182 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1 (06) (AS3, Z75, 394) (EXC AX4) |
2009-2013 |
01 |
| 037 |
25928470 |
COVER, 3RD ROW SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AS3, 333) |
2009-2013 |
01 |
| 037 |
20859434 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1 (06) (AS3, Z75, 194) |
2007-2010 |
01 |
| 037 |
25928469 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 19V) |
2007-2013 |
01 |
| 037 |
25928469 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 193) |
2007-2013 |
01 |
| 037 |
25928469 |
COVER, 3RD ROW SEAT CUSH (EBONY) |
CK1, 2 (06) (AS3, 19C, 5T5) |
2009-2013 |
01 |
| 037 |
25928471 |
COVER, 3RD ROW SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AS3, 833) |
2007-2013 |
01 |
| 038 |
20904829 |
COVER, 3RD ROW SEAT BK (EBONY) (W/CHILD SEAT BELT COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963297) |
CK1, 2 (06) (AS3, 19C) (EXC 5T5) (1ST DES) |
2010-2010 |
01 |
| 038 |
20904831 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/CHILD SEAT BELT COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963298) |
CK1, 2 (06) (AS3, 33C) (EXC 5T5) (1ST DES) |
2010-2010 |
01 |
| 038 |
20963280 |
COVER, 3RD ROW SEAT BK (EBONY) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15865793) |
CK1, 2 (06) (AS3, 19V, 193) (2ND DES) |
2010-2010 |
01 |
| 038 |
20963288 |
COVER, 3RD ROW SEAT BK (EBONY) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 20859428) |
CK1 (06) (AS3, Z75, 194) (2ND DES) |
2010-2010 |
01 |
| 038 |
20963289 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 20859429) |
CK1 (06) (AS3, Z75, 194) (2ND DES) |
2010-2010 |
01 |
| 038 |
20963297 |
COVER, 3RD ROW SEAT BK (EBONY) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 20904829) |
CK1, 2 (06) (AS3, 19C) (EXC 5T5) (2ND DES) |
2010-2010 |
01 |
| 038 |
15865793 |
COVER, 3RD ROW SEAT BK (EBONY) (INCLS CHILD COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963280) |
CK1, 2 (06) (AS3, 19V, 193) (1ST DES) |
2010-2010 |
01 |
| 038 |
20859428 |
COVER, 3RD ROW SEAT BK (EBONY) (INCLS CHILD COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963288) |
CK1 (06) (AS3, Z75, 194) (1ST DES) |
2010-2010 |
01 |
| 038 |
20859429 |
COVER, 3RD ROW SEAT BK (CASHMERE) (INCLS CHILD COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963289) |
CK1 (06) (AS3, Z75, 394) (1ST DES) |
2010-2010 |
01 |
| 038 |
20963298 |
COVER, 3RD ROW SEAT BK (CASHMERE) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 20904831) |
CK1, 2 (06) (AS3, 33C) (EXC 5T5) (2ND DES) |
2010-2010 |
01 |
| 038 |
20963300 |
COVER, 3RD ROW SEAT BK (COCOA) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 25858726) |
CK1 (06) (AS3, Z75, 415) (2ND DES) |
2010-2010 |
01 |
| 038 |
25858726 |
COVER, 3RD ROW SEAT BK (COCOA) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963300) |
CK1 (06) (AS3, Z75, 415) (1ST DES) |
2010-2010 |
01 |
| 038 |
15865793 |
COVER, 3RD ROW SEAT BK (EBONY) (INCLS CHILD COMFORT GUIDE) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963280) |
CK1, 2 (06) (AS3, 19C, 5T5) (1ST DES) |
2010-2010 |
01 |
| 038 |
20963280 |
COVER, 3RD ROW SEAT BK (EBONY) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15865793) |
CK1, 2 (06) (AS3, 19C, 5T5) (2ND DES) |
2010-2010 |
01 |
| 039 |
88936748 |
CAP, R/SEAT ADJR TRK END (BLACK) |
CK107 (06) (AS3, AX4) (EXPORT) |
2007-2013 |
02 |
| 040 |
15924919 |
PANEL, R/SEAT BK FIL |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 041 |
25784336 |
RETAINER, R/SEAT BK OPG FIN CVR (PUSH IN) (16.720) |
CK1, 2 (06) (AS3) |
2007-2012 |
06 |
| 042 |
15924917 |
WIRE, R/SEAT CUSH BRDR |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
| 043 |
|
BOLT, R/SEAT BK LAT REL HDL (PART OF 21) |
|
2007-2013 |
|
| 044 |
25895134 |
BAR, R/SEAT HGE LINK TIE (PART OF 21) |
CK1, 2 (06) (AS3) |
2007-2013 |
01 |
