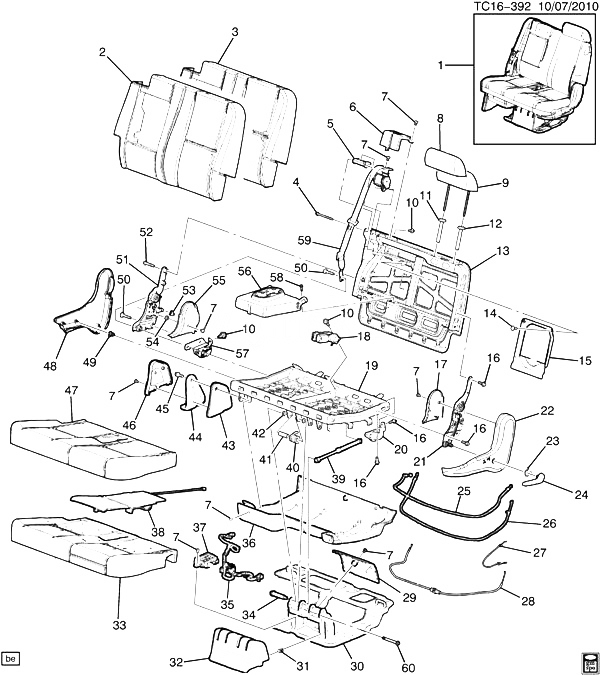

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15914185 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20959983) |
CK107 (06) (AM8, 19V) (1ST DES) |
2010-2010 |
01 |
| 001 |
15914185 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20959983) |
CK107 (06) (AM8, 19C, 5T5) (1ST DES) |
2010-2010 |
01 |
| 001 |
25835080 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960239) |
CK107 (06) (AM8, KA6, Z75, 194) (EXC ARS, AX4, HP2) (1ST DES) |
2010-2010 |
01 |
| 001 |
20905015 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960038) |
CK107 (06) (AM8, 19C) (EXC 5T5) (1ST DES) |
2010-2010 |
01 |
| 001 |
20905016 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960039) |
CK107 (06) (AM8, 33C) (1ST DES) |
2010-2010 |
01 |
| 001 |
20959983 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15914185) |
CK107 (06) (AM8, 19C, 5T5) (2ND DES) |
2010-2010 |
01 |
| 001 |
20959983 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 15914185) |
CK107 (06) (AM8, 19V) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960038 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 20905015) |
CK107 (06) (AM8, 19C) (EXC 5T5) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960039 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 20905016) |
CK107 (06) (AM8, 33C) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960237 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25908001) |
CK107 (06) (AM8, KA6, Z75, 394) (EXC ARS, AX4, HP2) (2ND DES) |
2010-2010 |
01 |
| 001 |
20960239 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25835080) |
CK107 (06) (AM8, KA6, Z75, 194) (EXC ARS, AX4, HP2) (2ND DES) |
2010-2010 |
01 |
| 001 |
25908001 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960237) |
CK107 (06) (AM8, KA6, Z75, 394) (EXC ARS, AX4, HP2) (1ST DES) |
2010-2010 |
01 |
| 001 |
20960273 |
SEAT, RR (CASHMERE) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25908009) |
CK107 (06) (AM8, AX4, KA6, Z75, 394) (EXC ARS, HP2) (2ND DES) (EXPORT) |
2010-2010 |
01 |
| 001 |
20960275 |
SEAT, RR (EBONY) (W/O PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 1ST DES SEE 25835182) |
CK107 (06) (AM8, AX4, KA6, Z75, 194) (EXC ARS, HP2) (2ND DES) (EXPORT) |
2010-2010 |
01 |
| 001 |
25835182 |
SEAT, RR (EBONY) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960275) |
CK107 (06) (AM8, AX4, KA6, Z75, 194) (EXC ARS) (1ST DES) (EXPORT) |
2010-2010 |
01 |
| 001 |
25908009 |
SEAT, RR (CASHMERE) (W/PLASTIC STANCHION COVER IN FLOOR CARPET) (FOR 2ND DES SEE 20960273) |
CK107 (06) (AM8, AX4, KA6, Z75, 394) (EXC ARS) (1ST DES) (EXPORT) |
2010-2010 |
01 |
| 002 |
15914202 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 19V) |
2007-2013 |
01 |
| 002 |
25908031 |
COVER, R/SEAT BK (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) |
2009-2013 |
01 |
| 002 |
25931384 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, KA6, KB6, 196) (EXC HP2) |
2009-2010 |
01 |
| 002 |
25931386 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 002 |
15865521 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865522 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15865523 |
COVER, R/SEAT BK (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC KB6) |
2009-2013 |
01 |
| 002 |
15914202 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2013 |
01 |
| 002 |
20905042 |
COVER, R/SEAT BK (EBONY) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 002 |
20905043 |
COVER, R/SEAT BK (CASHMERE) |
CK1, 2 (06) (AM8, 33C) |
2010-2013 |
01 |
| 002 |
20895601 |
COVER, R/SEAT BK (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) |
2007-2013 |
01 |
| 003 |
15291597 |
PAD, R/SEAT BK |
CK107, 109, 2 (06) (AM8, 193, 333, 833) |
2007-2013 |
01 |
| 003 |
22771058 |
PAD, R/SEAT BK |
CK107, 109, 2 (06) (AM8, 19C, 19V, 5T5) |
2007-2013 |
01 |
| 004 |
11562382 |
BOLT, HFH, M10X1.5X130, 26 THD, 22.3 OD, 10.9, 7114M, MACH, MAT-PT (R/SEAT BK FRM) |
|
2007-2013 |
01 |
| 005 |
15289969 |
BRACKET, RR CTR SEAT BELT RETR |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 006 |
15279450 |
PROTECTOR, R/SEAT SHLDR BELT (BLACK) |
CK1, 2 (06) |
2007-2013 |
01 |
| 007 |
11570116 |
SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2013 |
14 |
| 008 |
|
COVER, R/SEAT H/RST SUPT (PART OF 9) |
|
2008-2013 |
|
| 009 |
15824670 |
RESTRAINT, R/SEAT HD (INCLS 8) (TITANIUM) |
CK107 (06) (AM8, 833) |
2007-2010 |
02 |
| 009 |
15824670 |
RESTRAINT, R/SEAT HD (INCLS 8) (TITANIUM) |
CK107 (06) (AM8, 836) |
2009-2010 |
02 |
| 009 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK1 (06) (AM8, 394) |
2007-2010 |
02 |
| 009 |
25928791 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK1 (06) (AM8, 397) |
2009-2010 |
02 |
| 009 |
20758015 |
RESTRAINT, R/SEAT HD (INCLS 8) (TITANIUM) |
CK107 (06) (AM8, 83C) |
2009-2010 |
02 |
| 009 |
20905030 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK107 (06) (AM8, 19C) |
2010-2010 |
02 |
| 009 |
20905030 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK107 (06) (AM8, 19V) |
2010-2010 |
02 |
| 009 |
20905031 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK107 (06) (AM8, 33C) |
2010-2010 |
02 |
| 009 |
15865813 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK107 (06) (AM8, 193) |
2007-2010 |
02 |
| 009 |
15865813 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK107 (06) (AM8, 196) |
2009-2010 |
02 |
| 009 |
15824669 |
RESTRAINT, R/SEAT HD (INCLS 8) (CASHMERE) |
CK107 (06) (AM8, 33I) |
2009-2010 |
02 |
| 009 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK1 (06) (AM8, 194) (EXC AX4) |
2007-2010 |
02 |
| 009 |
25928790 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
CK1 (06) (AM8, 197) |
2009-2010 |
02 |
| 009 |
15824676 |
RESTRAINT, R/SEAT HD (INCLS 8) (EBONY) |
K107 (06) (AM8, AX4, 194) (EXPORT) |
2008-2010 |
02 |
| 010 |
11562383 |
BOLT, HFH, M12X1.75X30.5, 17 THD, 26.6 OD, 10.9 STL, GMW3359, W/ADH 6175M (R/SEAT LAT) |
|
2007-2013 |
03 |
| 011 |
20912675 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2 (06) (31I, 33I, 39I) |
2007-2013 |
02 |
| 011 |
15279347 |
GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2 (06) (19I) |
2007-2013 |
02 |
| 011 |
20912676 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06) (83I) |
2007-2013 |
02 |
| 012 |
20912680 |
GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06) (33I, 39I) |
2007-2013 |
02 |
| 012 |
15279353 |
GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06) (83I) |
2007-2013 |
02 |
| 013 |
15269762 |
FRAME, R/SEAT BK |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 014 |
15279408 |
PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
02 |
| 014 |
15279406 |
PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
02 |
| 014 |
15279407 |
PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2007-2013 |
02 |
| 015 |
15279471 |
COVER, R/SEAT A/RST SUPT FIN (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 015 |
15279469 |
COVER, R/SEAT A/RST SUPT FIN (EBONY) |
CK1, 2 (06) (AM8, 19I) |
2007-2013 |
01 |
| 015 |
15279470 |
COVER, R/SEAT A/RST SUPT FIN (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 016 |
11562378 |
BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
06 |
| 017 |
15279489 |
COVER, R/SEAT BK HGE FIN (EBONY) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2010 |
01 |
| 017 |
15279490 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2010 |
01 |
| 017 |
15279491 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (OUTBOARD, INNER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2010 |
01 |
| 018 |
19121589 |
BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) |
CK1, 2 (06) (AM8, 19I) |
2009-2013 |
01 |
| 018 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 018 |
19121592 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 019 |
15269764 |
FRAME, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 020 |
15275886 |
LATCH, R/SEAT RSR (O/B) |
CK107 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 020 |
15275887 |
LATCH, R/SEAT RSR (I/B) |
CK107 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 021 |
25896455 |
LATCH, R/SEAT BK (OUTBOARD) |
CK1, 2 (06) (AM8) (EXC HP2) |
2008-2013 |
01 |
| 022 |
15279479 |
COVER, R/SEAT BK HGE FIN (INCLS 49) (EBONY) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 19I) |
2007-2011 |
01 |
| 022 |
15279480 |
COVER, R/SEAT BK HGE FIN (INCLS 49) (CASHMERE) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 022 |
15279481 |
COVER, R/SEAT BK HGE FIN (INCLS 49) (TITANIUM) (OUTBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 023 |
|
RETAINER, R/SEAT ADJR RLR (PART OF 24) |
|
2008-2013 |
|
| 024 |
15279416 |
HANDLE, R/SEAT RECL (INCLS 23) (TITANIUM) |
CK1, 2 (06) (83I) |
2007-2013 |
01 |
| 024 |
15279414 |
HANDLE, R/SEAT RECL (INCLS 23) (EBONY) |
CK1, 2 (06) (19I) |
2007-2013 |
01 |
| 024 |
15279415 |
HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) |
CK1, 2 (06) (33I) |
2007-2013 |
01 |
| 024 |
25858332 |
HANDLE, R/SEAT RECL (INCLS 23) (COCOA) |
CK1 (06) (AM8, 41I) |
2009-2013 |
01 |
| 024 |
15279415 |
HANDLE, R/SEAT RECL (INCLS 23) (CASHMERE) |
CK1 (06) (39I) |
2007-2013 |
01 |
| 025 |
15275917 |
CABLE, R/SEAT LAT (INBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 026 |
25816396 |
CABLE, R/SEAT LAT (INBOARD) (MASTER SYNC) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 027 |
15275914 |
CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 028 |
25816395 |
CABLE, R/SEAT BK LAT (MASTER SYNC) |
CK1, 2 (06) (AM8) (EXC ARS, HP2) |
2007-2013 |
01 |
| 029 |
15279604 |
COVER, R/SEAT RSR FIN (EBONY) (REAR) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2010 |
01 |
| 029 |
15279605 |
COVER, R/SEAT RSR FIN (CASHMERE) (REAR) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2013 |
01 |
| 029 |
15279606 |
COVER, R/SEAT RSR FIN (TITANIUM) (REAR) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 030 |
22741876 |
RISER, R/SEAT |
CK107 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 031 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 32) |
|
2008-2013 |
|
| 032 |
15824753 |
COVER, R/SEAT RSR FIN (INCLS 31) (EBONY) (FRONT) |
CK107 (06) (AM8, 19I, 22I, 84I) (EXC HP2) |
2007-2013 |
01 |
| 032 |
15824754 |
COVER, R/SEAT RSR FIN (INCLS 31) (CASHMERE) (FRONT) |
CK107 (06) (AM8, 31I, 33I, 39I) (EXC HP2) |
2007-2013 |
01 |
| 032 |
15824755 |
COVER, R/SEAT RSR FIN (INCLS 31) (TITANIUM) (FRONT) |
CK107 (06) (AM8, 83I) (EXC HP2) |
2007-2013 |
01 |
| 033 |
15291599 |
PAD, R/SEAT CUSH |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 034 |
11571092 |
BOLT, R/SEAT HGE (M10X1.5X114) |
CK1, 2, 3 |
2007-2013 |
02 |
| 035 |
15843765 |
HARNESS, R/SEAT HTR |
CK1, 2 (06) (EXC HP2) |
2007-2010 |
01 |
| 036 |
15279551 |
PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) |
CK107 (06) (AM8, 83I) (EXC ARS, HP2) |
2007-2010 |
01 |
| 036 |
15279550 |
PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) |
CK107 (06) (AM8, 33I, 39I) (EXC HP2) |
2007-2010 |
01 |
| 036 |
22772246 |
PANEL, R/SEAT CUSH TR (EBONY) |
CK107 (06) (AM8, 19I) (EXC HP2) |
2007-2013 |
01 |
| 037 |
20933029 |
MODULE, R/SEAT HTR CONT |
CK1 (06) (AM8) |
2009-2013 |
01 |
| 037 |
25891512 |
MODULE, R/SEAT HTR CONT (REQUIRES DEALER PROGRAMMING) (11.558) |
CK1 (06) (KA1) |
2009-2011 |
01 |
| 038 |
20792750 |
HEATER, R/SEAT CUSH |
CK1, 2 (06) (KA6) |
2007-2013 |
01 |
| 039 |
15275905 |
STRUT, R/SEAT (USED ON 40% SIDE) |
CK1, 2 (06) (AM8) |
2007-2013 |
02 |
| 039 |
15930099 |
STRUT, R/SEAT (USED ON 60% SIDE) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 040 |
15275900 |
SPRING, R/SEAT RECL (TUMBLE) |
CK1, 2 (06) (AM8) |
2007-2013 |
01 |
| 041 |
15275902 |
SPRING, R/SEAT RECL (MANDREL) |
CK1, 2 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 042 |
11562380 |
BUSHING, R/SEAT HGE |
CK1, 2 (06) (AM8) |
2007-2013 |
08 |
| 043 |
15279591 |
COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 043 |
15279589 |
COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 19I) |
2007-2013 |
01 |
| 043 |
15279590 |
COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 33I, 39I) (EXC HP2) |
2008-2013 |
01 |
| 044 |
15269777 |
BRACKET, R/SEAT |
CK107 (06) (AM8) |
2007-2013 |
01 |
| 045 |
11562381 |
BOLT, R/SEAT BK LAT PIV (M12X1.75X40) |
CK1, 2 (06) (AM8) |
2007-2013 |
02 |
| 046 |
15279596 |
COVER, R/SEAT HGE LWR FIN (TITANIUM) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 046 |
15279594 |
COVER, R/SEAT HGE LWR FIN (EBONY) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 19I) |
2007-2013 |
01 |
| 046 |
15279595 |
COVER, R/SEAT HGE LWR FIN (CASHMERE) (PIVOT INBOARD) (16.674) |
CK107 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 047 |
15914206 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19V) |
2007-2013 |
01 |
| 047 |
25931390 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, KB6, 196) (EXC HP2) |
2009-2013 |
01 |
| 047 |
25931391 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, KB6, 336) (EXC HP2) |
2009-2013 |
01 |
| 047 |
25931392 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, KA6, KB6, 836) (EXC HP2) |
2009-2013 |
01 |
| 047 |
15865529 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 193) (EXC HP2, KB6) |
2009-2013 |
01 |
| 047 |
15865530 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 333) (EXC HP2, KB6) |
2009-2013 |
01 |
| 047 |
15865531 |
COVER, R/SEAT CUSH (TITANIUM) |
CK1, 2 (06) (AM8, 833) (EXC HP2, KB6) |
2009-2013 |
01 |
| 047 |
15914206 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C, 5T5) |
2009-2013 |
01 |
| 047 |
25899567 |
COVER, R/SEAT CUSH (EBONY) |
CK1 (06) (AM8, KA6, Z75, 194) (EXC HP2) |
2008-2013 |
01 |
| 047 |
20905036 |
COVER, R/SEAT CUSH (EBONY) |
CK1, 2 (06) (AM8, 19C) (EXC 5T5) |
2010-2013 |
01 |
| 047 |
20905037 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1, 2 (06) (AM8, 33C) |
2010-2013 |
01 |
| 047 |
20905440 |
COVER, R/SEAT CUSH (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 394) (EXC HP2) |
2009-2013 |
01 |
| 048 |
15279499 |
COVER, R/SEAT BK HGE FIN (INCLS 49) (EBONY) (INBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2010 |
01 |
| 048 |
15279500 |
COVER, R/SEAT BK HGE FIN (INCLS 49) (CASHMERE) (INBOARD, OUTER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2013 |
01 |
| 048 |
15279501 |
COVER, R/SEAT LAT FIN (INCLS 49) (TITANIUM) (INBOARD, OUTER) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 049 |
|
RETAINER, R/SEAT FLR FIL T/PNL (PART OF 22, 48) |
|
2008-2013 |
|
| 050 |
11562376 |
SCREW, PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
02 |
| 051 |
25896456 |
LATCH, R/SEAT BK (INBOARD) |
CK107 (06) (AM8, KA6) (EXC HP2) |
2008-2013 |
01 |
| 052 |
11562377 |
BOLT, HFH, M10X1.5X55, 43.45 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2013 |
02 |
| 053 |
15279464 |
KNOB, R/SEAT LAT (EBONY) (16.716) (W/O NUMBER LABELS ON 3RD ROW SEAT) (FOR 2ND DES SEE 20963265) |
CK1, 2, 3 (1ST DES) |
2010-2010 |
02 |
| 053 |
20963265 |
KNOB, R/SEAT LAT (EBONY) (INNER) (W/NUMBER LABELS ON 3RD ROW SEAT) (FOR 1ST DES SEE 15279464) |
CK1, 2 (06) (2ND DES) |
2010-2010 |
02 |
| 054 |
11562384 |
NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) |
|
2007-2013 |
02 |
| 055 |
15279525 |
COVER, R/SEAT BK HGE FIN (EBONY) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 19I, 22I, 84I) |
2007-2013 |
01 |
| 055 |
15279526 |
COVER, R/SEAT BK HGE FIN (CASHMERE) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 31I, 33I, 39I) |
2007-2010 |
01 |
| 055 |
15279527 |
COVER, R/SEAT BK HGE FIN (TITANIUM) (INBOARD, INNER) (16.674) |
CK107 (06) (AM8, 83I) |
2007-2013 |
01 |
| 056 |
15275854 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, Z75, Z88, 194, 197) |
2008-2013 |
01 |
| 056 |
15913989 |
ARMREST, R/SEAT (TITANIUM) (W/CUP HOLDER) |
CK1, 2 (06) (AM8, 19C) |
2010-2013 |
01 |
| 056 |
20904932 |
ARMREST, R/SEAT (TITANIUM) (W/CUP HOLDER) |
CK1, 2 (06) (AM8, 83C) |
2010-2010 |
01 |
| 056 |
20904933 |
ARMREST, R/SEAT (CASHMERE) (W/CUP HOLDER) |
CK1, 2 (06) (AM8, 33C) |
2010-2013 |
01 |
| 056 |
15865495 |
ARMREST, R/SEAT (TITANIUM) |
CK1, 2 (06) (AM8, 833, 836) |
2007-2013 |
01 |
| 056 |
15865493 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, 196, 846) |
2009-2013 |
01 |
| 056 |
15865493 |
ARMREST, R/SEAT (EBONY) |
CK1, 2 (06) (AM8, 193) |
2009-2013 |
01 |
| 056 |
15865494 |
ARMREST, R/SEAT (CASHMERE) |
CK1, 2 (06) (AM8, 333, 336) |
2009-2013 |
01 |
| 056 |
15275855 |
ARMREST, R/SEAT (CASHMERE) |
CK1, 2 (06) (AM8, KA6, Z75, 394) (EXC HP2) |
2009-2013 |
01 |
| 057 |
15275887 |
LATCH, R/SEAT RSR (I/B) |
CK107 (06) (AM8) (EXC HP2) |
2007-2013 |
01 |
| 058 |
11562386 |
BOLT, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT A/RST) |
|
2007-2013 |
AR |
| 059 |
19151106 |
BELT KIT, R/SEAT CTR (RETR SI) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2013 |
01 |
| 059 |
19151105 |
BELT KIT, R/SEAT CTR (RETR SI) (CASHMERE) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2013 |
01 |
| 059 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (EBONY) |
CK107 (06) (AM8, 84I) |
2009-2010 |
01 |
| 059 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (EBONY) |
CK107 (06) (AM8, 19I) |
2009-2010 |
01 |
| 060 |
11570031 |
PIN, R/SEAT HGE (6 X 1 X 78) |
CK1, 2 (06) |
2007-2013 |
01 |
| 060 |
11570032 |
PIN, R/SEAT HGE (6 X 1 X 98) |
CK1, 2 (06) |
2007-2013 |
01 |
