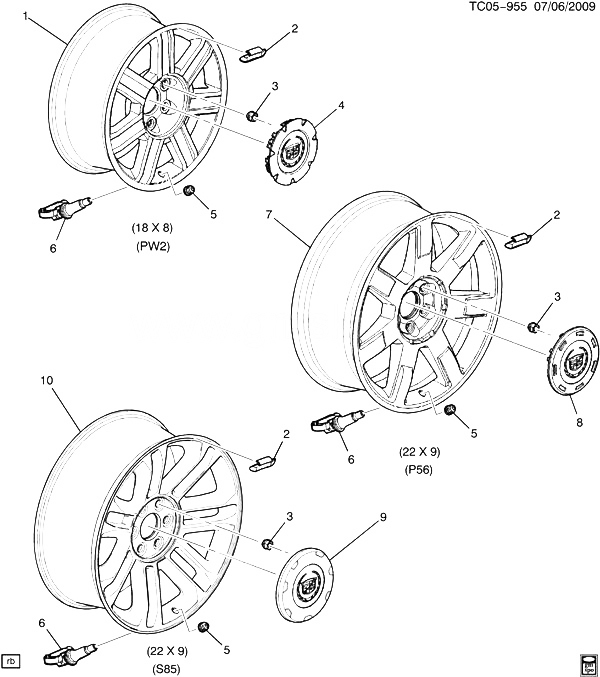

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
09595459 |
WHEEL, 18X8 (ALUM) (MACHINED) |
CK1 (PW2, Z75) |
2010-2011 |
04 |
| 002 |
19209740 |
WEIGHT, WHL BAL (CLIP-ON REPLACEMENT) (TRIM AS REQUIRED) (WHL BAL) |
|
2010-2011 |
AR |
| 003 |
09595174 |
NUT, WHL (M14X1.5) (NON-DECORATIVE LARGE CONE) |
CK1 (N87, PW2, P41, P56, P58, RCS, RPP, S80, S83, S85) |
2010-2010 |
24 |
| 004 |
09595473 |
CAP, HUB (PLASTIC) |
CK1 (PW2) |
2010-2011 |
04 |
| 005 |
25858636 |
CAP, TIRE PRESS IND SEN (BLACK) (ACDelco #25858636) |
CK1, 2, 3 |
2010-2011 |
04 |
| 006 |
20923680 |
SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE VALVE STEM PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (INCLS 5) (SNAP IN) (INCLS BLACK VALVE CAP) (ACDelco #20923680) (ALL NON HIGH-PERF APPS PREV SERVD W/MET STEM NOW SERVD W/RUB STEM) |
CK1, 2, 3 (UJ6) (EXC E29) |
2010-2010 |
04 |
| 007 |
09598755 |
WHEEL, 22X9.0 (ALUM) (31MM O/S 139.7X6XM14 B/C) (CHROME) |
CK1 (P56, Z75) |
2010-2011 |
04 |
| 007 |
88966249 |
WHEEL, 22X9.0 (ALUM) (INCLS 1 WHL 88966249 TAG) (SINGLE 20.8KGS) (INSTALL .25) (ALUM) (CHROME) (5.803) |
CK1 (Z75) |
2010-2011 |
04 |
| 008 |
09595473 |
CAP, HUB (PLASTIC) |
CK1 (PW2) |
2010-2011 |
04 |
| 008 |
09596007 |
CAP, HUB (PLASTIC) |
CK1 (RCS) |
2010-2011 |
04 |
| 008 |
09598677 |
CAP, HUB (EMBLEM WREATH CREST ARE PAINTED) (USED ON WHEEL W/OUT ALIGNMENT NOTCH) |
CK1 (P56, S85) |
2010-2011 |
04 |
| 009 |
09598677 |
CAP, HUB (EMBLEM WREATH CREST ARE PAINTED) (USED ON WHEEL W/OUT ALIGNMENT NOTCH) |
CK1 (P56, S85) |
2010-2011 |
04 |
| 010 |
09597224 |
WHEEL, 22X9.0 (ALUM) (31MM O/S 139.7X6 B/C) (CHROME) |
CK1 (S85) |
2010-2011 |
04 |
| 010 |
88966249 |
WHEEL, 22X9.0 (ALUM) (INCLS 1 WHL 88966249 TAG) (SINGLE 20.8KGS) (INSTALL .25) (ALUM) (CHROME) (5.803) |
CK1 (Z75) |
2010-2011 |
04 |
