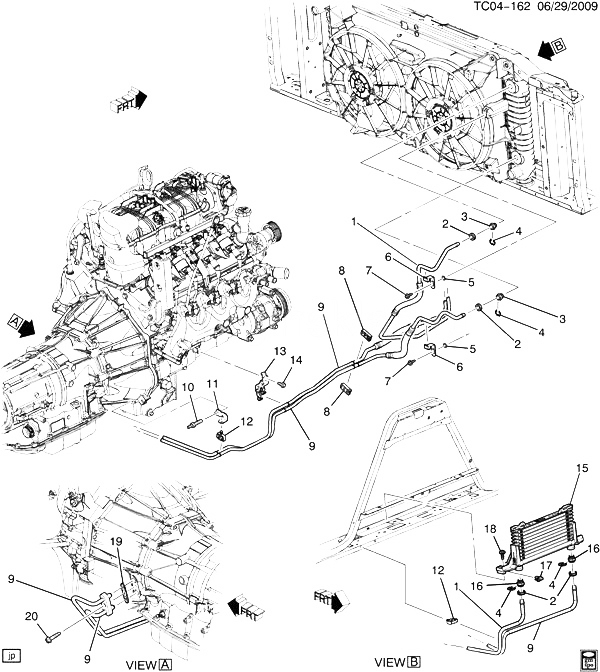

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15779543 |
PIPE, TRANS FLUID AUX CLR INL (INCLS 2, 5-7) (ACDelco #15779543) |
CK1 (06-36) (LC9, LMG, L9H, L94, MYC, M30, KNP) |
2010-2010 |
01 |
| 002 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 9) (PLASTIC RETAINER) (ACDelco #15052228) |
CK1, 2, 3 |
2009-2013 |
02 |
| 003 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (INCLS 4) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) |
CK1, 2, 3 (MYC, MYD, M30) |
2009-2013 |
02 |
| 004 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 3, 15, 16) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
CK1 (L20, L94) |
2010-2013 |
01 |
| 005 |
11609738 |
NUT, PUSH ON, M6X1, 12.7 OD, 2.18 THK, SAE 1050 STL, GMW3200. (PART OF 1, 9) (8.921) |
|
2009-2013 |
02 |
| 006 |
15782677 |
CLIP, TRANS FLUID CLR PIPE (PART OF 1, 9) (ACDelco #15782677) |
CK1 (LC9, LMG, LU3, L20, L9H, L94) |
2010-2013 |
01 |
| 007 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 1, 9) |
|
2009-2013 |
02 |
| 008 |
15068848 |
SPACER, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP, PLASTIC) |
CK1, 2, 3 (MYC, MYD) |
2009-2013 |
01 |
| 009 |
25999420 |
PIPE, TRANS FLUID CLR (INCLS 2, 5-7, 19) (ACDelco #25999420) |
CK1 (06-36) (LC9, LMG, L9H, L94, MYC, KNP) |
2010-2010 |
01 |
| 010 |
11519797 |
STUD, TRANS (DOUBLE END, HFH, M8X1.25X20, M10X1.5X40, 18 OD, 69.5 TL9.8, GMW3359) |
CK1, 2, 3 (MYC, MYD, M30, M99) |
2009-2013 |
06 |
| 011 |
15120618 |
BRACKET, TRANS FLUID CLR PIPE (ACDelco #15120618) |
CK1, 2, 3 (MYC, MYD) |
2009-2013 |
01 |
| 012 |
15049288 |
CLIP, TRANS FLUID CLR PIPE (BLACK) (37.7X39.3) (DOUBLE SNAIL CLIP) (ACDelco #15049288) |
CK1, 2, 3 |
2009-2013 |
01 |
| 013 |
15022958 |
CLIP, TRANS FLUID CLR PIPE (RETAINS 9.5MM STL TUBING) (2.343) |
CK1, 2, 3 (LC9, LMG, L20, L9H, L94) |
2010-2013 |
01 |
| 014 |
11516521 |
BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR PIPE CLIP) |
|
2009-2013 |
01 |
| 015 |
20880895 |
COOLER, TRANS FLUID AUX (CODE 4639, 5464, 9344, 7192, 1509, 0895, 7162) (INCLS 4, 16, 17) (TRUCKS W/2PC STEEL BRACKETS ALSO REQ 11519377 BOLT QTY 2) (ACDelco #20880895) |
CK1 (MYC, MYD, M30, KNP) |
2010-2013 |
01 |
| 016 |
19210848 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 15) (INCLS 4) (W/O BEVEL WASHER) (ACDelco #19210848) |
CK1, 2, 3 (MYC, MYD, M30, KNP) |
2009-2013 |
02 |
| 017 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 15) |
|
2009-2013 |
02 |
| 018 |
11519377 |
BOLT, HEX HD W/FL WA, M6X1X28, 18.15 THD, 17 OD, 8.8 STEEL, GMW3359 (TRANS FLUID AUX CLR) |
|
2009-2013 |
02 |
| 019 |
15251488 |
SEAL, TRANS FLUID CLR PIPE (PART OF 9) (SEALS TWO PIPES) (ACDelco #15251488) |
CK1 (MYC) |
2009-2013 |
02 |
| 020 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE) |
|
2009-2013 |
01 |
