| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

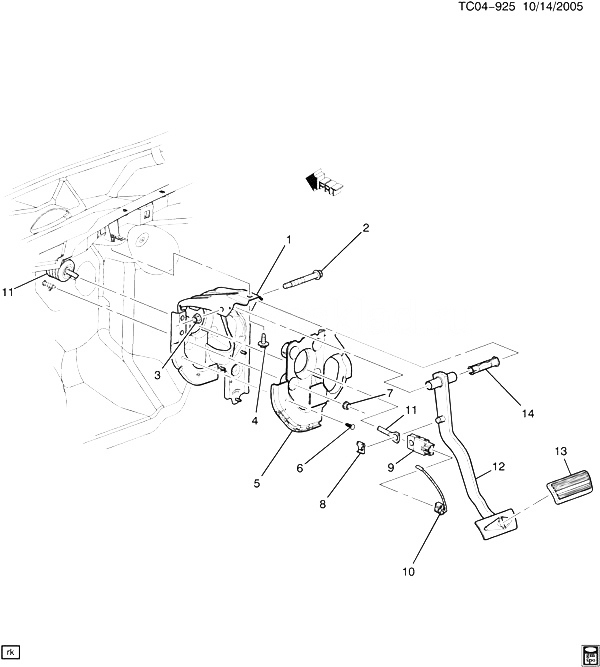

| 001 |
15713209 |
BRACKET, BRK ACCEL PED (INCLS 5, 6) (L=45 W=80 H=80) (DASH PANEL) (0.829) |
CK1, 2, 3 |
2008-2010 |
01 |
| 001 |
15713209 |
BRACKET, BRK ACCEL PED (INCLS 5, 6) (L=45 W=80 H=80) (DASH PANEL) (0.829) |
CK1, 2, 3 |
2008-2010 |
01 |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (INCLS 5, 6) (LWR PLNM PNL) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2010 |
01 |
| 001 |
25863989 |
BRACKET, BRK ACCEL PED (INCLS 5, 6) (LWR PLNM PNL) (4.634) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2010 |
01 |
| 002 |
15000145 |
BOLT, BRK PED PIV (12X1.75X120, 25) |
CK1, 2, 3 |
2007-2010 |
01 |
| 003 |
11514598 |
NUT, BRK PED PIV (M12X1.75X12, 26 OD) (8.915) |
CK1, 2, 3 |
2007-2010 |
01 |
| 004 |
11517182 |
BOLT, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2007-2010 |
01 |
| 005 |
|
INSULATOR, DA PNL (PART OF 1) |
|
2007-2010 |
|
| 006 |
|
RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) |
|
2007-2010 |
|
| 007 |
11517996 |
NUT, P/B BOOS (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
CK1, 2, 3 |
2007-2010 |
04 |
| 008 |
11569844 |
RETAINER, BRK PED PUSH ROD (WITH BOLT) |
CK1, 2, 3 |
2007-2010 |
01 |
| 009 |
25981009 |
SWITCH, S/LP (ACDelco #D1539J) |
CK1 |
2010-2010 |
01 |
| 010 |
|
HARNESS, FUSE BLK WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2010 |
|
| 011 |
|
BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2010 |
|
| 012 |
15906963 |
PEDAL, BRK (INCLS 13) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2010 |
01 |
| 013 |
15706042 |
PAD, BRK PED (PART OF 12) |
CK1 (JD9, JF3, JF7) (EXC JF4) |
2008-2010 |
01 |
