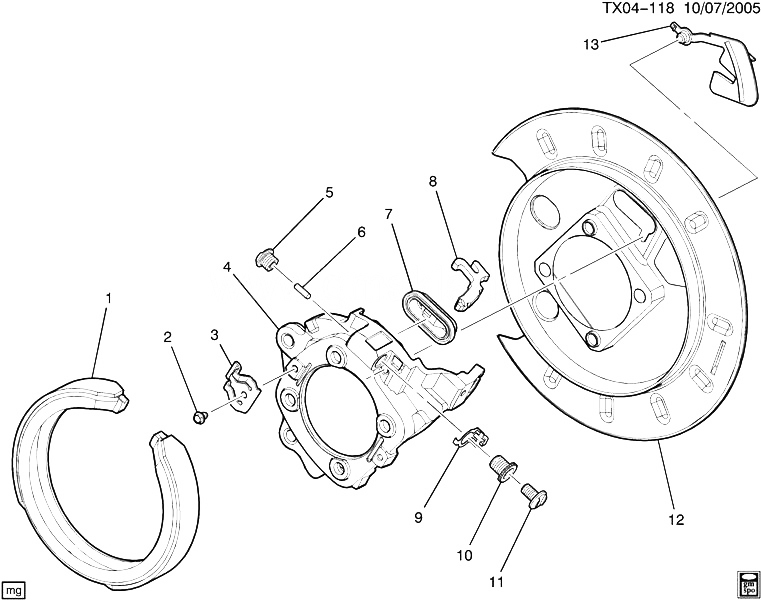

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SHOE, RR PARK BRK (*KIT2) |
|
2008-2013 |
|
| 002 |
|
BOLT, PARK BRK (*KIT2) |
|
2008-2013 |
|
| 003 |
|
SPRING, RR PARK BRK SHOE HOLDN (*KIT2) |
|
2008-2013 |
|
| 004 |
15265913 |
ANCHOR, RR PARK BRK |
CK1 |
2009-2013 |
02 |
| 005 |
|
ACTUATOR, PARK BRK (*KIT1) |
|
2008-2013 |
|
| 006 |
|
ROD, RR PARK BRK ACTR LVR PUSH (*KIT1) |
|
2008-2013 |
|
| 007 |
|
BOOT, PARK BRK LVR (*KIT3) |
|
2008-2013 |
|
| 008 |
|
LEVER, RR PARK BRK (*KIT3) |
|
2008-2013 |
|
| 009 |
|
SPRING, RR PARK BRK ACTR RTN (*KIT1) |
|
2008-2013 |
|
| 010 |
|
PAWL, PARK BRK LVR REL (*KIT1) |
|
2008-2013 |
|
| 011 |
|
NUT, RR PARK BRK ADJ (*KIT1) |
|
2008-2013 |
|
| 012 |
25877333 |
PLATE, RR PARK BRK ANC BKG (ACDelco #25877333) |
CK1 (JD9, J92) |
2010-2013 |
02 |
| 013 |
|
COVER, RR PARK BRK ADJ OPG (*KIT3) |
|
2008-2013 |
|
| K01 |
15817021 |
ADJUSTER KIT, RR PARK BRK (INCLS 5, 6, 9-11) |
CK1 (JD9, J92) |
2009-2010 |
02 |
| K02 |
15817020 |
SHOE KIT, RR PARK BRK (INCLS 1-3) (SERVICES ONLY ONE SIDE) (ACDelco #171-0992) |
CK1 (JD9, J92) |
2009-2013 |
02 |
| K03 |
15816927 |
LEVER KIT, RR PARK BRK ACTR (INCLS 7, 8, 13) (4.591) |
CK1 (JD9, J92) |
2009-2013 |
02 |
