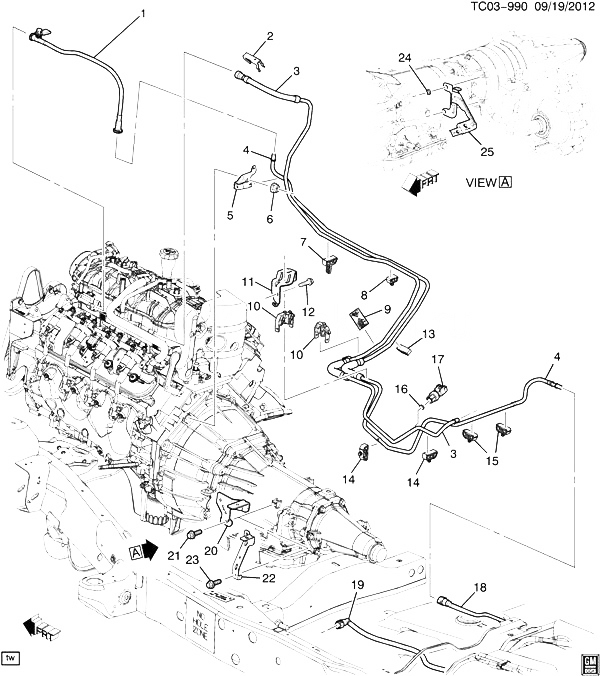

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12617169 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1, 2, 3 (LC9, LMG, LY6, L20, L9H, L94, L96) |
2010-2010 |
01 |
| 002 |
22695614 |
RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE) |
CK1, 2, 3 (LC9, LMG, LMK, LU3, LY6, LZ1, L20, L9H, L94, L96) |
2010-2010 |
01 |
| 003 |
15946243 |
HOSE, FUEL FEED (INCLS 14) (*KIT1) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2010 |
01 |
| 004 |
15946264 |
HOSE, EVAP EMIS (INCLS 15) (*KIT1) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2011 |
01 |
| 005 |
15085402 |
BRACKET, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2010 |
01 |
| 006 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 007 |
15168648 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) (*KIT1) |
CK1, 2 (06-36) |
2008-2010 |
01 |
| 008 |
15085405 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) (*KIT1) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2010 |
01 |
| 009 |
|
LABEL, FUEL FEED PIPE WRNG (*KIT1) |
|
2010-2010 |
|
| 010 |
15085404 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) (*KIT1) |
CK1 (06) (LMG, L9H, L94) |
2010-2010 |
02 |
| 011 |
15126012 |
BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP (*KIT1) |
CK1 (06-36) |
2008-2013 |
01 |
| 012 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) (ACDelco #11570082) |
|
2008-2013 |
01 |
| 013 |
15168649 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) (*KIT1) |
CK1, 2, 3 |
2008-2013 |
03 |
| 014 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 3) (2 TUBE) (FUEL LINE) (*KIT1) |
CK1 (06-36) (LMG, L94) |
2010-2010 |
01 |
| 015 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 4) (2 TUBE) (FUEL LINE) (*KIT1) |
CK1 (06-36) (LMG, L94, L9H) |
2010-2010 |
01 |
| 016 |
15778699 |
SEAL, FUEL PRESS SEN (O RING) (*KIT1) (ACDelco #15778699) |
CK1 |
2008-2013 |
01 |
| 017 |
13500745 |
SENSOR, FUEL PRESS (PART OF FUEL LINE) (*KIT1) (3.682) (ACDelco #13500745) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2010 |
01 |
| 017 |
13500745 |
SENSOR, FUEL PRESS (PART OF FUEL LINE) (*KIT1) (ACDelco #13500745) |
CK1 (06-36) (LMG, L9H, L94) |
2010-2010 |
01 |
| 018 |
|
HOSE, EVAP EMIS CNSTR PURGE (SEE GROUP 03.000 FUEL SUPPLY SYSTEM-REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 019 |
|
HOSE, FUEL FEED (SEE GROUP 03.000 FUEL SUPPLY SYSTEM-REAR FOR DETAILED ILLUSTRATED VIEW) (*KIT1) |
|
2008-2013 |
|
| 021 |
11516703 |
BOLT, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) |
|
2008-2013 |
01 |
| 022 |
15124945 |
BRACKET, FUEL FEED RTN FRT HOSE |
CK1 (MYC, MYD) |
2010-2010 |
01 |
| 023 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUEL FEED RTN FRT HOSE BRKT) |
|
2008-2013 |
01 |
| 024 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) |
|
2008-2013 |
06 |
| 025 |
15033698 |
BRACKET, FUEL FEED RTN PIPE |
K1 |
2008-2013 |
01 |
| K01 |
20916673 |
HOSE, FUEL FEED EVAP EMIS RTN (INCLS 3-5, 7-11, 13-17) |
CK1 (06-36) (LMG, L94) |
2010-2012 |
01 |
