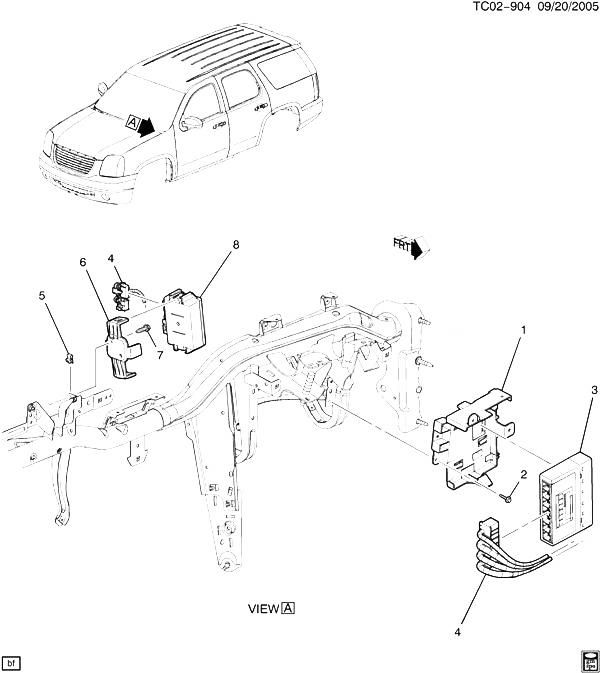

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15093913 |
BRACKET, BCM |
CK1, 2, 3 |
2007-2013 |
01 |
| 002 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (BCM BRKT) (9.665) |
|
2007-2013 |
03 |
| 003 |
25835966 |
MODULE, BODY CONT (ACDelco #25835966) |
CK1, 2, 3 |
2007-2011 |
01 |
| 003 |
25835966 |
MODULE, BODY CONT (2.560) (ACDelco #25835966) |
CK1, 2, 3 |
2007-2011 |
01 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (I/P EXTN) (ACDelco #11513599) |
|
2007-2013 |
02 |
| 006 |
15801751 |
BRACKET, I/P CARR LOC PIN |
CK1 (HP2) |
2008-2013 |
01 |
| 006 |
15801751 |
BRACKET, I/P CARR LOC PIN |
CK1 (T79) (EXPORT) |
2007-2013 |
01 |
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P (TO RET)) (9.665) |
|
2007-2013 |
02 |
| 008 |
25883951 |
MODULE, SERIAL DATA GATEWAY (W/O CALN OPERG SYS) |
CK1 (HP2) |
2008-2013 |
01 |
| 008 |
25843242 |
MODULE, AUX BODY CONT (ACDelco #25843242) |
K1 (T79) (EXPORT) |
2009-2013 |
01 |
