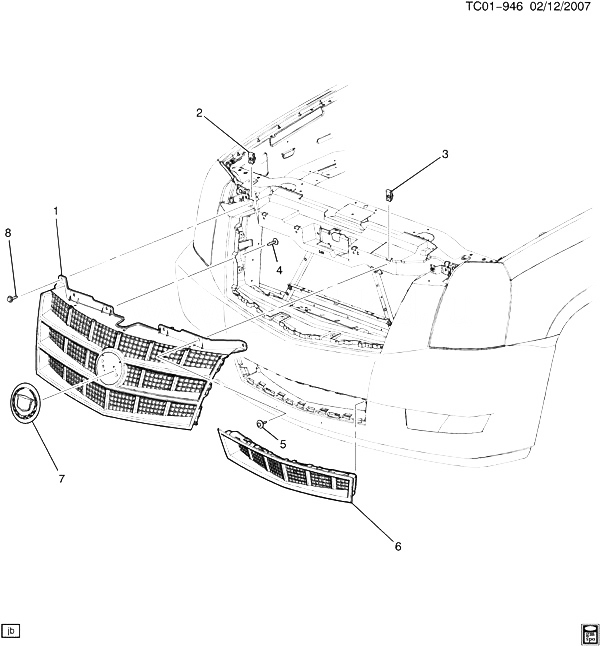

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22860588 |
GRILLE, FRT UPR (INCLS 4, 7) (SILVER) |
CK1 (06) (VGD, ULT, Z75) |
2008-2010 |
01 |
| 002 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT UPR GRL) |
|
2008-2013 |
02 |
| 003 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT GRL UPR BRKT) |
|
2008-2013 |
08 |
| 004 |
22549046 |
SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (PART OF 1) |
|
2008-2013 |
26 |
| 005 |
11589039 |
BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT GRL SUPT REINF) |
|
2008-2013 |
08 |
| 006 |
25957702 |
GRILLE, FRT LWR (SILVER) |
CK1 (06) (VGD, ULT, Z75) |
2008-2010 |
01 |
| 007 |
22860589 |
EMBLEM, FRT GRL (PART OF 1) (MEDALLION) |
CK1 (06) (ULT, Z75) (EXC T84) |
2009-2013 |
01 |
| 008 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT UPR GRL) |
|
2008-2013 |
02 |
