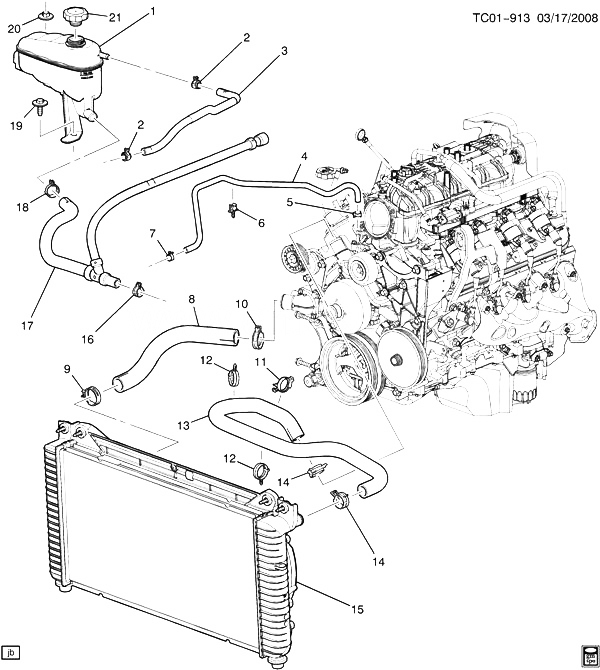

(TC01-913) 2010 CK1 ШЛАНГИ РАДИАТОРА (L20/4.8A,LMG/5.3-0,LC9/5.3-3,L94/6.2F) CADILLAC - ESCALADE (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22797286 TANK, RAD SURGE (ACDelco #22797286) CK1, 2, 3 (LC9, LMG, LU3, LY6, L20, L9H, L94, L96) 2010-2010 01
002 15012559 CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED 20 (RAD SURGE TK INL HOSE) (1.240) 2007-2013 02
003 22827733 HOSE, RAD SURGE TK INL CK1, 2, 3 (LC9, LMG, LU3, LY6, L20, L9H, L94, L96) 2010-2010 01
004 22827734 HOSE, RAD VENT INL CK1 (LC9, LMG, LZ1, L20, L9H, L94) 2010-2010 01
005 15734742 CLAMP, RAD SURGE TK ENG HOSE (13-16MM DIA RANGE) CK1, 2, 3 2007-2012 01
006 15041309 CLIP, RAD VENT INL HOSE CK1, 2, 3 2007-2013 01
007 15004599 CLAMP, RAD SURGE TK ENG HOSE (BLACK) (15MM OD 17.2MM) CK1, 2, 3 2007-2012 01
008 22827735 HOSE, RAD OTLT CK1, 2, 3 (L20, LZ1, L94) 2010-2010 01
009 11571140 CLAMP, SPRINGBAND, 16 DIA, 15 WIDTH, STL PER GM6298M, GMW14083 (RAD OTLT HOSE RAD) 2007-2013 01
010 11562099 CLAMP, SPRINGBAND, NOMINAL DIA 49MM, 20 WIDTH, MATL 6298M, ROBO FINISH (RAD OTLT HOSE END) 2007-2013 01
011 15041307 CLIP, RAD SURGE TK INL HOSE (PART OF 13) (BLACK) (FOR 37.1-44 DIA HOSE 12.8-15 DIA HOSEPRONG FOR 8.0 HOLE) CK1 (LC9, LMG, L20, L9H, L94) 2010-2013 01
012 15159494 CLIP, RAD INL HOSE (PART OF 13) (PUSH-IN CLIP 37-44 DIA 12.8 DIA) CK1 (LZ1, L20, L94) 2010-2013 02
013 22827731 HOSE, RAD INL (INCLS 11, 12) CK1 (L94, L20) 2010-2011 01
014 11570618 CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) 2007-2013 02
015 RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) 2010-2010
016 11570616 CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (RAD SURGE TK OTLT HOSE) 2007-2013 01
017 15834772 HOSE, RAD SURGE TK OTLT CK1, 2, 3 (LC9, LMG, L20, L9H, L94) (EXC C36) 2010-2013 01
017 15834773 HOSE, RAD SURGE TK OTLT CK1, 2 (06) (LC9, LMG, L20, L9H, L94, L96, C36) 2010-2013 01
018 15012561 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (RAD SURGE TK OTLT HOSE) (8.948) 2007-2013 01
019 11609982 BOLT, HEX W/FL WA, M6X1X22, 14.55 THD, 24 OD, 8.8, GMW3359, M-PT. (RAD SURGE TK) 2007-2013 01
020 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RAD SURGE TK) 2007-2013 01
021 13502353 CAP, RAD SURGE TK CK1, 2, 3 2007-2013 01
