| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

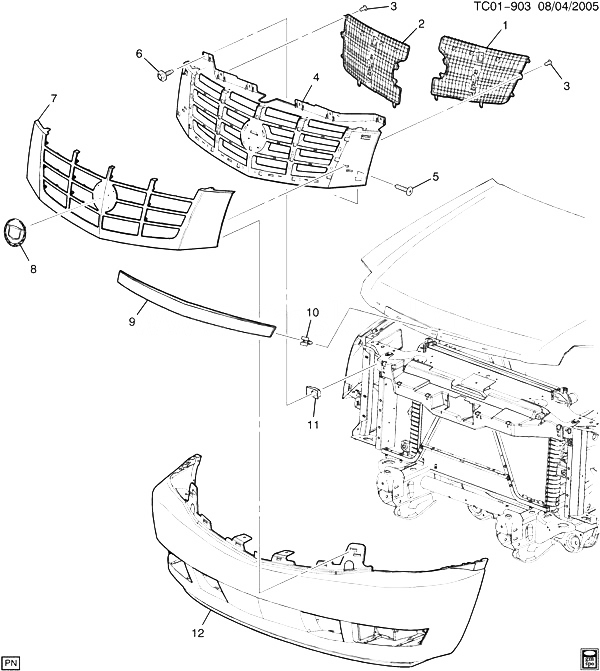

| 001 |
|
INSERT, FRT GRL (PART OF 7) |
|
2009-2013 |
|
| 002 |
|
INSERT, FRT GRL (PART OF 7) |
|
2009-2013 |
|
| 003 |
|
RIVET, FRT GRL (PART OF 7) |
|
2009-2013 |
|
| 004 |
|
GRILLE, FRT INR (PART OF 7) |
|
2009-2013 |
|
| 005 |
25705182 |
BOLT, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249) |
CK1 (06-36) |
2009-2013 |
AR |
| 006 |
11610055 |
BOLT, HWASH, M6X1X23 (FRT BPR UPR FASCIA) |
|
2009-2013 |
06 |
| 007 |
20824262 |
GRILLE, FRT (INCLS 1-4, 8) (LABYRINTH) |
CK1 (06) (GGW, T84, VGD, Z75) (EXPORT) |
2010-2010 |
01 |
| 007 |
25841844 |
GRILLE, FRT (INCLS 1-4, 8) (CARBON FLASH) |
CK1 (06) (T84, VGD, Z75, 58U) (EXPORT) |
2009-2010 |
01 |
| 007 |
20824260 |
GRILLE, FRT (INCLS 1-4, 8) (GRAY) |
CK1 (06) (T84, VGD, Z75, 46U) (EXPORT) |
2009-2010 |
01 |
| 007 |
20824259 |
GRILLE, FRT (INCLS 1-4, 8) (RED) |
CK1 (06) (T84, VGD, Z75, 80U) (EXPORT) |
2009-2010 |
01 |
| 007 |
22860569 |
GRILLE, FRT (INCLS 1-4, 8) (WHITE) |
CK1 (06) (T84, VGD, Z75, 98U) (EXPORT) |
2009-2010 |
01 |
| 007 |
22860570 |
GRILLE, FRT (INCLS 1-4, 8) (BLACK) |
CK1 (06) (T84, VGD, Z75, 01U, 41U) (EXPORT) |
2009-2010 |
01 |
| 007 |
22860571 |
GRILLE, FRT (INCLS 1-4, 8) (GOLD) |
CK1 (06) (T84, VGD, Z75, 51U) (EXPORT) |
2009-2010 |
01 |
| 007 |
19260456 |
GRILLE, FRT (INCLS 1-4, 8) (SILVER) |
CK1 (06) (GGZ, T84, VGD, Z75) (EXPORT) |
2010-2010 |
01 |
| 008 |
22860587 |
EMBLEM, FRT GRL (PART OF 7) (WREATH/CREAST) |
CK1 (06) (T84, Z75) (EXPORT) |
2009-2013 |
01 |
| 009 |
15907251 |
MOLDING, HOOD FRT (INCLS 10) (CHROME) |
CK1 (06-36) (T84, ULT, Z75) (EXPORT) |
2009-2013 |
01 |
| 010 |
11561788 |
CLIP, 13X15X12, 1.5 PNL, 1050, 6280M (PART OF 9) |
|
2009-2013 |
07 |
| 011 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT GRL UPR BRKT) |
|
2009-2013 |
08 |
| 012 |
|
FASCIA, FRT BPR (SEE GROUP 07.000 BUMPER/FRONT FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) |
|
2009-2013 |
|
