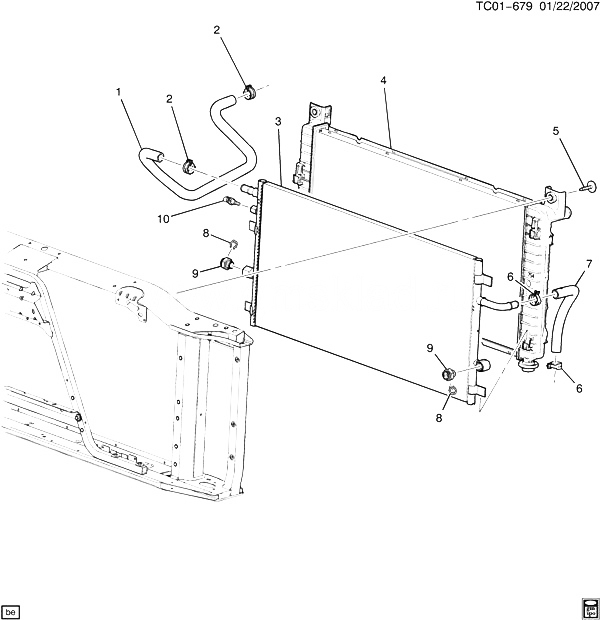

(TC01-679) 2008-2013 CK107(06) СИСТЕМА ОХЛАЖДЕНИЯ-КРЕПЛЕНИЕ РАДИАТОРА (HYBRID HP2) CADILLAC - ESCALADE (AWD) 2010
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 002 | 11570616 | CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 1) | 2008-2013 | 02 | |
| 004 | RADIATOR, (SEE GROUP 01.000 RADIATOR ASM FOR DETAILED ILLUSTRATED VIEW) | 2008-2013 | |||
| 005 | 11516931 | BOLT, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) | 2008-2013 | 02 | |
| 006 | 11570616 | CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 7) | 2008-2013 | 02 |
