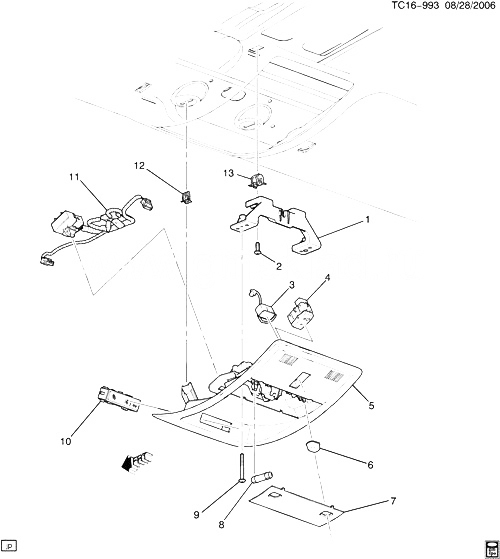

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15911047 |
BRACKET, RF RR CNSL (PART OF 5) |
K1, 2, 3 |
2007-2009 |
01 |
| 002 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 5) |
|
2007-2009 |
02 |
| 003 |
15241529 |
MICROPHONE, MOBILE TEL (PART OF 5) (2-WAY CAVITY) |
K1, 2, 3 (DK8) |
2007-2009 |
01 |
| 004 |
15211504 |
SWITCH, L/GATE ACTR (PART OF 5) (PART OF LIFT GATE PNL) |
K1, 2 (06) (E61) |
2007-2009 |
01 |
| 004 |
15211504 |
SWITCH, L/GATE ACTR (PART OF 5) (PART OF LIFT GATE PNL) |
K107 (06) (E61, XA1, Z75) |
2009-2009 |
01 |
| 004 |
15299399 |
SWITCH, L/GATE ACTR (FULL OPEN SWITCH) (PART OF 5) (12.243) |
K1, 2 (06) (E61) |
2007-2009 |
01 |
| 005 |
25807240 |
|
K1 (06) (DK8, Z75, 19I) (EXC ARS, CF5, UG1) |
2008-2009 |
01 |
| 005 |
25851515 |
|
K107 (06) (41I) |
2008-2009 |
01 |
| 005 |
25853059 |
|
K1, 2 (33I, 39I) |
2009-2009 |
01 |
| 006 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 5) |
K1, 2, 3 |
2007-2009 |
02 |
| 007 |
15911049 |
LENS, DM LP (PART OF 5) (1ST ROW)
| K1, 2, 3 |
2007-2009 |
01 |
|
| 008 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 5) (ACDelco #L212-2) |
|
2007-2009 |
02 |
| 009 |
|
|
|
2007-2009 |
|
| 010 |
22625546 |
INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) (14.865) |
K1, 2, 3 (DK8) (EXC UC2, U19) |
2009-2009 |
01 |
| 010 |
22627868 |
INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) (14.865) |
K1, 2, 3 (U19) (EXPORT) |
2007-2009 |
01 |
| 011 |
|
HARNESS, |
|
2007-2009 |
|
| 012 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 5)
|
2007-2009 |
02 |
|
| 013 |
11609345 |
|
|
2007-2009 |
02 |
