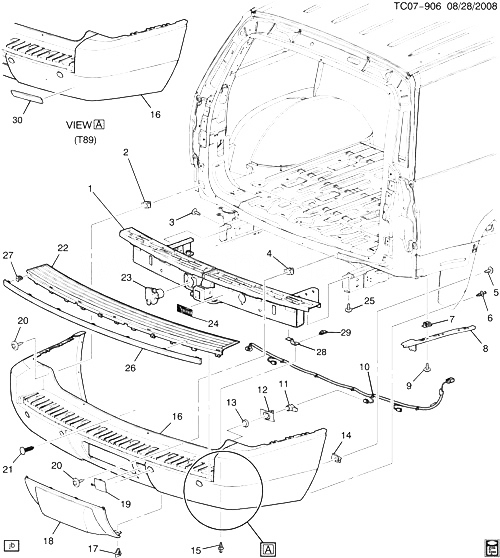

(TC07-906) - 2007-2009 CK107(06) БАМПЕР ЗАДНИЙ (G.M.C. Z88, DENALI Y91) CADILLAC - ESCALADE (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25938524 BAR, RR BPR IMP (INCLS 24, 28) (INCLS TRAILER HITCH RECEIVER) CK1, 2 (06) (VR4) (EXC PPV) 2007-2009 01
002 11518531 2007-2009 02
003 11519537 2007-2009 04
004 11569711 2007-2009 02
005 11589015 2007-2009 04
006 11589292 PUSH PIN, FITS 8.5 DIA HOLE IN 2-4.5 THK PNL, NYLON 6/6 GMP.PA66.015 (RR W/H PNL LNR (PUSH IN)) 2007-2009 02
007 11569711 2007-2009 06
008 15912685 BRACKET, RR BPR FASCIA SUPT CK107 (06) 2007-2009 01
008 25906986 BRACKET, RR BPR FASCIA SUPT CK107 (06) 2007-2009 01
009 11589015 2007-2009 06
010 15950574 HARNESS, RR OBJECT SEN WRG CK107 (06) (T89, UD7, VGE) 2007-2009 01
010 15950574 HARNESS, RR OBJECT SEN WRG CK107 (06) (VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
011 15239247 SENSOR KIT, RR OBJECT (INCLS 13) (PRIMED) (W/O CK107, 109 (06) (UD7) 2009-2009 04
011 15239247 SENSOR KIT, RR OBJECT (INCLS 13) (PRIMED) (W/O CK107, 109 (06) (VGE, Y91, Z88, Z75) 2009-2009 04
012 15817523 CK107 (06) (T89, UD7, VGE) 2009-2009 01
012 15817523 CK107 (06) (VGE, Y91, Z75, Z88) (EXC T89) 2009-2009 01
012 15817523 CK107 (06) (T89, UD7, VGE) 2009-2009 01
012 15817523 CK107 (06) (VGE, Y91, Z75, Z88) (EXC T89) 2009-2009 01
012 15817524 CK107 (06) (UD7, VGE, T89) (EXPORT) 2007-2009 01
012 15817524 CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
012 15817524 CK107 (06) (UD7, VGE, T89) (EXPORT) 2007-2009 01
012 15817524 CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
012 15817525 CK107 (06) (UD7, VGE, T89) (EXPORT) 2007-2009 01
012 15817525 CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
012 15817525 CK107 (06) (UD7, VGE, T89) (EXPORT) 2007-2009 01
012 15817525 CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
012 15817526 CK107 (06) (T89, UD7, VGE) (EXPORT) 2007-2009 01
012 15817526 CK107 (06) (T89, UD7, VGE) (EXPORT) 2007-2009 01
012 15817526 CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
013 RETAINER, RR OBJECT SEN (PART OF 11) (*KIT1) 2007-2009
014 11515638 2007-2009 02
015 11562024 RETAINER, PUSH IN, 7.5X36.5, FITS 6.35 HOLE IN 2.29-18.34 THK PNL (RR BPR FASCIA (PUSH IN)) 2007-2009 02
016 15909709 FASCIA, RR BPR (INCLS 12, 19) (PAINT TO MATCH) CK107 (06) (T89, UD7, VGE) (EXPORT) 2007-2009 01
016 20771921 FASCIA, RR BPR (INCLS 12, 19) (PAINT TO MATCH) (MAY NEED TO ORDER HITCH COVER 20777999) CK107 (06) (UD7, VGE, Y91, Z75, Z88) (EXC T89) 2007-2009 01
017 11610049 CK1 (06) 2007-2009 02
018 20777999 COVER PKG, RR BPR FASCIA TRLR HITCH ACC HOLE (PAINT TO MATCH) CK1 (06) (UD7, VGE, Z75, Y91, Z88) 2007-2009 01
019 15811583 COVER, RR BPR FASCIA ACC HOLE (PART OF 16) (PAINT TO MATCH) CK1 (06) (Y91) 2007-2009 01
020 11570498 2007-2009 04
021 11562024 RETAINER, PUSH IN, 7.5X36.5, FITS 6.35 HOLE IN 2.29-18.34 THK PNL (RR BPR FASCIA (PUSH IN)) 2007-2009 02
022 15853597 PAD, RR BPR FASCIA STEP (USE T/W 15853598) CK1 (06) (Y91, Z75, Z88) 2007-2009 01
023 12191503 RECEPTACLE, TOW VEH ELEC (W/DOOR) CK1, 2 (06-36) (Z82) (EXC PPV) 2008-2009 01
024 15228708 LABEL, TRLR HITCH INFO (PART OF 1) CK1, 2 (06) 2007-2009 01
025 11561075 BOLT-HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR) 2007-2009 06
026 15853598 MOLDING, RR BPR FASCIA (INCLS 27) (CHROME) (USE T/W 15853597) CK1 (06) (Y91, Z75, Z88) 2007-2009 01
027 11561857 CLIP, RR BPR FASCIA MLDG (PART OF 26) (BLACK) (14.13 X 11 X 8.6) CK1 (06) 2007-2009 07
028 25894906 BRACKET, RR BPR IMP BAR (PART OF 1) CK1, 2 (06) 2007-2009 02
029 11570097 2007-2009 02
030 25779048 REFLECTOR, R/END FASCIA CK107 (06) (T89, UD7, VGE) 2009-2009 01
030 25779049 REFLECTOR, R/END FASCIA CK107 (06) (T89, UD7, VGE) 2009-2009 01
K01 19116085 SENSOR KIT, RR OBJECT (INCLS 11-13) (PRIMED) (W/ CK1 2007-2009 04
K01 19116085 SENSOR KIT, RR OBJECT (INCLS 11-13) (PRIMED) (W/ CK1 2007-2009 04
