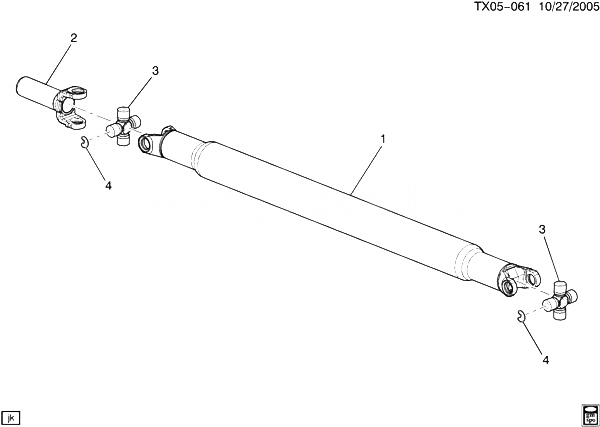

(TX05-061) - 2008-2009 K107(06) ВАЛ ПРИВОДА-КАРДАННЫЙ ВАЛ (ONE PIECE) (6L80 AUTOMATIC MYC, 4L60-E AUTOMATIC M30) CADILLAC - ESCALADE (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25932512 | SHAFT, PROP (INCLS 2-4) | K107 (06) (EXC HP2) | 2009-2009 | 01 |
| 002 | 88964470 | YOKE, PROP SHF SLIP (WHEN REPLACING A | K107 (06) (EXC HP2) | 2009-2009 | 01 |
| 003 | 89059111 | JOINT KIT, PROP SHF UNIVERSAL (PART OF 1) (INCLS 4)| K107 (06) (EXC HP2) |
2009-2009 |
02 |
|
| 004 | 26054781 | RING, PROP SHF UJT SPIDER BRG RET (FRT PROP) (PART OF 1, 3) (RETAINING RING)| K107 (06) (MYC, M30) |
2009-2009 |
04 |
|
