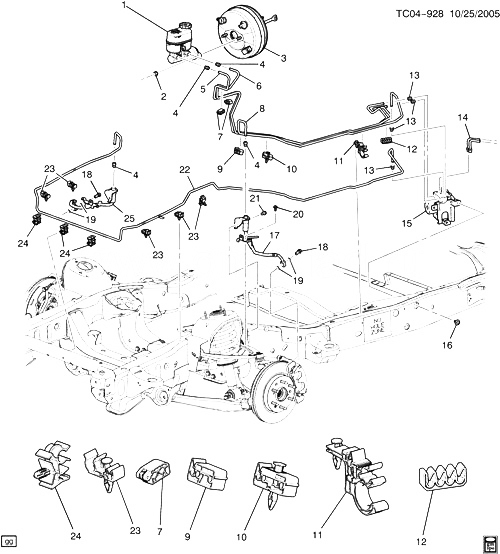

(TC04-928) - 2007-2009 CK1(06-36) ТОРМОЗНЫЕ МАГИСТРАЛИ-ПЕРЕДНИЕ (JD9) CADILLAC - ESCALADE (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CYLINDER, BRK MAS ( 2007-2009
002 11517996 CK1, 2, 3 2007-2009 02
003 BOOSTER, P/B ( 2007-2009
004 11518522 2007-2009 02
005 19181732 PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) CK1 (06-36) (JD9) 2009-2009 01
006 19181732 PIPE, BRK (INCLS 4, 13) (5/16 X 16 FT) (BULK PIPE) CK1 (06-36) (JD9) 2009-2009 01
007 15194368 CLIP, RR BRK FRT PIPE (9.2X33.1) (HOLDS (2)8.25OD LINES) (4.685) CK1 (06-36) (JD9) 2009-2009 02
008 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) 2007-2009 AR
009 11570231 CLIP, FRT BRK PIPE (HOLDS ONE 6.65 DIA TUBE, TWO 8.35 DIA TUBE) CK1 (06-36) (JD9) 2009-2009 01
010 11570234 CLIP, FRT BRK PIPE CK1 (06-36) (JD9) 2009-2009 01
011 11570232 CLIP, FRT BRK PIPE (HOLDS TWO 6.65, TWO 8.35, ONE 5.0, ONE 17, ONE 33.0 DIA TUBES) CK1 (06-36) (JD9) 2009-2009 01
012 11570231 CLIP, FRT BRK PIPE (HOLDS ONE 6.65 DIA TUBE, TWO 8.35 DIA TUBE) CK1 (06-36) (JD9) 2009-2009 01
013 11562075 CK1, 2, 3 2007-2009 AR
014 PIPE, BRK ( 2007-2009
015 VALVE, BRK PRESS MOD (W/ELEK BRK CONT MDL) ( 2007-2009
016 11519388 2007-2009 03
017 15923783 HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1515) CK1 (JD9, JF3, JF7, JG4, J92) 2009-2009 01
018 11517342 2007-2009 AR
019 21012386 WASHER, RR BRK HOSE (PART OF 17, 25) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) CK1 (06-36) 2007-2009 04
020 11561674 2007-2009 02
021 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) 2007-2009 02
022 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK PIPE) 2007-2009 AR
023 11561421 CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) CK1 (06-36) 2007-2009 05
024 11561422 CLIP, FRT BRK FRT PIPE (FITS INTO DIA 8 HOLE) CK1 (06-36) 2007-2009 03
025 15923784 HOSE, FRT BRK (INCLS 18, 19) (ACDelco #176-1516) CK1 (JD9, JF3, JF7, JG4, J92) 2008-2009 01
