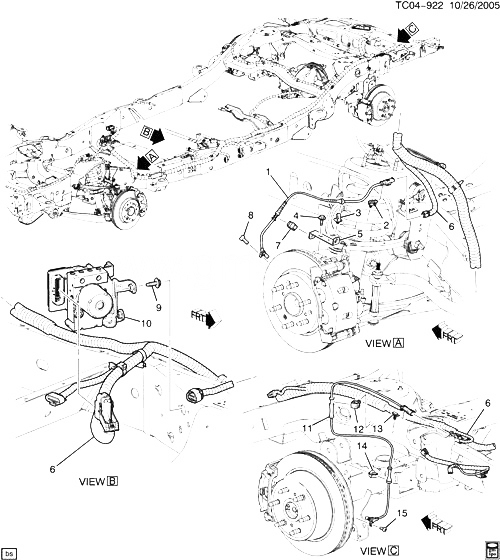

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15229012 |
SENSOR, FRT WHL SPD (INCLS 2, 3, 7) (ACDelco #15229012) (FOR VEHICLES WITH RPO PPV-USE T/W THERMAL WRAP PN 19207924, BETWEEN WHEEL SPEED SENSOR HEAD AND FIRST CLIP.)
| CK1 |
2007-2009 |
02 |
|
| 002 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2007-2009 |
02 |
| 003 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2007-2009 |
02 |
| 004 |
11561674 |
|
|
2007-2009 |
02 |
| 005 |
15133409 |
BRACKET, FRT WHL SPD SEN |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2009 |
02 |
| 006 |
|
HARNESS, CHAS WRG ( |
|
2007-2009 |
|
| 007 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 1) (10.00MM) (1 HOLE CLIP) |
CK1 |
2007-2009 |
02 |
| 008 |
15960191 |
|
CK1, 2, 3 |
2007-2009 |
AR |
| 009 |
11570082 |
|
|
2007-2009 |
03 |
| 010 |
|
VALVE, BRK PRESS MOD (W/ELEK BRK CONT MDL) ( |
|
2007-2009 |
|
| 011 |
15121067 |
SENSOR, RR WHL SPD (INCLS 12-14)
| CK1 (06-36) |
2007-2009 |
02 |
|
| 012 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2009 |
|
| 013 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2009 |
|
| 014 |
|
CLIP, RR WHL SPD SEN WIRE (PART OF 11) |
|
2007-2009 |
|
| 015 |
11570519 |
SCREW, PAN HD, M6X1X13, 10 THD 12 OD, 9.8, PHOS OIL.W/ADH (RR WHL SPD SEN) |
|
2007-2009 |
02 |
