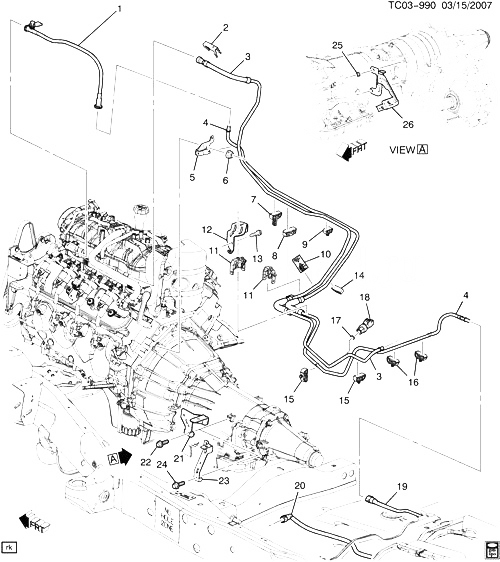

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12617169 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L9H, LS2) |
2009-2009 |
01 |
| 002 |
22695614 |
RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE)
| CK1, 2, 3 (LC9, LFA, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
|
| 003 |
15946243 |
HOSE, FUEL FEED (INCLS 15)
| CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
|
| 004 |
15946264 |
HOSE, EVAP EMIS (INCLS 16) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 005 |
15085402 |
BRACKET, FUEL FEED EVAP EMIS RTN HOSE |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 006 |
11514596 |
|
|
2008-2009 |
01 |
| 007 |
15168648 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) |
CK1, 2 (06-36) |
2008-2009 |
01 |
| 009 |
15085405 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 010 |
|
LABEL, FUEL FEED PIPE WRNG |
|
2008-2009 |
|
| 011 |
15085404 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
02 |
| 012 |
15126012 |
BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP |
CK1 (06-36) |
2008-2009 |
01 |
| 013 |
11570082 |
|
|
2008-2009 |
01 |
| 014 |
15168649 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) |
CK1, 2 (06-36) |
2008-2009 |
03 |
| 015 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 3) (2 TUBE) |
CK1, 2, 3 |
2008-2009 |
02 |
| 016 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 4) (2 TUBE) |
CK1, 2, 3 |
2008-2009 |
02 |
| 017 |
15778699 |
SEAL, FUEL PRESS SEN (O RING) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 018 |
15239857 |
SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (3.682) (ACDelco #213-3837) (PART OF HOSE ASSEMBLY 25949801 LABELED 9801) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 018 |
15239857 |
SENSOR, FUEL PRESS (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (ACDelco #213-3837) (PART OF HOSE ASSEMBLY 25949801 LABELED 9801) |
CK1 (06-36) (LC9, LMG, LY2, LY5, L76, L9H) |
2009-2009 |
01 |
| 019 |
|
HOSE, EVAP EMIS CNSTR PURGE ( |
|
2008-2009 |
|
| 020 |
|
HOSE, FUEL FEED ( |
|
2008-2009 |
|
| 022 |
11516703 |
|
|
2008-2009 |
01 |
| 023 |
15124945 |
BRACKET, FUEL FEED RTN FRT HOSE |
CK1 (MYC) |
2008-2009 |
01 |
| 024 |
11561674 |
|
|
2008-2009 |
01 |
| 025 |
11514597 |
|
|
2008-2009 |
06 |
| 026 |
15033698 |
BRACKET, FUEL FEED RTN PIPE |
K1 |
2008-2009 |
01 |
