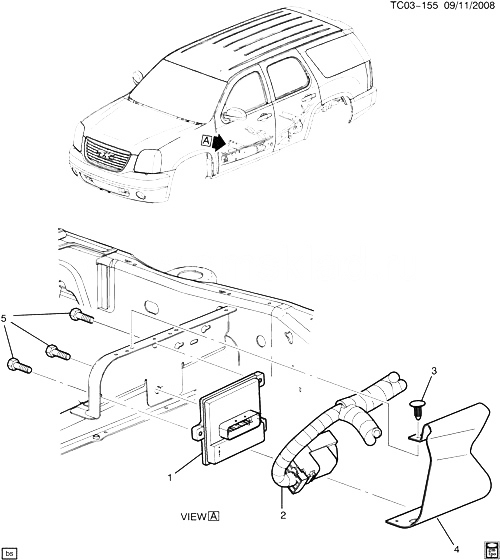

(TC03-155) - 2009 CK1(06-36) FUEL CONTROL MODULE (LC9/5.3-3,LFA/6.0-5,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L9H/6.2-2) CADILLAC - ESCALADE (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 20850907 | MODULE, F/PMP FLOW CONT (ACDelco #20850907)| CK1 (L9H) |
2009-2009 |
01 |
|
| 002 | HARNESS, CHAS WRG ( | 2009-2009 | |||
| 003 | 11569768 | RETAINER, PUSH-IN, FIT HOLE 6.35, 20.32 LENGTH, 17.78 OD, 2.79-14.22 THK P (PART OF 4) | 2009-2009 | 04 | |
| 004 | 25943798 | SHIELD, F/PMP FLOW CONT MDL (INCLS 3) | CK1 (06-36) (EXC HP2) | 2009-2009 | 01 |
| 005 | 11562584 | CK1 | 2009-2009 | 03 |
