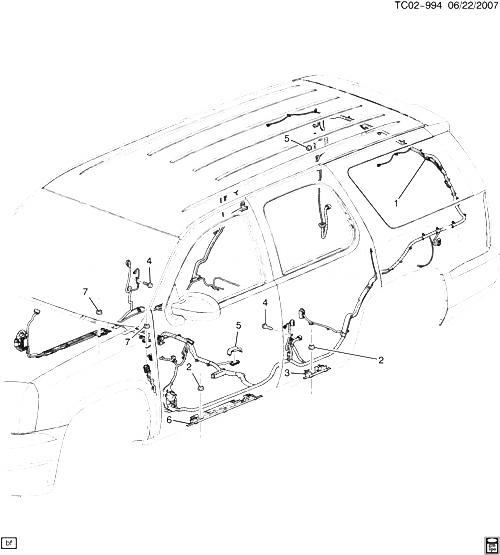

(TC02-994) - 2008-2009 CK107(06) ЖГУТЫ ПРОВОДОВ/КУЗОВ (HYBRID HP2) CADILLAC - ESCALADE (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 20764828 | HARNESS, BODY WRG (INCLS 3, 6) (USED ON VEH BUILT WITH 8-WAY CONN ON | CK107 (06) (HP2, UVC, Y91, Z75) (EXC T89, ULT) (2ND DES) | 2009-2009 | 01 |
| 001 | 20830842 | HARNESS, BODY WRG (INCLS 3, 6) | CK1 (06) (LFA, HP2, Z75) (EXC TR2) | 2009-2009 | 01 |
| 002 | 21011332 | 2008-2009 | 06 | ||
| 004 | 11588337 | 2008-2009 | 02 | ||
| 005 | 15215179 | COVER, WRG HARN CONN (BLACK (REPLS ALL COLORS))| CK1, 2 (06-36) |
2008-2009 |
02 |
|
| 007 | 11609411 | 2008-2009 | 03 |
