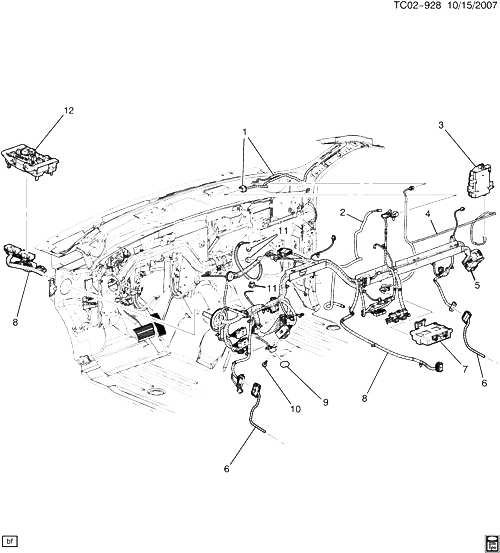

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF WRG ( |
|
2007-2009 |
|
| 003 |
|
RECEIVER, DIGITAL RDO ( |
|
2007-2009 |
|
| 004 |
19117122 |
CABLE, DIGITAL RDO |
K1 (06) (BRS, NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91, Z88) (EXC UFT) |
2009-2009 |
01 |
| 005 |
19149310 |
BLOCK, I/P WRG HARN JUNC (PART OF 8) |
K1, 2, 3 |
2007-2009 |
01 |
| 005 |
19149310 |
BLOCK, I/P WRG HARN JUNC (PART OF 8) |
K1 (06) (NR3, US9, Y91, Z88) (EXC BRS, UE1, U2K, U42) |
2009-2009 |
01 |
| 006 |
|
HARNESS, BODY WRG ( |
|
2007-2009 |
|
| 007 |
|
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) ( |
|
2007-2009 |
|
| 008 |
20819671 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963032) |
K1 (06) (NR3, UBS, U2K, UE1, U3U, Y91, Z88) (EXC BRS, HP2, UFT, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819672 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963045) |
K1 (06) (NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91, Z88) (EXC BRS, HP2, UFT) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819673 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963046) |
K1 (06) (NR3, UE1, US9, U2K, Y91, Z88) (EXC BRS, UFT, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819676 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963052) |
K1 (06) (BRS, NR3, UBS, U2K, UE1, U3U, Y91, Z88) (EXC HP2, UFT, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819676 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963052) |
K1 (06) (NR3, UBS, U2K, UE1, UFT, U3U, Y91, Z88) (EXC HP2, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819680 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963061) |
K1 (06) (NR3, UE1, UFT, US9, U2K, Y91, Z88) (EXC U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819681 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963062) |
K1 (06) (BRS, NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91, Z88) (EXC HP2, UFT) (2ND DES) |
2009-2009 |
01 |
| 008 |
20819681 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963062) |
K1 (06) (NR3, UBS, U2K, UE1, UFT, UVA, UVB, U42, Y91, Z88) (EXC HP2) (2ND DES) |
2009-2009 |
01 |
| 008 |
20824141 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963033) |
K1 (06) (NR3, U3U, Y91, Z88) (EXC BRS, UBS, UE1, U2K, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20824141 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963033) |
K1 (06) (NR3, UVA, UVB, U42, Y91, Z88) (EXC BRS, UBS, UE1, U2K) (2ND DES) |
2009-2009 |
01 |
| 008 |
20824146 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963047) |
K1 (06) (NR3, US9, Y91, Z88) (EXC BRS, UE1, U2K, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20824150 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963053) |
K1 (06) (BRS, NR3, U3U, Y91, Z88) (EXC UBS, UE1, U2K, U42) (2ND DES) |
2009-2009 |
01 |
| 008 |
20824150 |
HARNESS, I/P WRG (INCLS 4, 5) (W/O CONNS FOR HTD W/S NOZZLE SYS) (FOR 1ST DES SEE 25963053) |
K1 (06) (BRS, NR3, UVA, U42, Y91, Z88) (EXC UBS, UE1, U2K) (2ND DES) |
2009-2009 |
01 |
| 008 |
25963032 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819671) |
K1 (06) (NR3, UBS, U2K, UE1, U3U, Y91, Z88) (EXC BRS, UFT, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963033 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824141) |
K1 (06) (NR3, U3U, Y91, Z88) (EXC BRS, UBS, UE1, U2K, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963033 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824141) |
K1 (06) (NR3, UVA, UVB, U42, Y91, Z88) (EXC BRS, UBS, UE1, U2K) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963045 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819672) |
K1 (06) (NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91) (EXC BRS, UFT) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963046 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819673) |
K1 (06) (NR3, UE1, US9, U2K, Y91, Z88) (EXC BRS, UFT, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963047 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824146) |
K1 (06) (NR3, US9, Y91, Z88) (EXC BRS, UE1, U2K, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963052 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819676) |
K1 (06) (BRS, NR3, UBS, U2K, UE1, U3U, Y91, Z88) (EXC UFT, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963052 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819676) |
K1 (06) (NR3, UBS, U2K, UE1, U3U, Y91, Z88) (EXC U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963053 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824150) |
K1 (06) (BRS, NR3, U3U, Y91, Z88) (EXC UBS, UE1, U2K, U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963053 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20824150) |
K1 (06) (BRS, NR3, UVA, U42, Y91, Z88) (EXC UBS, UE1, U2K) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963061 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819680) |
K1 (06) (NR3, UE1, UFT, US9, U2K, Y91, Z88) (EXC U42) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963062 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819681) |
K1 (06) (BRS, NR3, UBS, U2K, UE1, UVA, UVB, U42, Y91, Z88) (EXC UFT) (1ST DES) |
2009-2009 |
01 |
| 008 |
25963062 |
HARNESS, I/P WRG (INCLS 4, 5) (W/CONN FOR HTD W/S NOZZLE SYS) (FOR 2ND DES SEE 20819681) |
K1 (06) (NR3, UBS, U2K, UE1, UFT, UVA, UVB, U42, Z88) (1ST DES) |
2009-2009 |
01 |
| 009 |
12146933 |
COVER, I/P WRG HARN DATA LINK CONN |
K107 (06) (T89) |
2009-2009 |
01 |
| 010 |
11589012 |
|
|
2007-2009 |
01 |
| 011 |
11609411 |
|
|
2007-2009 |
02 |
| 012 |
|
BLOCK, ENG WRG HARN JUNC ( |
|
2007-2009 |
|
