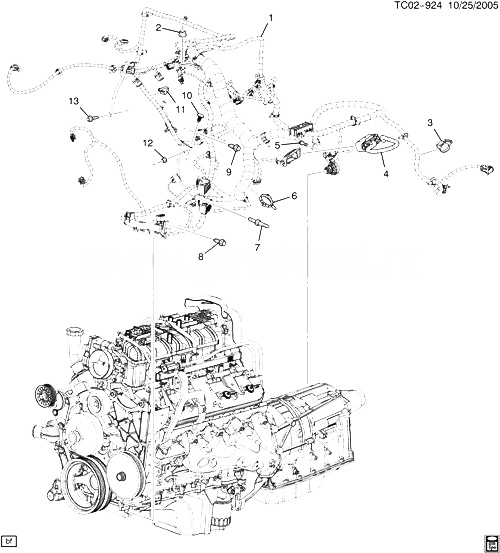

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15940539 |
HARNESS, ENG WRG |
CK1 (06-36) (MYC) |
2009-2009 |
01 |
| 001 |
25994842 |
HARNESS, ENG WRG |
K1 (06-36) (L9H, MYC, NQH) |
2009-2009 |
01 |
| 002 |
11609411 |
|
|
2007-2009 |
01 |
| 003 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (ENG WRG HARN CLIP) (ACDelco #1470030) |
|
2007-2009 |
01 |
| 004 |
|
HARNESS, I/P WRG ( |
|
2007-2009 |
|
| 005 |
11589076 |
|
|
2007-2009 |
01 |
| 006 |
|
CLIP, ENG WRG HARN ECM LEAD |
|
2009-2009 |
|
| 007 |
11609832 |
STUD-HFH, M8X1.25X16, M8X1.25X16, 18 OD, 40.1 TL, 8.8 STL, GMW3200 (ENG WRG HARN CDT) |
|
2007-2009 |
01 |
| 008 |
11514623 |
|
|
2007-2009 |
01 |
| 009 |
11561674 |
|
|
2007-2009 |
01 |
| 010 |
21075686 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (SECD OXY SEN WRG HARN) |
|
2007-2009 |
02 |
| 011 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (OXY SEN WIRE) (ACDelco #1470030) |
|
2007-2009 |
01 |
| 012 |
11609467 |
NUT HEX, M5X0.8, 4.55 THK, 5 STL, GMW3200 (ENG WRG HARN START MTR LEAD) |
|
2007-2009 |
01 |
| 013 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L9H, L92) |
2009-2009 |
01 |
