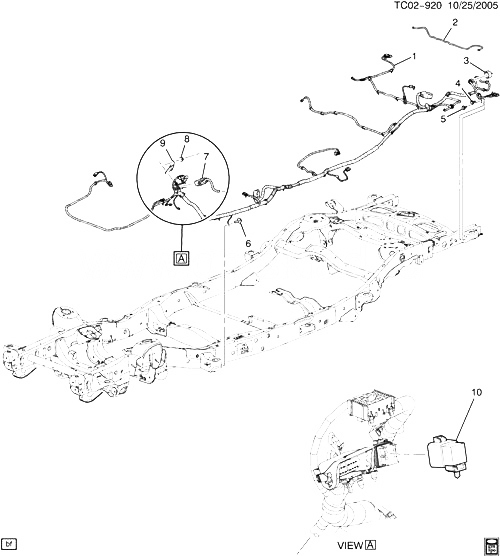

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25977176 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, Z55, Z75, Z95) (EXC HP2, T79, UFT) |
2009-2009 |
01 |
| 001 |
25977177 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, T79, Z55, Z75, Z95) |
2009-2009 |
01 |
| 001 |
25977177 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (G69, T79, Z55, Z75, Z95) (EXC BRS) |
2009-2009 |
01 |
| 001 |
25977196 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (BRS, G69, UFT, Z55, Z75, Z95) (EXC HP2, T79) |
2009-2009 |
01 |
| 001 |
25977221 |
HARNESS, CHAS WRG (INCLS 2, 3) |
CK107 (06) (G69, UFT, Z55, Z75, Z95) (EXC BRS, HP2, T79) |
2009-2009 |
01 |
| 002 |
19115819 |
TUBE, RR S/ABS AIR (PART OF 1)
| CK1 (06) (G69, X88, Z55, Z75, Z88, Z95) |
2008-2009 |
01 |
|
| 003 |
|
CAP, TRLR WRG RCPT (PART OF 1) |
|
2007-2009 |
|
| 004 |
11588337 |
|
|
2007-2009 |
01 |
| 005 |
11588337 |
|
|
2007-2009 |
01 |
| 006 |
11588337 |
|
|
2007-2009 |
02 |
| 007 |
|
HARNESS, I/P WRG ( |
|
2007-2009 |
|
| 008 |
21011332 |
|
|
2007-2009 |
02 |
| 009 |
15045897 |
BRACKET, CHAS FRT WRG HARN (FRT OF DASH) |
CK1, 2, 3 |
2007-2009 |
01 |
| 010 |
12177233 |
RELAY, AUTO LVL CONT (5-WAY MALE, BLACK, CODE 7233) (SHROUDED) (W/RESISTOR) (SPDT 280 MINI) (FOR 4-TERM APP CUT OFF CENTER TERM LABELED 87A) (9.277) (ACDelco #15-8721) |
CK107 (06) (G69) |
2007-2009 |
01 |
