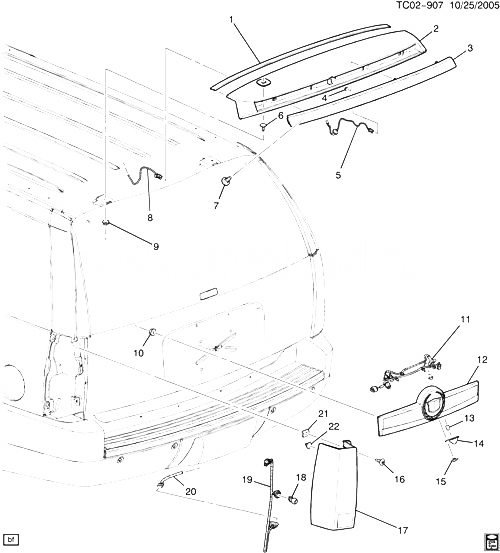

(TC02-907) - 2007-2009 CK1(06) ЗАДНИЕ ФОНАРИ (CADILLAC Z75) CADILLAC - ESCALADE (AWD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15270012 SEAL, E/GATE CTR MLDG (PART OF 2) CK1 (06) (Z75) 2007-2009 01
002 25779075 APPLIQUE, L/GATE UPR (INCLS 1, 4-6) (PAINT TO MATCH) (W/O HIGH MT S/LP) CK1 (06) (Z75) 2007-2009 01
003 25779085 LAMP, HIGH MT STOP (INCLS CZ2 STAMP) CK1 (06) (Z75) 2007-2009 01
004 11609411 2007-2009 02
005 15857136 WIRE, HIGH MT S/LP (PART OF 2) CK1 (06) (Z75) 2007-2009 01
006 11561972 CK1 (06) 2007-2009 02
007 11609394 CK1, 2 (06) 2008-2009 03
008 HARNESS, BODY WRG ( 2007-2009
009 11508277 2007-2009 02
010 03530297 2007-2009 04
011 25872958 HARNESS, RR LIC PLT LP WRG CK1 (06) (UVC, Z75) 2009-2009 01
011 25872958 HARNESS, RR LIC PLT LP WRG (2.714) (SERV CMP OF CAMERA PKGS) CK1, 2 (06) 2007-2009 01
012 APPLIQUE, L/GATE ( 2007-2009
013 01999382 BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE) 2007-2009 02
014 25778786 LAMP, RR LIC PLT CK1, 2 (06) (Z75, Z88, X88) 2007-2009 02
015 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP LENS) 2007-2009 04
016 11609406 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (T/LP) 2007-2009 04
017 25895482 LAMP, TAIL (INCLS 18, 19, 22) CK1 (06) (Z75) (EXC T89) 2007-2009 01
017 25895483 LAMP, TAIL (INCLS 18, 19, 22) CK1 (06) (Z75) (EXC T89) 2007-2009 01
017 25895484 LAMP, TAIL (INCLS 18, 19, 22) CK1 (06) (T89) 2008-2009 01
017 25895485 LAMP, TAIL (INCLS 18, 19, 22) CK1 (06) (T89) 2009-2009 01
018 15821754 BULB, B/U LP (PART OF 17) (TRADE 7440) (8.991) (ACDelco #15821754) CK1 (06) (Z75) (EXC T89) 2007-2009 01
018 15821754 BULB, B/U LP (PART OF 17) (TRADE 7440) (8.991) (ACDelco #15821754) CK1 (T89) 2007-2009 01
019 15803482 HARNESS, T/LP WRG (PART OF 17) CK1 (T89) (EXPORT) 2008-2009 02
019 15803483 HARNESS, T/LP WRG (PART OF 17) CK1 (06) (Z75) (EXC T89) 2008-2009 02
020 HARNESS, CHAS WRG ( 2007-2009
021 11569711 2007-2009 04
022 11562160 RETAINER, T/LP (PART OF 17) CK1, 2 (06) 2007-2009 04
