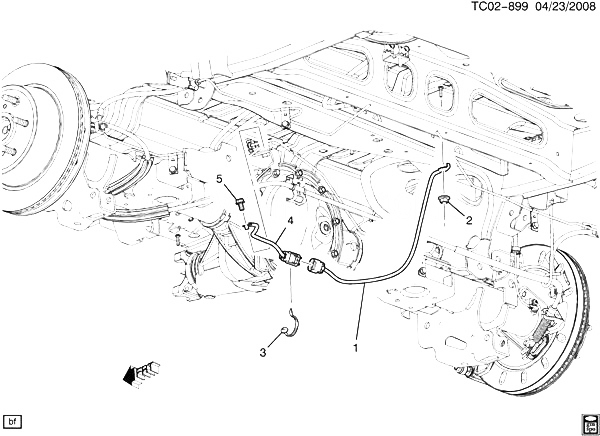

(TC02-899) - 2008-2009 CK107(06) ЖГУТЫ ПРОВОДОВ/CHASSIS GROUND STRAPS (HYBRID HP2) CADILLAC - ESCALADE (AWD) 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25866712 | STRAP, BODY GND (LABELED 25866712 OR 25829707) | CK1 (HP2) | 2008-2009 | 01 |
| 002 | 11609411 | 2008-2009 | 01 | ||
| 003 | 12337820 | STRAP, 15 TIE STRAP (ACSRY WRG HARN) (ACDelco #12337820) | 2008-2009 | AR | |
| 004 | 25866711 | STRAP, R/AXLE WRG HARN | CK1 (06) (HP2) | 2008-2009 | 01 |
| 005 | 11515755 | 2008-2009 | 01 |
