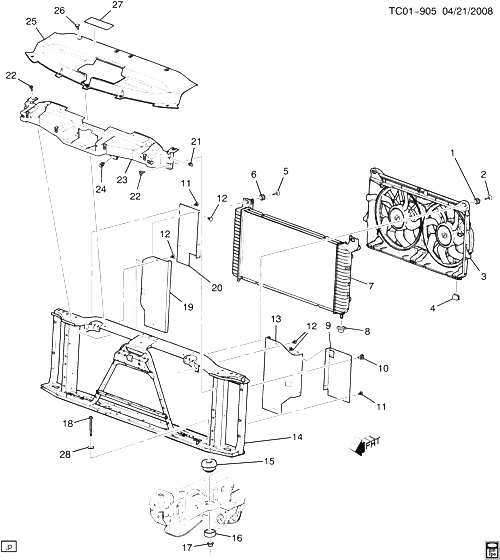

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15780790 |
INSULATOR, ENG COOL FAN SHRD (UPPER)
| CK1 |
2007-2009 |
02 |
|
| 002 |
11516931 |
|
|
2007-2009 |
02 |
| 003 |
|
FAN, ENG COOL (W/ SHRD) ( |
|
2009-2009 |
|
| 004 |
15780791 |
INSULATOR, ENG COOL FAN SHRD (LOWER)
| CK1 |
2007-2009 |
03 |
|
| 005 |
11516931 |
|
|
2007-2009 |
02 |
| 006 |
|
INSULATOR, RAD UPR (PART OF 7) |
|
2009-2009 |
|
| 007 |
|
RADIATOR, ( |
|
2007-2009 |
|
| 008 |
89019121 |
MOUNT, RAD LWR (PART OF 7) |
CK1 |
2007-2009 |
02 |
| 009 |
10392941 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2007-2009 |
01 |
| 010 |
19130464 |
STRAP, TIE 0.38 WIDTH, BUNDLE DIA 1/16-1-3/4, 8.27 LENGTH, NYLON 6/6 FITS 0. (WRG HARN)
|
2007-2009 |
01 |
|
| 011 |
15958694 |
RETAINER, RAD SUPT BFL (1LH/4RH) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2 (06) (C69) |
2007-2009 |
05 |
|
| 012 |
15958694 |
RETAINER, RAD AIR BFL (PUSH IN) (PART OF 13, 19) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 013 |
15208497 |
BAFFLE, RAD AIR (INCLS 12) |
CK1, 2 (06-36) (LC9, LMG, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 014 |
|
SUPPORT, RAD ( |
|
2007-2009 |
|
| 015 |
15837581 |
CUSHION, BODY BOLT UPR FRT (VIOLET) (1.270)
| CK107 (06) |
2007-2009 |
02 |
|
| 016 |
15201791 |
CUSHION, BODY BOLT LWR FRT (71MM OD) |
CK107, 209 (06) |
2007-2009 |
02 |
| 017 |
03537772 |
|
|
2007-2009 |
02 |
| 018 |
11562547 |
|
|
2007-2009 |
02 |
| 019 |
15208496 |
BAFFLE, RAD AIR (INCLS 12) |
CK1, 2 (06-36) (LC9, LFA, LMG, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 020 |
10392942 |
BAFFLE, RAD SUPT |
CK1, 2 (06) (C69) |
2007-2009 |
01 |
| 021 |
11570097 |
|
|
2007-2009 |
08 |
| 022 |
11610055 |
|
|
2007-2009 |
08 |
| 023 |
15904442 |
BRACKET, RAD GRL UPR (INCLS 21, 24)
| CK1 (Z75) |
2007-2009 |
01 |
|
| 024 |
22581725 |
CLIP, |
CK1, 2 |
2007-2009 |
03 |
| 025 |
25814523 |
BAFFLE, RAD AIR UPR (INCLS 27)
| CK1 (ULT, Z75) |
2008-2009 |
01 |
|
| 025 |
25861241 |
BAFFLE, RAD AIR UPR (INCLS 27) (INCLS LABEL)
| CK1 (Z75) (EXC ULT) |
2008-2009 |
01 |
|
| 026 |
11561878 |
RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (RAD AIR UPR BFL (PUSH IN))
|
2007-2009 |
06 |
|
| 027 |
|
LABEL, A/C REFRIG WRNG (PART OF 25) |
|
2009-2009 |
|
| 028 |
11562546 |
WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) |
|
2007-2009 |
02 |
