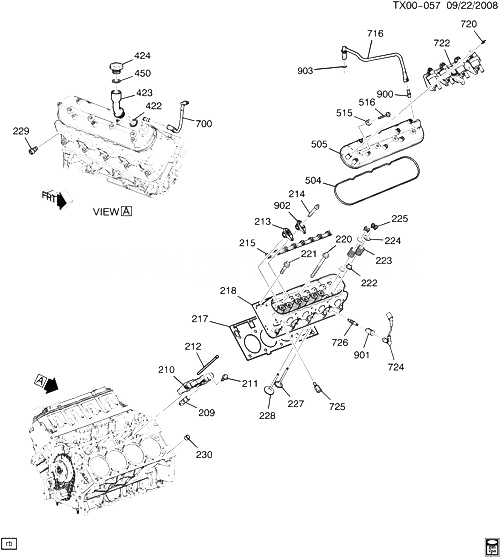

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 209 |
17122490 |
LIFTER, VLV (HYD, ROLLER, NON-ACTIVE FUEL MANAGEMENT LIFTER) (ACDelco #HL124)
| CK1 (L9H) |
2009-2009 |
16 |
|
| 210 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES)
| CK1 (L9H) |
2009-2009 |
01 |
|
| 211 |
12551163 |
|
CK1 (L9H) |
2009-2009 |
04 |
| 212 |
10238852 |
ROD, VLV PUSH
| CK1 (L9H) |
2009-2009 |
16 |
|
| 213 |
10214664 |
ARM, VLV RKR (ARM, VLV RKR EXH. FOR INTKE VLV RKR ARM SEE PN 12569167, QTY 8)
| CK1 (L9H) |
2009-2009 |
16 |
|
| 214 |
12560961 |
|
CK1 (L9H) |
2009-2009 |
16 |
| 215 |
12600936 |
SUPPORT, VLV RKR ARM PIV |
CK1 (L9H) |
2009-2009 |
02 |
| 217 |
12610046 |
GASKET, CYL HD
| CK1 (L9H) |
2009-2009 |
02 |
|
| 218 |
12615361 |
HEAD, CYL |
CK1 (L9H) |
2009-2009 |
02 |
| 220 |
11571134 |
|
CK1 (L9H) |
2009-2009 |
20 |
| 221 |
12558840 |
|
CK1 (L9H) |
2009-2009 |
10 |
| 222 |
12482062 |
SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS)
| CK1 (L9H) |
2009-2009 |
01 |
|
| 222 |
12482063 |
SEAL KIT, INT VLV STEM OIL (W/ |
CK1 (L9H) |
2009-2009 |
01 |
| 223 |
12589774 |
|
CK1 (L9H) |
2009-2009 |
16 |
| 224 |
10166344 |
CAP, VLV SPR
| CK1 (L9H) |
2009-2009 |
16 |
|
| 225 |
10166345 |
KEY, VLV STEM |
CK1 (L9H) |
2009-2009 |
16 |
| 227 |
12582719 |
VALVE, EXH (STD)
| CK1 (L9H) |
2009-2009 |
08 |
|
| 228 |
|
VALVE, INT |
|
2009-2009 |
|
| 229 |
11610259 |
PLUG, CYL HD CORE HOLE (M12X1.5X21.2) |
CK1 (L9H) |
2009-2009 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC
| CK1 (L9H) |
2009-2009 |
04 |
|
| 422 |
24100002 |
SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320)
| CK1 (L9H) |
2009-2009 |
01 |
|
| 423 |
12609624 |
TUBE, OIL FIL |
CK1 (L9H) |
2009-2009 |
01 |
| 424 |
12573337 |
CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 450) (ACDelco #FC208) |
CK1 (L9H, MYC, CW1, VD1, KC4, Z75) (EXPORT) |
2009-2009 |
01 |
| 424 |
12577268 |
CAP, OIL FIL (MOBIL 1, SAE 5W30, NON-VENTED, W/SEAL) (INCLS 450) (ACDelco #FC209) |
CK1 (L9H, MYC, KC4, Z75) (EXC CW1, VD1) |
2009-2009 |
01 |
| 450 |
24100002 |
SEAL, OIL FIL CAP (O RING) (PART OF 424) (27.94MM I.D.) (SIZE #320) (1.745)
| CK1 (L9H) |
2009-2009 |
01 |
|
| 504 |
12612045 |
GASKET, VLV RKR ARM CVR (PART OF 505)
| CK1 (L9H) |
2009-2009 |
02 |
|
| 505 |
12607721 |
COVER, VLV RKR ARM (INCLS 504, 515, 516, 900) |
CK1 (L9H) |
2009-2009 |
01 |
| 505 |
12607722 |
COVER, VLV RKR ARM (INCLS 504, 515, 516) (INCLS COVER, GASKET, BOLT, CONNECTOR, BAFFLE, CAP) |
CK1 (L9H) |
2009-2009 |
01 |
| 515 |
|
GROMMET, VLV RKR ARM CVR BOLT (PART OF 505, 516) |
|
2009-2009 |
|
| 516 |
12577215 |
|
CK1 (L9H) |
2009-2009 |
08 |
| 700 |
12609373 |
TUBE, PCV (FRESH AIR) |
CK1, 2, 3 (LC9, LFA, LH6, LMG, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 716 |
12597774 |
TUBE, PCV (DIRTY AIR) (INCLS 903) |
CK1 (L9H) |
2009-2009 |
01 |
| 720 |
12554211 |
STUD, IGN COIL BRKT (HFH, M6X1X18) (3.330) (ACDelco #12554211) |
CK1 (L9H) |
2009-2009 |
10 |
| 722 |
|
COIL, IGN ( |
|
2009-2009 |
|
| 724 |
19206446 |
WIRE, SPLG (*KIT1) |
CK1 (L9H) |
2009-2009 |
08 |
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (ACDelco #213-4333) |
CK1 (L9H) |
2009-2009 |
01 |
| 726 |
12609877 |
|
CK1 (L9H) |
2009-2009 |
08 |
| 900 |
12597772 |
FITTING, PCV (PART OF 505) |
CK1 (L9H) |
2009-2009 |
01 |
| 901 |
15336959 |
SHIELD, SPLG WIRE (ACDelco #8006) |
CK1 (L9H) |
2009-2009 |
08 |
| 902 |
12569167 |
ARM, INT VLV RKR (OFFSET INLET ROCKER ARM) (ARM, VLV RKR INT. FOR EXHST VLV RKR ARM SEE PN 10214664, QTY=8) |
CK1 (L9H) |
2009-2009 |
08 |
| 903 |
|
SEAL, PCV TUBE (PART OF 716) |
|
2009-2009 |
|
| K01 |
19206447 |
WIRE KIT, SPLG (INCLS 724) (INCLS SET OF 8 LEADS) (ACDelco #748UU) |
CK1 (L9H) |
2009-2009 |
01 |
