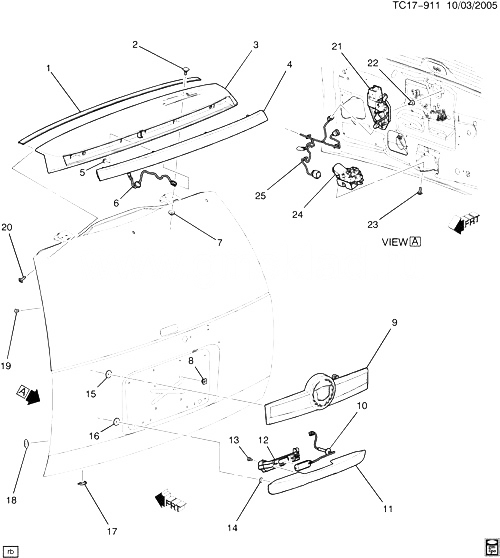

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15270012 |
SEAL, E/GATE CTR MLDG (PART OF 3) |
CK1 (06) (Z75) |
2007-2009 |
01 |
| 002 |
11561972 |
|
CK1 (06) (Z75) |
2007-2009 |
02 |
| 003 |
25779075 |
APPLIQUE, L/GATE UPR (INCLS 1, 2) (PAINT TO MATCH) (W/O HIGH MT S/LP) |
CK1 (06) (Z75) |
2007-2009 |
01 |
| 004 |
25779085 |
LAMP, HIGH MT STOP (INCLS CZ2 STAMP)
| CK1 (06) (Z75) |
2007-2009 |
01 |
|
| 005 |
11609411 |
|
|
2007-2009 |
02 |
| 006 |
15857136 |
WIRE, HIGH MT S/LP |
CK1 (06) (Z75) |
2007-2009 |
01 |
| 007 |
11508277 |
|
|
2007-2009 |
02 |
| 008 |
11569914 |
|
CK1, 2 (06) |
2007-2009 |
04 |
| 009 |
|
APPLIQUE, L/GATE ( |
|
2007-2009 |
|
| 010 |
15106857 |
SWITCH, L/GATE REL (PART OF 11) (ACDelco #D1499F)
| CK1, 2 (06) |
2007-2009 |
01 |
|
| 011 |
15842442 |
HANDLE, L/GATE O/S (INCLS 10, 12-14) (PAINT TO MATCH) |
CK1, 2 (06) |
2007-2009 |
01 |
| 012 |
|
COVER, L/GATE REL SW OPG (PART OF 11) |
|
2007-2009 |
|
| 013 |
|
|
|
2007-2009 |
|
| 014 |
12335645 |
GASKET, L/GATE WDO O/S HDL (PART OF 11) (7.800) |
CK1, 2 (06) |
2007-2009 |
04 |
| 015 |
03530297 |
|
|
2007-2009 |
04 |
| 016 |
11508388 |
|
|
2007-2009 |
04 |
| 017 |
15101589 |
PLUG, L/GATE INR PNL DRN HOLE (W/ |
CK1, 2 (06) |
2007-2009 |
03 |
| 018 |
|
PLUG, L/GATE WRG HARN HOLE |
|
2007-2009 |
|
| 018 |
21110669 |
PLUG, L/GATE WRG HARN HOLE (35 MM) (ROUND) (12.179) |
CK1, 2 (06) (EXC E61) |
2007-2009 |
04 |
| 019 |
|
PLUG, L/GATE SEN ATCH HOLE |
|
2007-2009 |
|
| 019 |
15259076 |
PLUG, L/GATE SEN ATCH HOLE (6.35MM) (ROUND) (10.571) |
CK1, 2 (06) (EXC E61) |
2007-2009 |
08 |
| 020 |
11609394 |
|
CK1, 2 (06) (Z75) |
2008-2009 |
03 |
| 021 |
25886854 |
LATCH, L/GATE WDO (INCLS 22) (REFER TO BULLETIN 07-08-66-005A WHEN REPLACING LATCH W/ BRKT) |
CK1, 2 (06) (X88, Z75, Z88) |
2007-2009 |
01 |
| 022 |
11589327 |
|
CK1, 2 (06) (X88, Z75, Z88) |
2007-2009 |
04 |
| 023 |
11609341 |
SCREW, RD WA HD 6-LOBE M6X1X19 (L/GATE LK)
|
2007-2009 |
03 |
|
| 024 |
|
LOCK, L/GATE |
|
2007-2009 |
|
| 024 |
13501871 |
LATCH, L/GATE (PO KIT ASM W/ACTUATOR) (12.242) (BUILT 7/21/08 AFTER) (FOR 1ST DES SEE 15858590) |
CK1, 2 (06) (EXC E61) (2ND DES) |
2008-2008 |
01 |
| 024 |
13501872 |
LATCH, L/GATE (W/AJAR SW) (12.242) |
CK1, 2 (06) (E61) |
2007-2009 |
01 |
| 024 |
15858590 |
LOCK, L/GATE (LATCH ONLY) (12.242) (BUILT PRIOR TO 7/21/08) (FOR 2ND DES SEE 13501871) |
CK1, 2 (06) (EXC E61) (1ST DES) |
2008-2008 |
01 |
| 025 |
|
HARNESS, L/GATE WRG ( |
|
2007-2009 |
|
