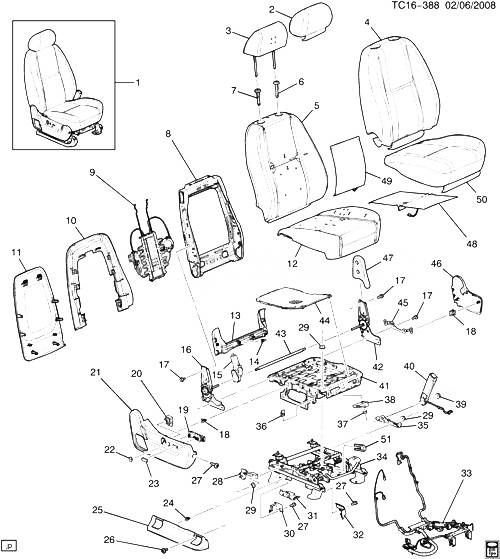

(TC16-388) - 2008 CK1,2(06-36) ПАССАЖИРСКОЕ СИДЕНЬЕ/BUCKET (AN3, EXC HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15827044 SEAT, PASS (EBONY) CK1 (06-36) (AL0, AN3, Z75, 194) (EXC KB6) 2007-2008 01
001 15827045 SEAT, PASS (CASHMERE) CK1 (06-36) (AL0, AN3, Z75, 304) (EXC KB6) 2007-2008 01
001 15827050 SEAT, PASS (EBONY) K1 (06) (AL0, AN3, Y91, Z88, 194) 2007-2008 01
001 15827051 SEAT, PASS (CASHMERE) K1 (06) (AL0, AN3, Y91, Z88, 394) 2007-2008 01
001 15934158 SEAT, PASS (EBONY) CK1, 2 (06-36) (AL0, AN3, 193) 2008-2008 01
001 15934159 SEAT, PASS (CASHMERE) CK1, 2 (06-36) (AL0, AN3, 313, 333) 2008-2008 01
001 15934160 SEAT, PASS (TITANIUM) CK1, 2 (06-36) (AL0, AN3, 833) 2008-2008 01
001 15934161 SEAT, PASS (EBONY/MOROCCO) CK1, 2 (06-36) (AL0, AN3, 223) 2008-2008 01
001 15934162 SEAT, PASS (EBONY/TITANIUM) CK1, 2 (06-36) (AL0, AN3, 843) 2008-2008 01
001 25851685 SEAT, PASS (LINEN/COCOA) CK1 (06-36) (AN3, HNE, ULT, Z75, 415) 2008-2008 01
001 25969426 SEAT, PASS (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AYE) 2008-2008 01
002 COVER, P/SEAT H/RST (PART OF 3) 2008-2008
003 15865481 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 193, 223, 843) 2007-2008 01
003 15865481 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1, 2 (06-36) (AN3, 196, 843, 846) 2007-2008 01
003 15865482 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1, 2 (06-36) (AN3, 313, 333) 2007-2008 01
003 15865483 RESTRAINT, P/SEAT HD (INCLS 2) (TITANIUM) CK1, 2 (06-36) (AN3, 833, 836) 2007-2008 01
003 25798348 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) (LEATHER) (W/ BUTTON) K1 (06) (AL0, AN3, Y91, Z88, 194) 2007-2008 01
003 25798349 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) (INCLS BUTTON) CK1 (06-36) (AN3, 394) 2007-2008 01
003 25865195 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) CK1 (06-36) (AL0, AN3, Z75, 194) (EXC KB6) 2007-2008 01
003 25865196 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1 (06-36) (AN3, Z75, 394) 2007-2008 01
003 25865196 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1 (06-36-43) (AN3, Y91, 394, 397) 2007-2008 01
003 25865197 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) CK1 (06-36) (AN3, Z75, 304) (EXC KB6, XA1) 2007-2008 01
003 25948864 RESTRAINT, P/SEAT HD (INCLS 2) (COCOA) CK1 (06) (AN3, Z75, 415) 2008-2008 01
004 15827107 COVER, P/SEAT BK CUSH (CASHMERE) CK1 (06-36) (AN3, Z75, 304) (EXC CZ2, KB6) 2007-2008 01
004 15827115 COVER, P/SEAT BK CUSH (EBONY) CK1 (06) (AN3, Y91, Z88, 194) 2007-2008 01
004 15827116 COVER, P/SEAT BK CUSH (CASHMERE) CK1 (06) (AN3, Y91, Z88, 394) 2007-2008 01
004 15865828 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 193) 2007-2008 01
004 15865829 COVER, P/SEAT BK CUSH (CASHMERE) CK1, 2 (06-36) (AN3, 313, 333) 2007-2008 01
004 15865830 COVER, P/SEAT BK CUSH (TITANIUM) CK1, 2 (06-36) (AN3, 833) 2007-2008 01
004 15923997 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 223) 2007-2008 01
004 15923998 COVER, P/SEAT BK CUSH (EBONY) CK1, 2 (06-36) (AN3, 843) 2007-2008 01
004 25851673 COVER, P/SEAT BK CUSH (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) (EXC AX4) 2008-2008 01
004 25899517 COVER, P/SEAT BK CUSH (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2007-2008 01
004 25899518 COVER, P/SEAT BK CUSH (CASHMERE) CK1 (06-36) (AN3, CZ2, Z75, 304) (EXC KB6) 2007-2008 01
005 15243902 PAD, P/SEAT BK CUSH CK1, 2, 3 (EXC KB6, HNE, HP2) 2007-2008 01
006 15279351 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/O BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
006 15279352 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 02
006 15279353 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2007-2008 02
006 15279441 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (30I) 2007-2008 02
007 15279347 GUIDE, F/SEAT BK H/RST ADJ ROD (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
007 15279348 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 02
007 15279349 GUIDE, F/SEAT BK H/RST ADJ ROD (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2007-2008 02
007 15279440 GUIDE, F/SEAT BK H/RST ADJ ROD (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (30I) 2007-2008 02
008 25808722 FRAME, P/SEAT BK CUSH (INCLS 9, 15, 16, 42, 43) (INCLS RECLINER, MOTOR LUMBAR SUPPORT) CK1, 2, 3 (AN3) (EXC KB6, HNE) 2007-2008 01
009 20763138 LUMBAR SUB, P/SEAT (PART OF 8) (POWER) (HEAT ONLY) CK1, 2 (06-36) (AN3) (EXC KB6) 2007-2008 01
009 20763141 LUMBAR SUB, P/SEAT (PART OF 8) (POWER) (HEAT COOL) CK1, 2 (06-36) (AN3, HNE) 2007-2008 01
010 15827133 RING, F/SEAT BK CUSH CVR HOG CK1, 2, 3 2007-2008 02
011 15232706 PANEL, P/SEAT BK CUSH FIN (EBONY) CK1, 2 (06-36) (AN3, Y91, Z88, 194) (EXC KB6) 2007-2008 01
011 15232706 PANEL, P/SEAT BK CUSH FIN (EBONY) CK1, 2 (06-36) (AN3, Z75, 194) (EXC KB6) 2007-2008 01
011 15232707 PANEL, P/SEAT BK CUSH FIN (CASHMERE) (INCLS MAP POCKET) CK1, 2 (06-36) (AN3, Y91, Z88, 394) (EXC KB6) 2007-2008 01
011 15232708 PANEL, P/SEAT BK CUSH FIN (CASHMERE) CK1, 2 (06-36) (AN3, Z75, 304) (EXC KB6) 2007-2008 01
011 15933726 PANEL, P/SEAT BK CUSH FIN (INCLS MAP POCKET) (EBONY) (WHEN REPL TRIM WRAP PANELS, REPLACE BOTH DRVR PASS PANELS) CK1, 2 (06-36) (AN3, 193, 223, 843) 2007-2008 01
011 15933727 PANEL, P/SEAT BK CUSH FIN (CASHMERE) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AN3, 313, 333) 2007-2008 01
011 15933728 PANEL, P/SEAT BK CUSH FIN (TITANIUM) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) CK1, 2, 3 (AN3, 833) 2007-2008 01
011 25969424 PANEL, P/SEAT BK CUSH FIN (COCOA) CK1 (06) (AN3, HNE, Z75, 415) (EXC AX4) 2008-2008 01
012 PAD, P/SEAT CUSH (PART OF 44) 2008-2008
013 15827129 COVER, F/SEAT RSR FIN (INCLS 14) (EBONY) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
013 15827130 COVER, F/SEAT RSR FIN (INCLS 14) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 02
013 15827131 COVER, F/SEAT RSR FIN (INCLS 14) (TITANIUM) (RIGHT LEFT TOE KICK) CK1, 2, 3 (83I, 84I) 2007-2008 02
013 15827132 COVER, F/SEAT RSR FIN (INCLS 14) (CASHMERE) (RIGHT LEFT TOE KICK) CK1, 2 (06-36) (30I) 2007-2008 02
013 25851756 COVER, F/SEAT RSR FIN (INCLS 14) (COCOA) CK1 (06) (AN3, 41I) 2008-2008 02
014 RETAINER, F/SEAT ADJR RR FIN CVR (PART OF 13) 2008-2008
015 MOTOR, P/SEAT RECL ACTR (PART OF 8) 2008-2008
016 RECLINER, P/SEAT OTR (INCLS 8) 2008-2008
017 11515764 2007-2008 08
018 RETAINER, F/SEAT ADJR FRT FIN CVR (PART OF 21, 46) 2008-2008
019 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) (P SEAT ADJ SWITCH LABELED 12451498) (11.558) CK1, 2, 3 (AN3) 2007-2008 01
020 25802503 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) (USED WITH 4-WAY POWER LUMBAR) CK1, 2 (06-36) (30I) 2007-2008 01
020 25909573 SWITCH, P/SEAT LUMBAR CONT CK1 (06) (41I) 2008-2008 01
021 15232567 COVER, P/SEAT ADJR FIN (INCLS 18) (EBONY) (POWER) CK1, 2 (06-36) (AN3, 19I, 22I, 84I) 2007-2008 01
021 15232568 COVER, P/SEAT ADJR FIN (INCLS 18) (CASHMERE) (POWER) CK1, 2 (06-36) (AN3, 31I, 33I, 39I) 2007-2008 01
021 15232569 COVER, P/SEAT ADJR FIN (INCLS 18) (TITANIUM) (POWER) CK1, 2 (06-36) (AN3, 83I) 2007-2008 01
021 15232570 COVER, P/SEAT ADJR FIN (INCLS 18) (CASHMERE) (POWER) CK1, 2 (06-36) (AN3, 30I) 2007-2008 01
021 25851773 COVER, P/SEAT ADJR FIN (INCLS 18) (COCOA) CK1 (06) (AN3, 41I) 2008-2008 01
022 10340136 KNOB, F/SEAT RECL (EBONY) (11.377) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 02
022 15222984 KNOB, F/SEAT RECL (CASHMERE) (11.377) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 02
022 15222985 KNOB, F/SEAT RECL (TITANIUM) (11.377) CK1, 2, 3 (83I) 2007-2008 02
022 15786548 KNOB, F/SEAT RECL (CASHMERE) CK1, 2 (06-36) (30I) 2007-2008 02
022 15889098 KNOB, F/SEAT RECL (COCOA) (11.377) CK1, 2, 3 (41I) 2008-2008 02
023 10325879 KNOB, P/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
023 15222980 KNOB, P/SEAT ADJR SW (CASHMERE) (11.558) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 01
023 15222981 KNOB, P/SEAT ADJR SW (TITANIUM) (11.558) CK1, 2 (06-36) (833) 2007-2008 01
023 15786549 KNOB, P/SEAT ADJR SW (CASHMERE) CK1, 2 (06-36) (30I) 2007-2008 01
023 15889097 KNOB, P/SEAT ADJR SW (COCOA) (11.558) CK1, 2, 3 (41I) 2008-2008 01
024 RETAINER, F/SEAT ADJR FIN CVR (PART OF 25) 2008-2008
025 15232592 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 24) (CASHMERE) (OUTBOARD) CK1 (06-36) (30I) 2008-2008 01
025 15243872 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 24) (CASHMERE) (INBOARD) CK1 (06-36) (30I) 2008-2008 01
026 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (P/SEAT ADJR FIN CVR) 2007-2008 01
027 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (P/SEAT CUSH OTR FIN PNL) 2007-2008 03
028 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2 (AL0) 2007-2008 01
029 11517996 2007-2008 08
030 COVER, P/SEAT OTR ADJR TRK RR FIN 2007-2008
031 15827135 BRACKET, P/SEAT FRT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2007-2008 01
032 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
032 15243859 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (31I, 33I, 39I) 2008-2008 01
032 15243860 COVER, P/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2007-2008 01
032 15243861 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1 (06-36) (30I) 2008-2008 01
032 25851776 COVER, P/SEAT INR ADJR TRK FRT FIN (COCOA) CK1 (06) (AN3, 41I) (EXC AX4) 2008-2008 01
033 25902019 HARNESS, P/SEAT ADJR WRG CK1, 2 (06-36) (AN3) (EXC KB6) 2007-2008 01
033 25902020 HARNESS, P/SEAT ADJR WRG CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2008-2008 01
034 25966545 ADJUSTER, P/SEAT (POWER 6-WAY) (INCLS MOTORS) CK1, 2, 3 (AN3) 2007-2008 01
034 25966553 ADJUSTER, P/SEAT (POWER) CK1 (06-36-43) (AN3) 2008-2008 01
035 15845155 BRACKET, P/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 2007-2008 01
036 11513599 2007-2008 02
037 11516075 2007-2008 02
038 MODULE, INFL RST P/SEAT SUPPRESSION (PART OF 44) 2008-2008
039 11517996 1, 2 (06-36) 2007-2008 01
040 19121542 BELT KIT, P/SEAT (BKL SI) (CASHMERE) (W/ CK1, 2 (AL0, 31I, 33I, 39I) 2007-2008 01
040 19121543 BELT KIT, P/SEAT (BKL SI) (TITANIUM) (W/ CK1, 2 (06) (AN3, 83I) 2007-2008 01
040 19121544 BELT KIT, P/SEAT (BKL SI) (CASHMERE) (W/ CK1 (06-36) (AN3, AL0, 30I) 2007-2008 01
040 19180588 BELT KIT, P/SEAT (BKL SI) (COCOA) CK1 (06) (AN3, Z75, 415) 2008-2008 01
041 15827059 FRAME, P/SEAT CUSH CK1, 2, 3 2007-2008 01
042 RECLINER, P/SEAT INR (INCLS 8) 2008-2008
043 RECLINER, P/SEAT (INCLS 8) 2008-2008
044 19209353 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 38) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2008-2008 01
044 25826416 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 38) (INCLS PAD) (USED W/ LEATHER INTERIOR) CK1, 2, 3 (AL0) (EXC KB6) 2007-2008 01
044 25826417 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 12, 38) (INCLS PAD) (USED W/ CLOTH INTERIOR) CK1, 2, 3 (AL0) (EXC KB6) 2007-2008 01
045 15827137 BRACKET, P/SEAT RECL (I/B) CK1, 2, 3 2007-2008 01
046 15243828 COVER, P/SEAT INR RECL FIN (INCLS 18) (EBONY) (INBOARD) CK1, 2 (06-36) (19I, 22I, 84I) 2007-2008 01
046 15243829 COVER, P/SEAT INR RECL FIN (INCLS 18) (CASHMERE) (INBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2008 01
046 15243830 COVER, P/SEAT INR RECL FIN (INCLS 18) (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2007-2008 01
046 15243831 COVER, P/SEAT INR RECL FIN (INCLS 18) (CASHMERE) CK1, 2, 3 (30I) 2007-2008 01
046 25851775 COVER, P/SEAT INR RECL FIN (INCLS 18) (COCOA) CK1, 2, 3 (AN3, 41I) 2008-2008 01
047 15855909 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
047 15855911 PROTECTOR, P/SEAT RECL FIN CVR (EBONY) CK1, 2, 3 2007-2008 02
048 15232559 HEATER, P/SEAT CUSH CK1, 2, 3 (AN3) (EXC HNE, KB6) 2007-2008 01
049 25911156 HEATER, P/SEAT BK CUSH (HEAT ONLY) CK1, 2, 3 (AN3) (EXC KB6) 2007-2008 01
050 15827109 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC CZ2, KB6) 2007-2008 01
050 15827118 COVER, P/SEAT CUSH (EBONY) CK1 (06) (AN3, Y91, Z88, 194) 2007-2008 01
050 15827119 COVER, P/SEAT CUSH (CASHMERE) CK1 (06) (AN3, Y91, Z88, 394) 2007-2008 01
050 15865832 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 193) 2007-2008 01
050 15865833 COVER, P/SEAT CUSH (CASHMERE) CK1, 2, 3 (AN3, 313, 333) 2007-2008 01
050 15865834 COVER, P/SEAT CUSH (TITANIUM) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 833) 2007-2008 01
050 15923999 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 223) 2007-2008 01
050 15924000 COVER, P/SEAT CUSH (EBONY) (VINYL INBOARD SIDE FACING) CK1, 2, 3 (AN3, 843) 2007-2008 01
050 25851690 COVER, P/SEAT CUSH (COCOA) CK1 (06-36) (AN3, 415) 2008-2008 01
050 25899511 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AN3, Z75, 194) (EXC KB6) 2007-2008 01
050 25899511 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AN3, XA1, A75, 194, CZ2) (EXC KB6) (EXPORT) 2008-2008 01
050 25899512 COVER, P/SEAT CUSH (CASHMERE) CK1 (06-36) (AN3, Z75, 304) (EXC KB6) 2007-2008 01
051 25815788 CAP, F/SEAT ADJR TRK END (BLACK) CK1, 2, 3 2007-2008 02
