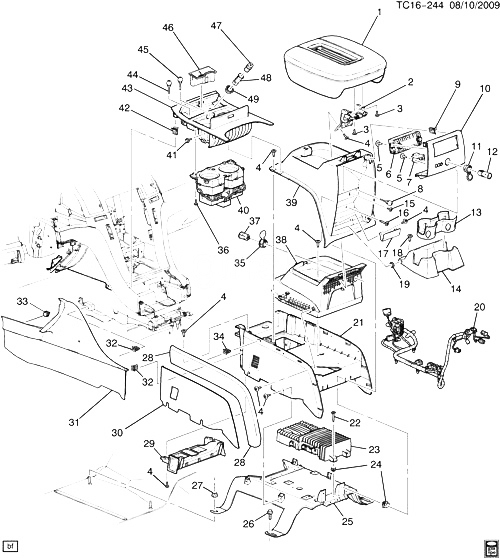

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
LID, F/TOP STOW COMPT (PART OF 39) (INCLS 2, 3) ( |
|
2008-2009 |
|
| 002 |
|
HINGE, F/FLR CNSL COMPT DR (PART OF 1, 39) |
|
2008-2009 |
|
| 003 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 1, 39)
|
2008-2009 |
08 |
|
| 004 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 39)
|
2008-2009 |
30 |
|
| 005 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (HTR A/C CONT OPG CVR)
|
2008-2009 |
06 |
|
| 006 |
15886900 |
MODULE, HTR A/C RDO CONT |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 006 |
15886900 |
MODULE, HTR A/C RDO CONT (2.560) |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 007 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (ACDelco #10375379) |
CK1, 2, 3 |
2008-2008 |
01 |
| 008 |
22596346 |
BUMPER, F/FLR RR CNSL A/RST (PART OF 39) (10.242) |
CK1 (06-36) (D07, Y91, Z75) |
2008-2009 |
02 |
| 009 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10)
|
2008-2009 |
02 |
|
| 010 |
15833953 |
COVER, HTR A/C CONT OPG (INCLS 9) |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 011 |
10364311 |
DOOR, ACSRY PWR RCPT (CHROME RING W/BLACK CAP) |
CK1 (06) (ULT, Z75) |
2008-2008 |
01 |
| 012 |
25774623 |
RECEPTACLE, ACSRY PWR (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2008-2009 |
02 |
|
| 013 |
15133100 |
LINER, F/FLR CNSL RR CUP HLDR (PART OF 14, 39) |
CK1 (06-36) (Z75) |
2008-2009 |
01 |
| 014 |
15133093 |
HOLDER, F/FLR CNSL RR CUP (INCLS 13, 18, 19) (PART OF 39) |
CK1 (06-36) (Z75) |
2008-2009 |
01 |
| 015 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 39)
|
2008-2009 |
02 |
|
| 016 |
11589106 |
SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 39) (10.774)
|
2008-2009 |
02 |
|
| 017 |
|
DETENT, R/CMPT ACC DR HDL (PART OF 39) |
|
2008-2009 |
|
| 018 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 14, 39)
|
2008-2009 |
02 |
|
| 019 |
15133101 |
BUSHING, F/FLR CNSL CUP HLDR DR HGE (PART OF 14, 39) |
CK1 (06) (D07, Z75) |
2008-2009 |
01 |
| 020 |
15929132 |
HARNESS, F/FLR CNSL WRG (PART OF 39) |
CK1 (06) (U42, Z75) (EXC ULT) |
2008-2009 |
01 |
| 020 |
25912292 |
HARNESS, F/FLR CNSL WRG (PART OF 39) |
CK1 (06) (Z75) (EXC U42, ULT) |
2008-2009 |
01 |
| 021 |
|
PANEL, F/FLR CNSL TR (PART OF 39) |
|
2008-2009 |
|
| 022 |
11589106 |
SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 39) (10.774)
|
2008-2009 |
04 |
|
| 023 |
20808898 |
|
CK1 (06) (ULT, Z75) |
2008-2008 |
01 |
| 024 |
|
|
|
2008-2009 |
|
| 025 |
|
BRACKET, F/FLR CNSL (PART OF 39) |
|
2008-2009 |
|
| 026 |
11562473 |
|
CK1, 2, 3 (AE7, AN3, AZ3, A95) (EXC HP2) |
2008-2009 |
04 |
| 027 |
15035434 |
|
CK1, 2, 3 |
2008-2009 |
04 |
| 028 |
25830462 |
PANEL, F/FLR CNSL SI TR (INCLS 34) (PART OF 39) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 028 |
25830464 |
PANEL, F/FLR CNSL SI TR (INCLS 34) (PART OF 39) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 029 |
25830634 |
DUCT, AIR INL (PART OF 39) |
CK1 (06) (ULT, Z75) |
2008-2009 |
01 |
| 030 |
|
CARPET, F/FLR CNSL COMPT (PART OF 39) |
|
2008-2009 |
|
| 031 |
15876585 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32, 33) ( |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 031 |
15876587 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32, 33) ( |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 032 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31)
|
2008-2009 |
04 |
|
| 033 |
11562257 |
RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 31) (19.5 X 30.4 X 1.8) (14.683) |
CK1 (Z75) |
2008-2009 |
03 |
| 034 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 28, 39)
|
2008-2009 |
10 |
|
| 035 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 39) (EBONY) (INCLS COVER)
| CK1, 2, 3 (D07) |
2008-2008 |
01 |
|
| 036 |
|
|
|
2008-2009 |
|
| 037 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 39) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 038 |
|
TRAY, F/FLR CNSL STOR (PART OF 39) |
|
2008-2009 |
|
| 039 |
25999727 |
COMPARTMENT, F/FLR (INCLS 1-4, 8, 13-25, 28-30, 34, 35, 37, 38) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2008-2009 |
01 |
| 040 |
|
HOLDER, F/FLR CNSL FRT CUP (PART OF 43) |
|
2008-2009 |
|
| 041 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 43) |
|
2008-2009 |
04 |
| 042 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 43)
|
2008-2009 |
04 |
|
| 043 |
25991706 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 36, 40-42, 44-46, 48, 49) (SOLITARE) |
CK1 (06) (ULT, 41I) |
2008-2009 |
01 |
| 044 |
15683368 |
BUMPER, F/FLR CNSL COMPT DR (PART OF 43) (8.80 DIA) (CLOSED-STOP) (FRAME) |
CK1 (06) |
2008-2009 |
02 |
| 045 |
|
BUMPER, F/FLR CNSL CUP HLDR (PART OF 43) |
|
2008-2009 |
|
| 046 |
15132973 |
|
CK1 (Z75) |
2008-2009 |
01 |
| 047 |
11516140 |
LIGHTER, CIG (MAY NEED TO CHANGE RECEPTACLE IF LIGHTER DOESNT WORK OR USE |
CK1, 2, 3 |
2008-2008 |
01 |
| 047 |
11516140 |
LIGHTER, CIG (BLACK) (W/LARGE, PLASTIC KNOB END 21.0MM) (9.709) (SERV CMP OF |
CK1, 2, 3 |
2008-2009 |
01 |
| 048 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 43) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2008-2009 |
02 |
|
| 048 |
25776667 |
RECEPTACLE, ACSRY PWR (PART OF 43) (2 TERMINALS)
| CK1 (06) (ULT) |
2008-2009 |
01 |
|
| 049 |
25749635 |
RETAINER, ACSRY PWR RCPT (PART OF 43) (EBONY) (W/O CAP)
| CK1, 2, 3 |
2008-2009 |
01 |
|
