| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

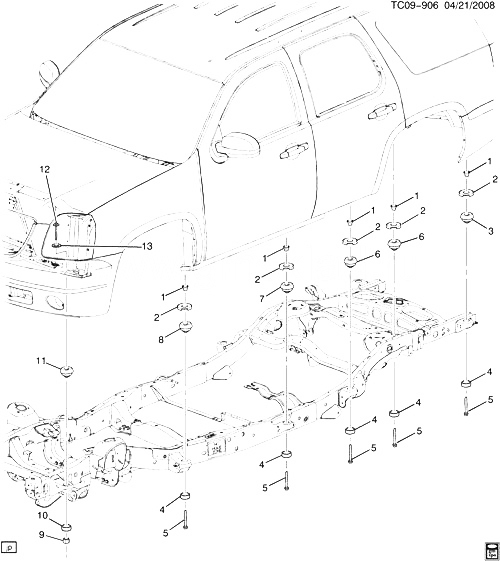

| 001 |
15924986 |
RETAINER, BODY BOLT |
CK1, 2 (06-36) |
2007-2009 |
10 |
| 002 |
15018263 |
SHIM, BODY MT (3MM THICK)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 002 |
15018264 |
SHIM, BODY MT (1.5MM THICK) |
CK1, 2, 3 |
2007-2009 |
AR |
| 003 |
15864038 |
CUSHION, BODY BOLT UPR (LOCATIONS # 5) (COLOR CODE WHITE)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 004 |
15201791 |
CUSHION, BODY BOLT LWR FRT (71MM OD) |
CK107, 209 (06) |
2007-2009 |
02 |
| 004 |
15201791 |
CUSHION, BODY BOLT LWR LOCATION #2 (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
02 |
| 004 |
15201791 |
CUSHION, BODY BOLT LWR LOCATION #3 (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
02 |
| 004 |
15201791 |
CUSHION, BODY BOLT LWR LOCATION #4 (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
02 |
| 004 |
15201791 |
CUSHION, BODY BOLT LWR LOCATION #5 (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
02 |
| 004 |
15201791 |
CUSHION, BODY BOLT LWR (71MM OD) |
CK1, 2 (06-36) |
2007-2009 |
10 |
| 005 |
11562587 |
|
CK1, 2 (06-36) |
2007-2009 |
10 |
| 006 |
15201794 |
CUSHION, BODY BOLT UPR (LOCATIONS # 3 4) (COLOR CODE PINK)
| CK1 (06) |
2007-2009 |
04 |
|
| 007 |
15201005 |
CUSHION, BODY BOLT UPR (LOCATION # 2) (COLOR CODE ORANGE) |
CK1 (06) |
2007-2009 |
02 |
| 008 |
15201797 |
CUSHION, BODY BOLT UPR (LOCATION # 1) (GREEN)
| CK1 (06) |
2007-2009 |
02 |
|
| 009 |
03537772 |
|
|
2007-2009 |
02 |
| 010 |
15201791 |
CUSHION, BODY BOLT LWR FRT (71MM OD) |
CK107, 209 (06) |
2007-2009 |
02 |
| 011 |
15837581 |
CUSHION, BODY BOLT UPR FRT (VIOLET) (1.270)
| CK107 (06) |
2007-2009 |
02 |
|
| 012 |
11562547 |
|
|
2007-2009 |
02 |
| 013 |
11562546 |
WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (BODY MT) |
|
2007-2009 |
02 |
