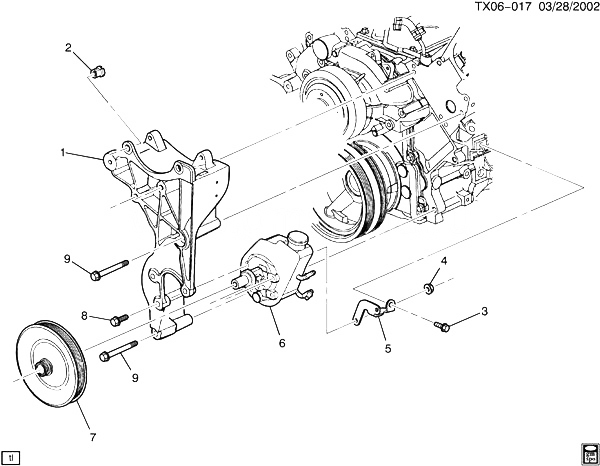

(TX06-017) - 2007-2008 CK1 КРЕПЛЕНИЕ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (LC9/5.3-3,LH6/5.3M,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE (AWD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 12554030 | BRACKET, GEN P/S PUMP (INCLS 2) (INCLS SPACER) | CK1 (L92) | 2007-2008 | 01 |
| 002 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 1)| CK1 (L92) |
2007-2008 |
02 |
|
| 002 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 1) (2.277)| CK1 (L92) |
2007-2008 |
02 |
|
| 003 | 11515764 | 2007-2009 | 01 | ||
| 004 | 11514597 | 2007-2009 | 02 | ||
| 005 | 12554032 | BRACKET, P/S PUMP RR | CK1, 2, 3 (L92) | 2007-2008 | 01 |
| 006 | PUMP, P/S ( | 2007-2009 | |||
| 007 | 12604004 | PULLEY, P/S PUMP (PHY ID 4004)| CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) |
2008-2008 |
01 |
|
| 008 | 11515767 | 2007-2009 | 03 | ||
| 009 | 11519214 | 2007-2009 | 04 |
