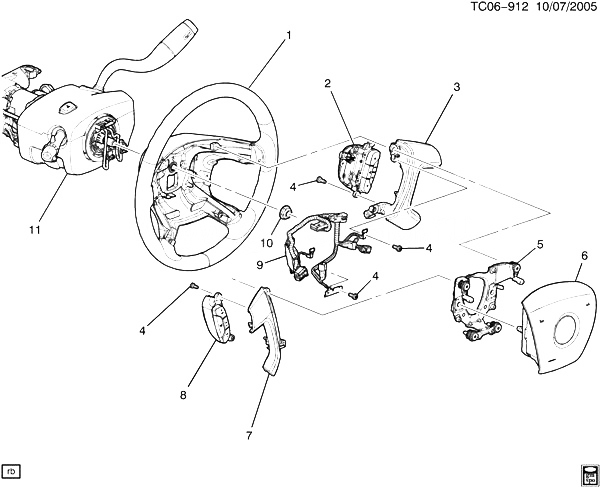

(TC06-912) - 2007-2009 CK1 РУЛЕВОЕ КОЛЕСО (WOOD TRIM N30, HEATED KA9) CADILLAC - ESCALADE (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15917946 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) (W/HTR MOD) CK1 (KA9, K34, N30, UK3, Z75, 19I) 2007-2008 01
001 15917947 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 30I) 2007-2008 01
001 25776325 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1 (KA9, K34, N30, UK3, Y91, Z88, 19I) 2008-2008 01
001 25776326 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (KA9, K34, N30, UK3, Y91, Z88, 39I) 2008-2008 01
001 25784918 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2008-2008 01
002 15819311 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1 (K34, N30, UK3, Y91, Z88, 19I) 2007-2008 01
002 15819311 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1 (K34, N30, UK3, Y91, Z88, 19I) 2007-2008 01
002 15824115 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (K34, N30, UK3, Z75, 30I) 2007-2008 01
002 15824115 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2007-2008 01
002 15824115 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (K34, N30, UK3, Z75, 30I) 2007-2008 01
002 15824115 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2007-2008 01
002 15824116 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1 (K34, N30, UK3, Z75, 19I) 2007-2008 01
002 15824116 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1 (K34, N30, UK3, Z75, 19I) 2007-2008 01
002 15824118 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (K34, N30, UK3, Z88, Y91, 39I) 2007-2008 01
002 15824118 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (K34, N30, UK3, Z88, Y91, 39I) 2007-2008 01
003 15255097 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
003 15255102 COVER, STRG WHL LWR (PART OF 1) (TRINITY) CK1 2007-2009 01
003 15844710 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
003 25824700 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
003 25826421 COVER, STRG WHL LWR (PART OF 1) (SOLITARE) CK1 2008-2009 01
004 15257875 CK1, 2, 3 2007-2009 04
005 15255031 CONTACT, STRG WHL CK1, 2, 3 2007-2009 01
006 15874515 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874515) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
006 15874516 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874516) (DUAL LEVEL) (INCLS EMBLEM) (16.712) CK1 (06-36) (Y91, Z75, 30I) 2007-2009 01
006 15874519 MODULE, STRG WHL INFL RST (EBONY) (LABELED 15874519) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
006 15874520 MODULE, STRG WHL INFL RST (COCOA) (LABELED 15874520) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
006 25784920 MODULE, STRG WHL INFL RST (COCOA) (DUAL LEVEL) (16.712) CK1 (06) (Z75, 41I) 2008-2009 01
006 25917968 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917968) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 19I) 2007-2009 01
006 25917969 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917969) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 39I) 2007-2009 01
006 25917971 MODULE, STRG WHL INFL RST (EBONY) (LABELED 25917971) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 19I) 2007-2009 01
006 25917972 MODULE, STRG WHL INFL RST (COCOA) (LABELED 25917972) (DUAL LEVEL) (16.712) CK1 (06-43) (Y91, Z88, 39I) 2007-2009 01
007 15255034 COVER, STRG WHL LWR (PART OF 1) (EBONY) CK1, 2, 3 2007-2009 01
007 15255100 COVER, STRG WHL LWR (PART OF 1) (TRINITY) CK1 2007-2009 01
007 15844709 COVER, STRG WHL LWR (PART OF 1) (SILVER) CK1, 2, 3 2007-2009 01
007 25824698 COVER, STRG WHL LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 2008-2009 01
007 25826420 COVER, STRG WHL LWR (PART OF 1) (SOLITARE) CK1 2008-2009 01
008 15824110 SWITCH, CRCONT (PART OF 1) CK1 (KA9, K34, N30, UK3, Z75, 30I) 2007-2008 01
008 15824111 SWITCH, CRCONT (PART OF 1) CK1 (KA9, K34, N30, UK3, Y91, Z88, 39I) 2008-2008 01
008 15824112 SWITCH, CRCONT (PART OF 1) (ACDelco #D1959E) CK1 (KA9, K34, N30, UK3, Z75, 19I) 2007-2008 01
008 15824113 SWITCH, CRCONT (PART OF 1) (ACDelco #D1960E) CK1 (KA9, K34, N30, UK3, Y91, Z88, 19I) 2007-2008 01
009 MODULE, STRG WHL HT CONT (PART OF 1) 2007-2009
010 11609658 CK1, 2, 3 2007-2009 01
010 11609659 CK1, 2, 3 2007-2008 01
011 COLUMN, STRG ( 2007-2009
