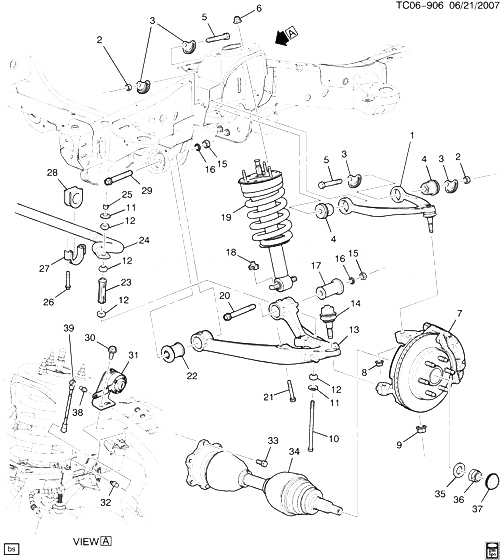

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15096197 |
ARM, FRT UPR CONT (INCLS 4) (INCLS BALL JOINT) |
CK1 |
2007-2009 |
01 |
| 001 |
25812726 |
ARM, FRT UPR CONT (INCLS 4) (BALL JOINT IS INCLUDED PER PRINTS)
| CK1 |
2007-2009 |
01 |
|
| 002 |
|
|
|
2007-2009 |
|
| 003 |
|
CAM, FRT UPR CONT ARM ADJ (*KIT2) |
|
2007-2009 |
|
| 004 |
|
BUSHING, FRT UPR CONT ARM (PART OF 1) |
|
2007-2009 |
|
| 005 |
|
|
|
2007-2009 |
|
| 006 |
11561435 |
|
|
2007-2009 |
06 |
| 007 |
|
KNUCKLE, STRG ( |
|
2007-2009 |
|
| 008 |
03537772 |
|
CK1, 2, 3 |
2007-2009 |
02 |
| 009 |
|
|
|
2007-2009 |
|
| 010 |
|
|
|
2007-2009 |
|
| 011 |
|
WASHER, FRT STAB SHF LINK (*KIT1) |
|
2007-2009 |
|
| 012 |
|
INSULATOR, FRT STAB SHF LINK (*KIT1) |
|
2007-2009 |
|
| 013 |
10355407 |
ARM, FRT LWR CONT (INCLS 14, 17, 22) (THIS PART IS FOR ALUMINUM LCA ONLY) |
K107 (06) |
2007-2009 |
01 |
| 013 |
25997508 |
ARM, FRT LWR CONT (INCLS 14, 17, 22) (CAST ALUMINU)
| K107 (06) |
2007-2009 |
01 |
|
| 014 |
|
STUD, FRT LWR CONT ARM BALL (PART OF 13) (*KIT3) |
|
2007-2009 |
|
| 015 |
11516133 |
|
CK1, 2, 3 |
2007-2009 |
04 |
| 016 |
15567836 |
WASHER, FRT LWR CONT ARM (16.38IDX23.87ODX3.27) (6.168)
| CK1, 2, 3 |
2007-2009 |
04 |
|
| 017 |
|
BUSHING, FRT LWR CONT ARM (PART OF 13) |
|
2007-2009 |
|
| 018 |
11561429 |
|
CK1 |
2007-2009 |
04 |
| 019 |
|
|
|
2007-2009 |
|
| 020 |
15733533 |
|
CK1, 2, 3 |
2007-2009 |
02 |
| 021 |
11610404 |
|
|
2007-2009 |
04 |
| 022 |
|
BUSHING, FRT LWR CONT ARM (PART OF 13) |
|
2007-2009 |
|
| 023 |
|
SPACER, FRT STAB SHF LINK (*KIT1) |
|
2007-2009 |
|
| 024 |
10369554 |
SHAFT, FRT STAB |
CK1 (06-36) (EXC HP2) |
2008-2009 |
01 |
| 024 |
15252732 |
SHAFT, FRT STAB |
CK1 (HP2) |
2008-2009 |
01 |
| 025 |
|
|
|
2007-2009 |
|
| 026 |
11609701 |
|
|
2007-2009 |
04 |
| 027 |
11570935 |
CLAMP, FRT STAB SHF (WHEN USING NEW CLAMP 11570935 USE BOLT # 11570934) |
CK1 |
2008-2009 |
02 |
| 028 |
15124516 |
INSULATOR, FRT STAB SHF (USE WITH 36 MM SHAFT)
| CK1 (06-36) |
2007-2009 |
02 |
|
| 029 |
15733534 |
|
CK1, 2, 3 |
2007-2009 |
02 |
| 030 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) |
|
2007-2009 |
02 |
| 031 |
15098628 |
SENSOR, ELEK SUSP FRT POSN (INCLS 38, 39)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 031 |
15098629 |
SENSOR, ELEK SUSP FRT POSN (INCLS 38, 39)
| CK1 (06-36) (Z55, Z95) |
2008-2009 |
01 |
|
| 032 |
11609404 |
STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) |
CK1 (06-36) (Z55, Z95) |
2008-2009 |
02 |
| 033 |
11509419 |
|
|
2007-2009 |
06 |
| 034 |
15868123 |
SHAFT, FRT WHL DRV ( |
K1 |
2007-2009 |
02 |
| 035 |
15522089 |
WASHER, FRT WHL DRV SHF (6.063)
| K1, 2, 3 |
2007-2009 |
02 |
|
| 036 |
11609826 |
|
K1, 2, 3 |
2007-2009 |
02 |
| 037 |
|
CAP, F/AXL HUB |
|
2007-2009 |
|
| 038 |
|
STUD, ELEK SUSP FRT POSN SEN LINK BALL (PART OF 31) |
|
2007-2009 |
|
| 039 |
15815637 |
LINK, ELEK SUSP FRT POSN SEN (PART OF 31) |
CK1 (06-36) (Z55, Z95) |
2008-2009 |
02 |
| K01 |
25918049 |
LINK, FRT STAB SHF (INCLS 10-12, 23, 25)
| CK1 |
2007-2009 |
02 |
|
| K02 |
12472859 |
CAM KIT, FRT UPR CONT ARM ADJ (INCLS 2, 3, 5) (INCLS 8-CAMS, 4-BOLTS 4-NUTS) (LOCATING PIN PART OF FRAME) |
CK1, 2, 3 |
2007-2009 |
02 |
| K03 |
15922557 |
STUD KIT, FRT LWR CONT ARM BALL (INCLS 9, 14) (THIS PART IS FOR CAST IRON LCA ONLY) |
CK1 |
2007-2008 |
01 |
