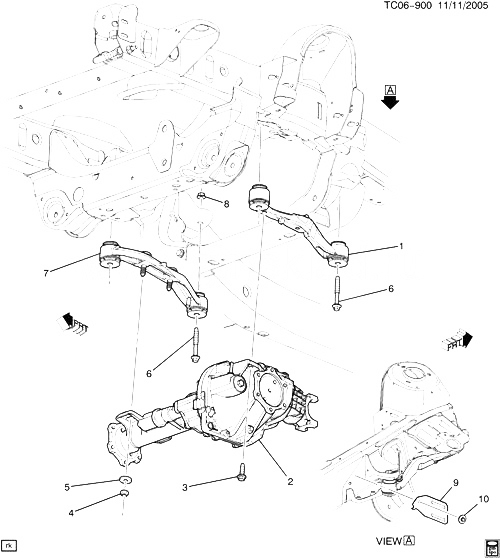

(TC06-900) - 2007-2009 K1 DRIVE AXLE MOUNTING/FRONT CADILLAC - ESCALADE (AWD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15201933 | BRACKET, FRT DIFF CARR ( | K1 | 2007-2009 | 01 |
| 002 | AXLE, FRT ( | 2007-2009 | |||
| 003 | 11519538 | K1 | 2007-2008 | 02 | |
| 004 | 11562485 | K1 | 2007-2009 | 02 | |
| 005 | 11610231 | WASHER - FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (FRT DIFF CARR BRKT)|
| 2007-2009 |
02 |
|
| 006 | 11561577 | K1 | 2007-2009 | 04 | |
| 007 | 15201932 | BRACKET, FRT DIFF CARR ( | K1 | 2007-2009 | 01 |
| 008 | 11514598 | K1 | 2007-2009 | 04 | |
| 009 | 15847253 | SHIELD, FRM FRT HT | K1 | 2007-2009 | 01 |
| 010 | 11517560 | SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (FRM FRT H/SHLD) | 2007-2009 | 01 |
