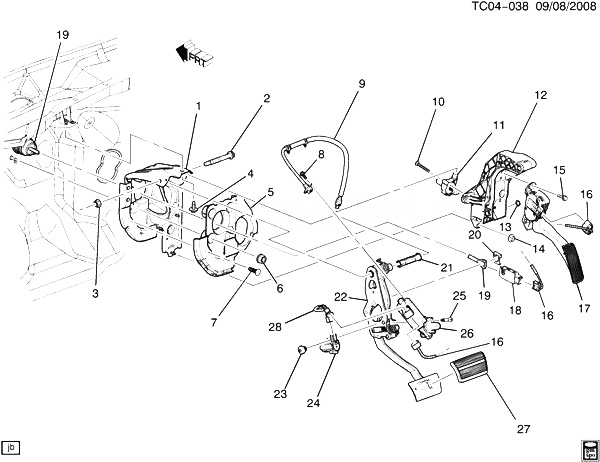

(TC04-038) - 2008-2009 CK1,2(06-36) ТОРМОЗНАЯ ПЕДАЛЬ (POWER ADJUSTABLE PEDAL JF4, AN3) CADILLAC - ESCALADE (AWD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25863989 BRACKET, BRK ACCEL PED (INCLS 5, 7) ( CK1 (AN3, JD9, JF3, JF7, JF4) 2008-2009 01
001 25863989 BRACKET, BRK ACCEL PED (INCLS 5, 7) ( CK1 (AN3, JD9, JF3, JF7, JF4) 2008-2009 01
002 15000145 CK1, 2, 3 2008-2009 01
003 11514598 CK1, 2, 3 2008-2009 01
004 11517182 CK1, 2, 3 2008-2009 01
005 INSULATOR, DA PNL (PART OF 1) 2008-2009
006 11517996 CK1, 2, 3 2008-2009 04
007 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (PART OF 1) 2008-2009
008 2008-2009
009 CABLE, BRK PED ADJR ACTR (PART OF 22) 2008-2009
010 11562023 CK1, 2, 3 2008-2009 02
011 15123616 ACTUATOR PKG, THROT CK1, 2, 3 2008-2009 01
012 25863992 BRACKET KIT, ACCEL PED (IF REPL ACCL PDL BRKT W/2-BOLT CBL ATTACHMENT AT ADJ PDL MOTOR, REQUIRES CORRESPONDING BRK PEDAL ASM.) CK1 (MYC, M30, JF4) 2008-2009 01
013 11505213 2008-2009 02
014 15685170 2008-2009 03
015 11516424 2008-2009 02
016 25877769 HARNESS, FUSE BLK WRG ( CK1, 2 (06-36) (JF4) (EXC HP2) 2008-2008 01
017 25832864 PEDAL, ACCEL (INCLS 13) (INCLS POSITION SENSOR) CK1, 2, 3 2008-2009 01
018 25981009 SWITCH, S/LP (ACDelco #D1539J) CK1 (06-36) 2008-2009 01
019 BOOSTER, P/B ( 2008-2009
020 11569844 RETAINER, BRK PED PUSH ROD (WITH BOLT) CK1, 2, 3 2008-2009 01
021 15200851 BUSHING, BRK PED PIV CK1 (JD9, JF3, JF4, JF7) 2008-2009 01
022 25968689 PEDAL, BRK (INCLS 8-9, 24-28) (IF REPL BRK PDL W/ 2-BOLT CBL ATTCHMNT AT ADJ PDL MOTOR, REQUIRES ACCEL BRKT KIT W/ CBL, PN 25863992) CK1 (AN3, JD9, JF3, JF7, JF4) 2008-2009 01
023 11516424 2008-2009 02
024 88982977 SENSOR, BRK PED POSN (PART OF 22) CK1, 2, 3 2008-2009 01
025 2008-2009
026 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 22) 2008-2009
027 88982976 PAD, BRK PED (PART OF 22) CK1 (JD9, JF3, JF4, JF7, J92) 2008-2009 01
028 HARNESS, BRK PED POSN SEN (PART OF 22) 2008-2009
