| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20803171 |

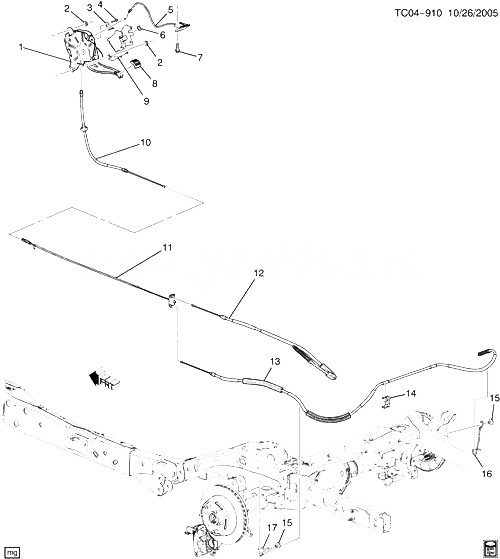

MODULE, PARK BRK CONT (INCLS 3, 5, 8, 10) (EBONY) (ACDelco #20803171)
| CK1 (06-36) (19I, 22I, 30I, 31I, 33I, 39I, 83I, 84I) |
2008-2008 |
01 |
|
| 001 |
20805734 |
MODULE, PARK BRK CONT (INCLS 3, 5, 8, 10) (LINEN) |
CK1 (06-36) (41I) |
2008-2009 |
01 |
| 002 |
11516780 |
|
|
2007-2009 |
03 |
| 003 |
15045983 |
SWITCH, PARK BRK (PART OF 1) |
CK1, 2, 3 |
2007-2008 |
01 |
| 004 |
09418944 |
SCREW, HWH, SELF TAP, #10-16X1, 3/8 O.D., M6010M, ZN (PARK BRK ACTR POSN SW) |
|
2007-2009 |
01 |
| 005 |
15929213 |
HANDLE, PARK BRK REL (PART OF 1) (EBONY) (INCLS CBL)
| CK1 (06-36) (19I, 22I, 30I, 31I, 33I, 39I, 41I, 83I, 84I) |
2008-2008 |
01 |
|
| 005 |
25887810 |
HANDLE, PARK BRK REL (PART OF 1) (LINEN) |
CK1 (06-36) (41I) |
2008-2009 |
01 |
| 006 |
11609411 |
|
|
2007-2009 |
01 |
| 007 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (PARK BRK REL HDL HSG) |
|
2007-2009 |
01 |
| 008 |
15298817 |
PAD, PARK BRK LVR PED (PART OF 1) |
CK1 |
2007-2009 |
01 |
| 009 |
25867232 |
BRACKET, DA WRG HARN J/BLK |
CK1, 2, 3 (EXC E29) |
2007-2009 |
01 |
| 010 |
|
CABLE, PARK BRK FRT (PART OF 1) |
|
2007-2009 |
|
| 011 |
15183623 |
CABLE, PARK BRK INTER (PRK BRK INTER CABLE 1190MM W/O CABLE CONNECTOR) (FOR 2ND DES SEE 25952157)
| CK107 (06) (1ST DES) |
2008-2008 |
01 |
|
| 011 |
25952157 |
CABLE, PARK BRK INTER (PRK BRK INTER CABLE 990MM W/O CABLE CONNECTOR) (FOR 1ST DES SEE 15183623) |
CK107 (06) (2ND DES) |
2008-2008 |
01 |
| 012 |
20756278 |
CABLE, PARK BRK RR (PRK BRK INTER CABLE W/O CABLE CONNECTOR, CK107 VEHICLES 990MM CK109 VEHICLES 1345MM) (FOR 1ST DES SEE 15856908) |
CK1 (06-36) (2ND DES) |
2008-2008 |
01 |
| 012 |
25793731 |
CABLE, PARK BRK RR (PRK BRK INTER CABLE W/O CABLE CONNECTOR, CK107 VEHICLES 1190MM CK109 VEHICLES 1545MM) (FOR 2ND DES SEE 20756278) |
CK1 (06-36) (1ST DES) |
2008-2008 |
01 |
| 013 |
25864664 |
CABLE, PARK BRK RR (PRK BRK INTER CABLE W/O CABLE CONNECTOR, CK107 VEHICLES 1190MM CK109 VEHICLES 1545MM) (FOR 2ND DES SEE 25952160) |
CK1 (06-36) (1ST DES) |
2008-2008 |
01 |
| 013 |
25952160 |
CABLE, PARK BRK RR (PRK BRK INTER CABLE W/O CABLE CONNECTOR, CK107 VEHICLES 990MM CK109 VEHICLES 1345MM) (FOR 1ST DES SEE 25864664)
| CK1 (06-36) (2ND DES) |
2008-2008 |
01 |
|
| 014 |
15043173 |
CLIP, PARK BRK RR CBL (W/O HOLE) (W/3 OPENINGS) |
CK1 (06-36) |
2007-2009 |
02 |
| 015 |
11517560 |
SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (PARK BRK RR CBL GDE) |
|
2007-2009 |
02 |
| 016 |
15087067 |
GUIDE, PARK BRK RR CBL (RH REAR FRAME RAIL) |
CK1 (06-36) |
2007-2009 |
01 |
| 017 |
15049571 |
GUIDE, PARK BRK RR CBL (FRONT) |
CK1 (06-36) |
2007-2009 |
01 |
