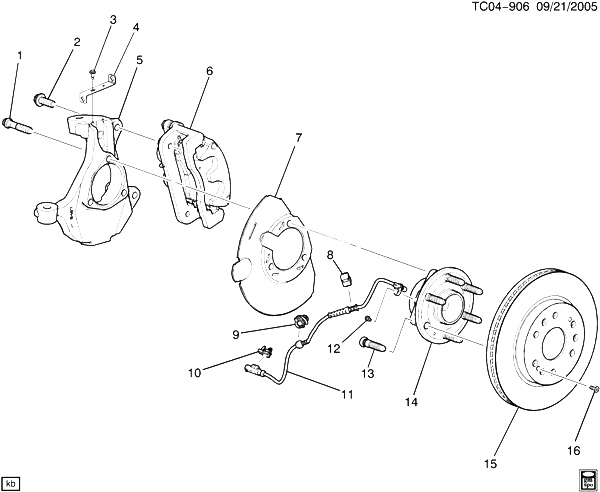

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15719028 |
|
CK1, 2, 3 |
2007-2009 |
AR |
| 002 |
15016308 |
|
|
2007-2009 |
04 |
| 003 |
11561674 |
|
|
2007-2009 |
01 |
| 004 |
15133409 |
BRACKET, FRT WHL SPD SEN |
CK1 (JD9, JF3, JF7, JG4, J92) |
2008-2009 |
02 |
| 005 |
15942236 |
KNUCKLE, STRG (MCHG) |
CK1 |
2007-2009 |
01 |
| 005 |
15942237 |
KNUCKLE, STRG (MCHG)
| CK1 |
2007-2009 |
01 |
|
| 006 |
|
CALIPER, FRT BRK ( |
|
2007-2008 |
|
| 007 |
25918337 |
SHIELD, FRT BRK |
K1 (JD9, J92) |
2008-2009 |
01 |
| 007 |
25918338 |
SHIELD, FRT BRK |
K1 (JD9, J92) |
2008-2009 |
01 |
| 008 |
15715956 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (10.00MM) (1 HOLE CLIP) |
CK1 |
2007-2009 |
02 |
| 009 |
15267361 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (CLAM SHELL WITHOUT ALIGNMENT PIN) |
CK1 |
2007-2009 |
02 |
| 010 |
15229013 |
CLIP, WHL SPD SEN WIRE (PART OF 11, 14) (SLIDE LOCK WITH ALIGNMENT PIN) |
CK1 |
2007-2009 |
02 |
| 011 |
15229012 |
SENSOR, FRT WHL SPD (INCLS 8-10) (PART OF 14) (ACDelco #15229012) (FOR VEHICLES WITH RPO PPV-USE T/W THERMAL WRAP PN 19207924, BETWEEN WHEEL SPEED SENSOR HEAD AND FIRST CLIP.)
| CK1 |
2007-2009 |
02 |
|
| 012 |
15960191 |
|
CK1, 2, 3 |
2007-2009 |
AR |
| 013 |
11588810 |
STUD, FRT WHL (PART OF 14) (M14X1.5X65)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 014 |
25918329 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 8-13) (ACDelco #FW346) |
K1 (JD9, JF3, JF7, J92) |
2008-2008 |
02 |
| 015 |
25819670 |
ROTOR, FRT BRK (13IN) (ACDelco #177-1014)
| CK1 (JD9, JF3, JF7, J92) (EXC PPV) |
2008-2009 |
02 |
|
| 016 |
11609271 |
|
CK1 |
2007-2009 |
02 |
