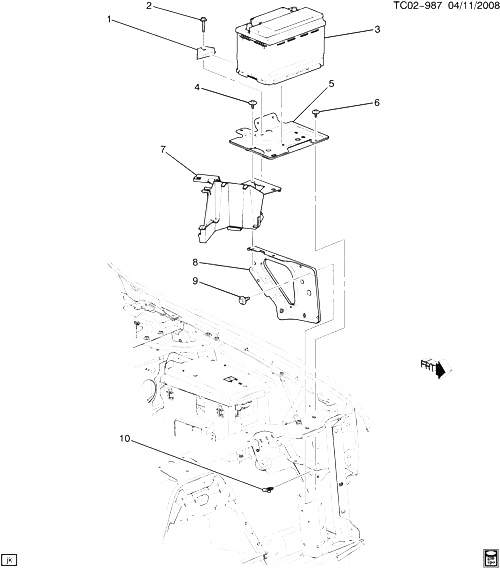

(TC02-987) - 2008-2009 CK107(06) КРЕПЛЕНИЕ АККУМУЛЯТОРА/PRIMARY (HYBRID HP2) CADILLAC - ESCALADE (AWD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 14005061 | RETAINER, BAT HOLDN (PLASTIC)| CK1, 2, 3 |
2008-2009 |
01 |
|
| 002 | 11509853 | 2008-2009 | 01 | ||
| 003 | 2008-2009 | ||||
| 004 | 11609989 | 2008-2009 | 02 | ||
| 005 | 25826079 | TRAY, BAT (SECONDARY) | CK1, 2, 3 | 2008-2009 | 01 |
| 006 | 11609540 | 2008-2009 | 04 | ||
| 008 | 10399558 | SUPPORT, BAT TRAY | CK1, 2, 3 | 2008-2009 | 01 |
| 009 | 11514623 | 2008-2009 | 04 | ||
| 010 | 11570097 | 2008-2009 | 02 |
