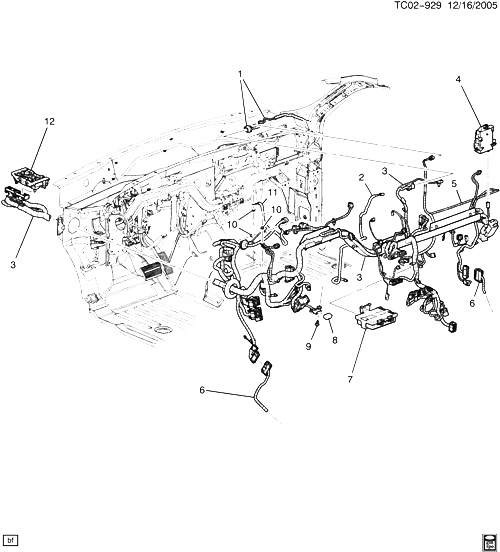

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF WRG ( |
|
2007-2009 |
|
| 002 |
15095253 |
CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #15095253) |
CK1 (U84, Z75) |
2007-2009 |
01 |
| 003 |
15296986 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (NR3, XA7, Y91, Z75) (EXC BRS, T89, UE1) |
2008-2008 |
01 |
| 003 |
15839013 |
HARNESS, I/P WRG (INTERNAL GROUND IN UBEC) (INCLS 5) |
K1 (06) (BRS, NR3, XA7, Y91, Z75) (EXC T89, UE1) |
2008-2008 |
01 |
| 003 |
25892108 |
HARNESS, I/P WRG (EXTERNAL GROUND RING TERMINAL) (INCLS 5) |
K1 (06) (NR3, XA7, Y91, Z75) (EXC BRS, DNU, T89, UE1) |
2008-2008 |
01 |
| 003 |
25892111 |
HARNESS, I/P WRG (EXTERNAL GROUND RING TERMINAL) (INCLS 5) |
K107 (06) (T89, XA7, Y91, Z75) (EXC BRS, VFJ) (EXPORT) |
2008-2008 |
01 |
| 003 |
25892137 |
HARNESS, I/P WRG (EXTERNAL GROUND RING TERMINAL) (INCLS 5) |
K1 (06) (BRS, NR3, XA7, Y91, Z75) (EXC DNU, T89, UE1) |
2008-2008 |
01 |
| 003 |
25892216 |
HARNESS, I/P WRG (EXTERNAL GROUND RING TERMINAL) (INCLS 5) |
K107 (06) (BRS, NR3, UE1, ULT, U42, Y91, Z75) |
2008-2008 |
01 |
| 004 |
|
RECEIVER, DIGITAL RDO ( |
|
2007-2009 |
|
| 005 |
19116678 |
CABLE, DIGITAL RDO |
CK1 (06-36) (UE1, Y91, Z75) |
2008-2008 |
01 |
| 005 |
19116705 |
CABLE, DIGITAL RDO |
CK1 (06-36) (UE1, Y91, Z75) |
2008-2008 |
01 |
| 006 |
|
HARNESS, BODY WRG ( |
|
2007-2009 |
|
| 007 |
|
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) ( |
|
2007-2009 |
|
| 008 |
12146933 |
COVER, I/P WRG HARN DATA LINK CONN |
K107 (06) (T89) (EXPORT) |
2007-2008 |
01 |
| 009 |
11589012 |
|
|
2007-2009 |
01 |
| 010 |
11609411 |
|
|
2007-2009 |
03 |
| 011 |
|
STRAP, BODY STATIC GND |
|
2007-2009 |
|
| 012 |
|
BLOCK, ENG WRG HARN JUNC ( |
|
2007-2009 |
|
