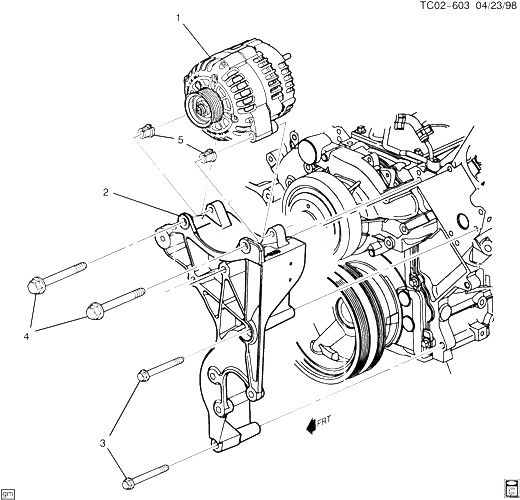

(TC02-603) - 2007-2008 CK1 КРЕПЛЕНИЕ ГЕНЕРАТОРА (LC9/5.3-3,LH6/5.3M,LMG/5.3-0,LY2/4.8C,LY5/5.3J,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE (AWD) 2008
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25869451 | GENERATOR, (STAMPED FJ OR FB OR JD) (ACDelco #25869451) | CK1, 2 (KG3) | 2007-2009 | 01 |
| 001 | 25877026 | GENERATOR, (ACDelco #25877026)| CK1, 2, 3 (KW1) |
2007-2009 |
01 |
|
| 002 | 12554030 | BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) | CK1 (L92) | 2007-2008 | 01 |
| 003 | 11516744 | BOLT-HFH, M10X1.5X110, 26 THD, 22.3 OD, 9.8, 7114M (GEN P/S PUMP BRKT) | 2007-2009 | 04 | |
| 004 | 11516360 | 2007-2009 | 02 | ||
| 005 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 2)| CK1 (L92) |
2007-2008 |
02 |
|
