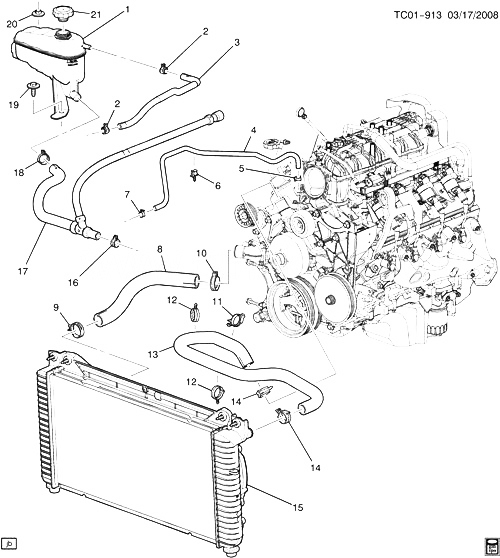

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15833723 |
TANK, RAD SURGE (ACDelco #15833723)
| CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L92) |
2007-2008 |
01 |
|
| 002 |
15012559 |
CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED 20 (RAD SURGE TK INL HOSE) (1.240) |
|
2007-2009 |
02 |
| 003 |
15834774 |
HOSE, RAD SURGE TK INL |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92, LU3) |
2007-2008 |
01 |
| 004 |
25976471 |
HOSE, RAD VENT INL |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) |
2007-2008 |
01 |
| 005 |
15734742 |
CLAMP, RAD SURGE TK ENG HOSE (13-16MM DIA RANGE) |
CK1, 2, 3 |
2007-2009 |
01 |
| 006 |
15041309 |
CLIP, RAD VENT INL HOSE |
CK1 (LC9, LFA, LH6, LMG, LY2, LY5, L76, L92) |
2008-2008 |
01 |
| 007 |
15004599 |
CLAMP, RAD SURGE TK ENG HOSE (BLACK) (15MM OD 17.2MM)
| CK1 (LC9, LFA, LH6, LMG, LY2, LY5, L76, L92) |
2008-2008 |
01 |
|
| 008 |
19130015 |
HOSE, RAD OTLT
| CK1 (L92) |
2007-2008 |
01 |
|
| 009 |
11562099 |
CLAMP- |
|
2007-2009 |
01 |
| 010 |
11562099 |
CLAMP- |
|
2007-2009 |
01 |
| 011 |
15045503 |
CLIP, RAD SURGE TK INL HOSE (PART OF 13) (CLIP TO HOLD 37-44 DIA HOSE AND 12.8-15 DIA VENT HOSE) (1.166) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L92) |
2007-2008 |
01 |
| 012 |
15159494 |
CLIP, RAD INL HOSE (PART OF 13) (PUSH-IN CLIP 37-44 DIA 12.8 DIA) |
CK1 (L92) |
2008-2009 |
02 |
| 013 |
|
HOSE, RAD INL (INCLS 11, 12) |
|
2007-2009 |
|
| 013 |
25976470 |
HOSE, RAD INL (INCLS 11, 12) |
CK1 (L92) |
2007-2008 |
01 |
| 014 |
11518559 |
CLAMP, |
|
2007-2009 |
02 |
| 015 |
|
RADIATOR, ( |
|
2007-2008 |
|
| 015 |
|
RADIATOR, ( |
|
2007-2009 |
|
| 016 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (RAD SURGE TK OTLT HOSE) |
|
2007-2009 |
01 |
| 017 |
15834772 |
HOSE, RAD SURGE TK OTLT |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, L76, L92) (EXC C36) |
2007-2008 |
01 |
| 017 |
15834773 |
HOSE, RAD SURGE TK OTLT |
CK1, 2 (06) (LC9, LMG, LY2, LY5, LY6, L76, L92, C36) |
2007-2008 |
01 |
| 018 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (RAD SURGE TK OTLT HOSE) (8.948) |
|
2007-2009 |
01 |
| 019 |
11609982 |
|
CK1, 2, 3 (LC9, LH6, LMG, LMM, LU3, LY2, LY5, LY6, L76, L92) |
2008-2008 |
01 |
| 020 |
11609411 |
|
|
2007-2009 |
01 |
| 021 |
15075118 |
CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98)
| CK1, 2, 3 |
2007-2009 |
01 |
|
