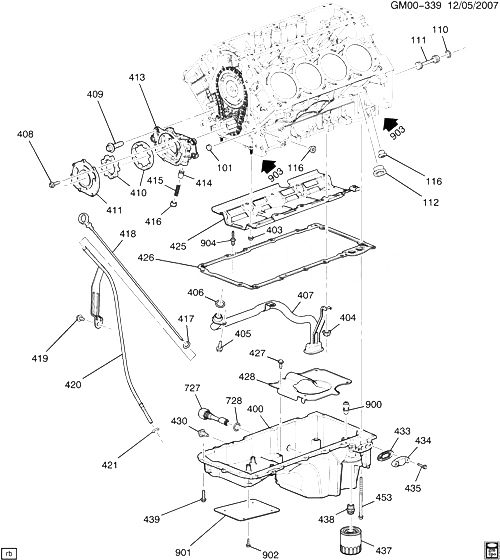

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2007-2008 |
01 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2007-2008 |
|
| 112 |
11609289 |
PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK OIL GAL) (8.971) |
|
2007-2008 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL)
|
2007-2008 |
02 |
|
| 400 |
12619776 |
PAN, OIL (INCLS BAFFLE, BOLTS, PLUG, DEADENER, GASKET, VALVE, FITTING, SEAL) (EXC SWITCH) (INCLS 426-428, 430, 433-435, 438, 439, 453, 727, 728, 900-902) |
CK1 (L92) |
2008-2008 |
01 |
| 403 |
11515742 |
|
|
2007-2008 |
08 |
| 404 |
11515742 |
|
|
2007-2008 |
02 |
| 405 |
11516521 |
|
|
2007-2008 |
01 |
| 406 |
12584922 |
SEAL, O/PMP SUC PIPE (O RING) (PART OF 407) (20.69MM I.D., 4.20MM THICKNESS) (TEFLON COATED) (1.724)
| CK1 (L92) |
2007-2008 |
01 |
|
| 407 |
12608579 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) |
CK1 (L92) |
2007-2008 |
01 |
| 408 |
11519133 |
|
|
2007-2008 |
07 |
| 409 |
11515758 |
|
|
2007-2008 |
04 |
| 410 |
|
GEAR SET, O/PMP (PART OF 413) |
|
2007-2008 |
|
| 411 |
|
COVER, O/PMP (PART OF 413) |
|
2007-2008 |
|
| 413 |
12612289 |
PUMP, OIL (INCLS 408, 410, 411, 414-416) |
CK1 (L92) |
2007-2008 |
01 |
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 413) |
|
2007-2008 |
|
| 415 |
|
|
|
2007-2008 |
|
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 413) |
|
2007-2008 |
|
| 417 |
24504091 |
SEAL, OIL LVL IND (O RING) (PART OF 418) (BLACK) (6.07MM ID, 1.78MM DIA) |
CK1 (L92) |
2007-2008 |
01 |
| 418 |
12622055 |
INDICATOR, OIL LVL (INCLS 417)
| CK1 (L92) |
2008-2008 |
01 |
|
| 419 |
11588736 |
|
|
2007-2008 |
01 |
| 420 |
12609269 |
TUBE, OIL LVL IND (INCL SEAL) (INCLS 421)
| CK1 (L92) |
2008-2008 |
01 |
|
| 421 |
24504091 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (BLACK) (6.07MM ID, 1.78MM DIA) |
CK1 (L92) |
2007-2008 |
01 |
| 425 |
12611129 |
DEFLECTOR, CR/SHF OIL |
CK1 (L92) |
2007-2008 |
01 |
| 426 |
12558760 |
GASKET, |
CK1 (L92) |
2007-2008 |
01 |
| 427 |
11588712 |
|
|
2007-2008 |
04 |
| 428 |
|
BAFFLE, |
|
2007-2008 |
|
| 430 |
11562588 |
PLUG, |
CK1 (L92) |
2007-2008 |
01 |
| 433 |
12611384 |
GASKET, |
CK1 (L92) |
2007-2008 |
01 |
| 434 |
12577903 |
COVER, |
CK1 (L92) |
2007-2008 |
01 |
| 435 |
11588714 |
|
|
2007-2008 |
02 |
| 437 |
89017524 |
|
CK1 (L92) |
2007-2008 |
01 |
| 438 |
12600225 |
FITTING, OIL FLTR (PART OF 400) |
CK1 (L92) |
2007-2008 |
01 |
| 439 |
11515758 |
|
|
2007-2008 |
13 |
| 453 |
12554990 |
|
CK1 (L92) |
2007-2008 |
02 |
| 727 |
|
SWITCH, ENG OIL LVL IND (PART OF 400) (INCLS 728) |
|
2007-2008 |
|
| 727 |
12603782 |
SWITCH, ENG OIL LVL IND (PART OF 400) (INCLS 728)
| CK1 (LC9, LY2, LY5, LY6, L76, LMG, LH6, L92) |
2007-2008 |
01 |
|
| 728 |
10151633 |
SEAL, ENG OIL LVL SEN (PART OF 400, 727) |
CK1, 2, 3 |
2007-2008 |
01 |
| 900 |
12608835 |
VALVE, OIL PRESS RLF (PART OF 400) |
CK1 (L92) |
2007-2008 |
01 |
| 901 |
12633653 |
DEADENER, |
CK1 (L92) |
2008-2008 |
01 |
| 902 |
11589241 |
|
|
2007-2008 |
05 |
| 903 |
12346004 |
SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE ( |
|
2007-2008 |
AR |
| 904 |
12558759 |
RIVET, |
CK1 (L92) |
2007-2008 |
02 |
