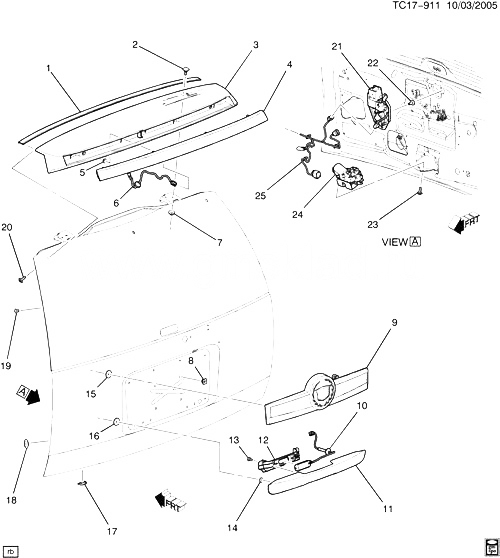

(TC17-911) - 2007-2009 CK1(06) АРМАТУРА ОТКРЫВАНИЯ(ПОДЪЕМА) ДВЕРИ ЧАСТЬ 2 (CADILLAC Z75) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15270012 SEAL, E/GATE CTR MLDG (PART OF 3) CK1 (06) (Z75) 2007-2009 01
002 11561972 CK1 (06) (Z75) 2007-2009 02
003 25779075 APPLIQUE, L/GATE UPR (INCLS 1, 2) (PAINT TO MATCH) (W/O HIGH MT S/LP) CK1 (06) (Z75) 2007-2009 01
004 25779085 LAMP, HIGH MT STOP (INCLS CZ2 STAMP) CK1 (06) (Z75) 2007-2009 01
005 11609411 2007-2009 02
006 15857136 WIRE, HIGH MT S/LP CK1 (06) (Z75) 2007-2009 01
007 11508277 2007-2009 02
008 11569914 CK1, 2 (06) 2007-2009 04
009 APPLIQUE, L/GATE ( 2007-2009
010 15106857 SWITCH, L/GATE REL (PART OF 11) (ACDelco #D1499F) CK1, 2 (06) 2007-2009 01
011 15842442 HANDLE, L/GATE O/S (INCLS 10, 12-14) (PAINT TO MATCH) CK1, 2 (06) 2007-2009 01
012 COVER, L/GATE REL SW OPG (PART OF 11) 2007-2009
013 2007-2009
014 12335645 GASKET, L/GATE WDO O/S HDL (PART OF 11) (7.800) CK1, 2 (06) 2007-2009 04
015 03530297 2007-2009 04
016 11508388 2007-2009 04
017 15101589 PLUG, L/GATE INR PNL DRN HOLE (W/ CK1, 2 (06) 2007-2009 03
018 PLUG, L/GATE WRG HARN HOLE 2007-2009
018 21110669 PLUG, L/GATE WRG HARN HOLE (35 MM) (ROUND) (12.179) CK1, 2 (06) (EXC E61) 2007-2009 04
019 PLUG, L/GATE SEN ATCH HOLE 2007-2009
019 15259076 PLUG, L/GATE SEN ATCH HOLE (6.35MM) (ROUND) (10.571) CK1, 2 (06) (EXC E61) 2007-2009 08
020 11609394 CK1, 2 (06) 2007-2007 03
021 25886854 LATCH, L/GATE WDO (INCLS 22) (REFER TO BULLETIN 07-08-66-005A WHEN REPLACING LATCH W/ BRKT) CK1, 2 (06) (X88, Z75, Z88) 2007-2009 01
022 11589327 CK1, 2 (06) (X88, Z75, Z88) 2007-2009 04
023 11609341 SCREW, RD WA HD 6-LOBE M6X1X19 (L/GATE LK) 2007-2009 03
024 LOCK, L/GATE 2007-2009
024 13501872 LATCH, L/GATE (W/AJAR SW) (12.242) CK1, 2 (06) (E61) 2007-2009 01
024 15858590 LOCK, L/GATE (LATCH ONLY) (12.242) CK1, 2 (06) (EXC E61) 2007-2007 01
025 HARNESS, L/GATE WRG ( 2007-2009
