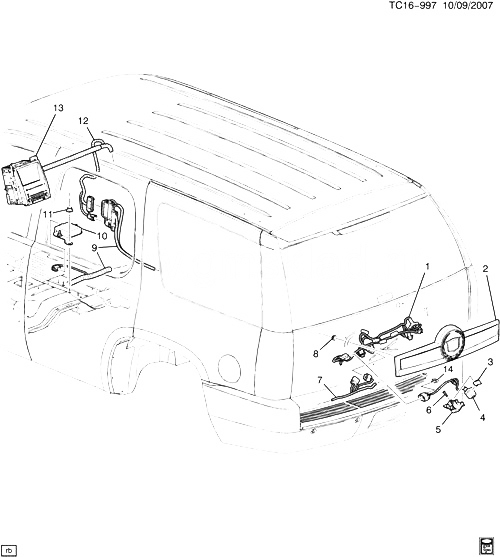

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15862654 |
HARNESS, RR LIC PLT LP WRG |
CK1 (06) (Z75) |
2007-2008 |
01 |
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG (2.714) (SERV CMP OF CAMERA PKGS) |
CK1, 2 (06) |
2007-2008 |
01 |
| 002 |
|
APPLIQUE, L/GATE CTR ( |
|
2007-2008 |
|
| 003 |
15218778 |
SPACER, RR VIEW CAMERA IMAGE DISPLAY BRKT (PART OF 4) |
CK1, 2, 3 (06) (UVC, X88, Z88, Z75) |
2007-2008 |
01 |
| 004 |
15173619 |
CAMERA, RR VIEW (INCLS 3, 5, 6, 14) (INCLS SMALL HARNESS)
| CK1, 2 (06) (UVC, Z88, X88, Z75) |
2007-2008 |
01 |
|
| 004 |
19211811 |
CAMERA, RR VIEW (INCLS 3, 5, 6, 14) (INSTALL 1.0) (00.1 KGS) (9.715) (SERV CMP OF CAMERA PKGS 19170227, 19171822) |
CK1, 2 (06) |
2007-2007 |
01 |
| 005 |
|
BRACKET, RR VIEW CAMERA IMAGE DISPLAY (PART OF 2, 4) |
|
2007-2008 |
|
| 006 |
|
|
|
2007-2008 |
|
| 007 |
|
HARNESS, L/GATE WRG ( |
|
2007-2008 |
|
| 008 |
03530297 |
|
|
2007-2008 |
04 |
| 009 |
|
HARNESS, BODY WRG ( |
|
2007-2008 |
|
| 010 |
10371724 |
MODULE, RR VIEW CAMERA IMAGE DISPLAY (2.195)
| CK1, 2 (06-36) (UVC) |
2007-2007 |
01 |
|
| 011 |
11609411 |
|
|
2007-2008 |
02 |
| 012 |
|
HARNESS, I/P WRG HARN EXTN ( |
|
2007-2008 |
|
| 013 |
|
RADIO, AM/FM STEREO NAVN ( |
|
2007-2008 |
|
| 014 |
15317832 |
RETAINER, RR VIEW CAMERA (PART OF 4) (GREY) (SECONDARY LOCK) (3.166) |
CK1, 2 (06) (UVC) |
2007-2008 |
01 |
