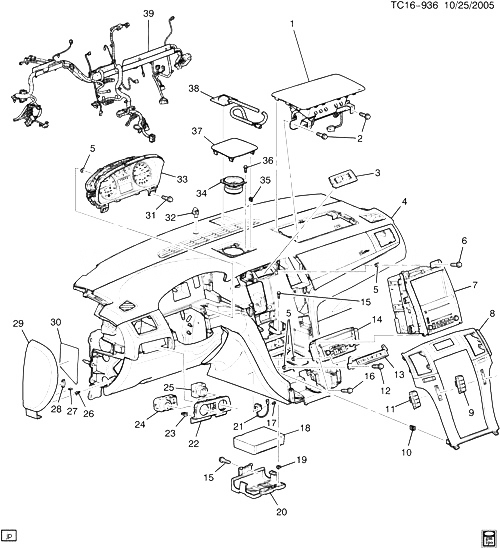

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25812355 |
MODULE, I/P INFL RST (EBONY)
| CK1 (19I, 22I, 31I, 84I) |
2007-2007 |
01 |
|
| 001 |
25812358 |
MODULE, I/P INFL RST (CASHMERE)
| CK1 (06-36-43) (30I, 39I) |
2007-2008 |
01 |
|
| 002 |
11588337 |
|
|
2007-2009 |
04 |
| 003 |
15884145 |
CLOCK, (ENGLISH NUMBERS ON CLOCK FACE.) |
CK1 (Z75) |
2007-2009 |
01 |
| 003 |
25949881 |
CLOCK, (ROMAN NUMERALS ON CLOCK FACE.)
| CK1 (Z75) |
2007-2009 |
01 |
|
| 004 |
|
PANEL, INST ( |
|
2007-2009 |
|
| 005 |
11610157 |
|
|
2007-2009 |
06 |
| 006 |
11589012 |
|
|
2007-2009 |
06 |
| 007 |
|
RADIO, AM/FM STEREO CLK AUDIO/VIDEO DISC PLYR ( |
|
2007-2009 |
|
| 007 |
|
RADIO, AM/FM STEREO NAVN ( |
|
2007-2009 |
|
| 008 |
|
PLATE, I/P ACSRY CTR TR ( |
|
2007-2009 |
|
| 009 |
15859233 |
SWITCH, RR OBJECT ALARM MDL |
CK1 |
2007-2009 |
01 |
| 010 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P ACSRY CTR TR PLT)
|
2007-2009 |
07 |
|
| 011 |
15859232 |
SWITCH, DRVR INFO DISPLAY
| CK1 (Z75) |
2007-2009 |
01 |
|
| 012 |
11589012 |
|
|
2007-2009 |
02 |
| 013 |
15916341 |
SWITCH, ACSRY
| CK1 (BRS, Z75) |
2007-2007 |
01 |
|
| 013 |
15916342 |
SWITCH, ACSRY (ADJ PED HOT SHOT WPR)
| CK1 (Z75) (EXC BRS) |
2007-2007 |
01 |
|
| 014 |
15911823 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (LABELED 15911823) (ACDelco #15911823) |
CK1 (06) (CJ2, JAA, KB6, Z75) |
2007-2007 |
01 |
| 014 |
15926353 |
CONTROL, HTR A/C (W/ D/SEAT P/SEAT HTR) (LABELED 15926353, 25811054) (ACDelco #15926353) |
CK1 (06) (CJ2, JAA, Z75) (EXC KB6) |
2007-2007 |
01 |
| 014 |
15926356 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (LABELED 15926356, 25811057) (ACDelco #15926356)
| CK1 (06) (CJ2, JAA, KB6, Z75) |
2007-2007 |
01 |
|
| 014 |
25928678 |
CONTROL, HTR A/C (W/ D/SEAT P/SEAT HTR) (ACDelco #15-73924) |
CK1 (06) (CJ2, C49, Z75) (EXC KB6) |
2007-2007 |
01 |
| 014 |
25928678 |
CONTROL, HTR A/C (W/ D/SEAT P/SEAT HTR) (ACDelco #15-73924) |
CK1 (06) (CJ2, Z75) (EXC JAA, KB6) |
2007-2008 |
01 |
| 014 |
25928681 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (MARKED REAR) (ACDelco #15-73925) |
CK1 (06) (CJ2, KB6, Z75) (EXC JAA) |
2007-2008 |
01 |
| 015 |
11589012 |
|
|
2007-2009 |
03 |
| 016 |
11589012 |
|
|
2007-2009 |
04 |
| 017 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (RDO VOL COMP INTR NOISE MIC) |
|
2007-2009 |
02 |
| 018 |
15800441 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 15800441) (CASTING NUMBER 15800440) (ACDelco #15800441) |
CK1, 2 (06-36) (UE1) |
2007-2007 |
01 |
| 018 |
25911919 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #25911919) |
CK1, 2, 3 (UE1) |
2007-2008 |
01 |
| 019 |
11610157 |
|
|
2007-2009 |
02 |
| 020 |
25791895 |
BRACKET, COMMUNICATION INTERFACE MDL |
CK1, 2 (06-36) (UE1) |
2007-2009 |
01 |
| 021 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
CK1 |
2007-2008 |
01 |
| 022 |
15221547 |
PLATE, HDLP SW TR (INCLS 23) (EBONY) |
CK1 (06-36) (Z75, 19I, 30I) |
2007-2008 |
01 |
| 023 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 22)
|
2007-2009 |
02 |
|
| 024 |
15096896 |
SWITCH, HDLP I/P LP DIMR DM LP (INCLS FRT AND RR FOG LAMP SW) (HAS OFF SYMBOL) (ACDelco #D1573H)
| K1 (06) (T79, T96, Z75) (EXPORT) |
2007-2007 |
01 |
|
| 024 |
25858706 |
SWITCH, HDLP I/P LP DIMR DM LP (HAS DOME OFF) (INCLS FRT FOG LAMP SWITCH) (ACDelco #D1528J) |
CK1 (06-36) (T96, Z75) (EXC T79) |
2007-2009 |
01 |
| 024 |
25858708 |
SWITCH, HDLP I/P LP DIMR DM LP (HAS DOME OFF) (ACDelco #D1530J) |
CK1, 2, 3 (EXC T96, YE9) |
2007-2009 |
01 |
| 025 |
|
SWITCH, TRFER CASE SEL |
|
2007-2009 |
|
| 026 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 29)
|
2007-2009 |
03 |
|
| 027 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 29) |
|
2007-2009 |
01 |
| 027 |
88909749 |
FUSE, 3A, MINI, VIOLET (PART OF 29) (8.965) (ACDelco #ATM3-25) |
|
2007-2009 |
01 |
| 027 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 29) (ACDelco #ATM15-25)
|
2007-2009 |
01 |
|
| 027 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 29) (ACDelco #ATM20-25)
|
2007-2009 |
01 |
|
| 027 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 29) (ACDelco #ATM25-25)
|
2007-2009 |
01 |
|
| 028 |
12084791 |
PULLER, FUSE (PART OF 29) (MINI) (I/P COVER) |
CK1, 2, 3 |
2007-2009 |
01 |
| 029 |
15839736 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (EBONY) (BUILT PRIOR TO 9/4/06) (FOR 2ND DES SEE 25855846) |
CK1, 2 (06-36) (19I, 22I, 31I, 84I) (1ST DES) |
2007-2007 |
01 |
| 029 |
15839740 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (LT CASHMERE) (BUILT PRIOR TO O9/4/06) (FOR 2ND DES SEE 25855850) |
CK1 (06-36) (30I) (1ST DES) |
2007-2007 |
01 |
| 029 |
25855846 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (EBONY) (BUILT 9/4/06 AFTER) (FOR 1ST DES SEE 15839736) |
CK1, 2 (06-36) (19I, 22I, 31I, 84I) (2ND DES) |
2007-2007 |
01 |
| 029 |
25855850 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (LT CASHMERE) (BUILT 9/4/06 AFTER) (FOR 1ST DES SEE 15839740) |
CK1 (06-36) (30I) (2ND DES) |
2007-2007 |
01 |
| 030 |
15839682 |
LABEL, FUSE BLK IDENT (PART OF 29) |
CK1, 2, 3 |
2007-2008 |
01 |
| 031 |
11589012 |
|
|
2007-2009 |
04 |
| 032 |
25713063 |
SENSOR, HDLP AUTO CONT AMB LGT (DUAL SOLAR TWILIGHT)
| CK1, 2, 3 (CJ2) |
2007-2009 |
01 |
|
| 033 |
15929241 |
CLUSTER, INST (ACDelco #15929241) (LABELED 15929241) |
CK1 (06-36) (L76, L92, MYC, Y91, Z75) (EXC UC2, U19) |
2007-2007 |
01 |
| 035 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37)
|
2007-2009 |
04 |
|
| 036 |
11589012 |
|
|
2007-2009 |
02 |
| 037 |
15221850 |
GRILLE, RDO FRT SPKR (INCLS 35) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2007-2009 |
01 |
| 037 |
15221851 |
GRILLE, RDO FRT SPKR (INCLS 35) (COCOA) |
CK1 (06-36) (Z75, 30I) |
2007-2007 |
01 |
| 038 |
10396716 |
|
CK1 (U3R) |
2007-2007 |
01 |
| 039 |
|
HARNESS, I/P WRG ( |
|
2007-2009 |
|
