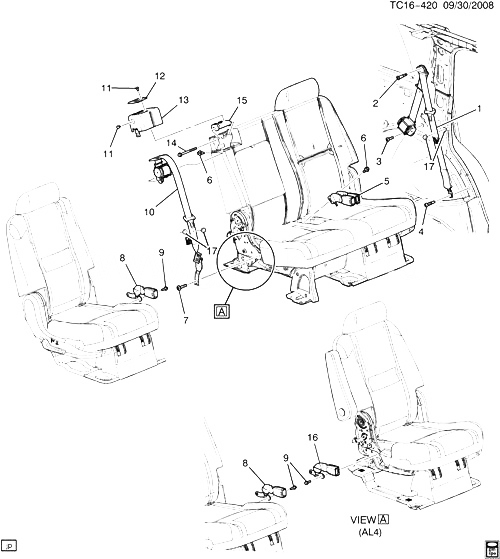

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) |
|
2007-2009 |
|
| 001 |
19167317 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY) |
CK107 (06) (19I, 22I, 84I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
19167318 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (30I) (EXC AX4) |
2007-2008 |
01 |
| 001 |
19167319 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (31I) (EXC AX4) |
2007-2008 |
01 |
| 001 |
19167319 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (33I, 39I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
19167320 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (TITANIUM) |
CK107 (06) (83I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
19167321 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY) |
CK107 (06) (19I, 22I, 84I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
19167322 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (30I) (EXC AX4) |
2007-2008 |
01 |
| 001 |
19167323 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (31I) (EXC AX4) |
2007-2008 |
01 |
| 001 |
19167323 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE) |
CK107 (06) (33I, 39I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
19167324 |
BELT KIT, R/SEAT (RETR SI) (INCLS 2, 17) (TITANIUM) |
CK107 (06) (83I) (EXC AX4) |
2007-2009 |
01 |
| 001 |
25810538 |
BELT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY)
| K107 (06) (AX4, 19I) (EXPORT) |
2007-2009 |
01 |
|
| 001 |
25810539 |
BELT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE)
| K107 (06) (AX4, 30I) (EXPORT) |
2007-2008 |
01 |
|
| 001 |
25810541 |
BELT, R/SEAT (RETR SI) (INCLS 2, 17) (EBONY)
| K107 (06) (AX4, 19I) (EXPORT) |
2007-2009 |
01 |
|
| 001 |
25810542 |
BELT, R/SEAT (RETR SI) (INCLS 2, 17) (CASHMERE)
| K107 (06) (AX4, 30I) (EXPORT) |
2007-2008 |
01 |
|
| 002 |
|
|
|
2007-2009 |
|
| 003 |
11609886 |
|
CK1, 2 (06) |
2007-2009 |
AR |
| 004 |
11588500 |
|
CK107 (06) |
2007-2007 |
02 |
| 004 |
11609886 |
|
CK1, 2 (06) |
2007-2009 |
AR |
| 004 |
11610207 |
|
CK107 (06) |
2007-2009 |
02 |
| 005 |
|
BELT KIT, R/SEAT (BKL SI) |
(AL4) |
2007-2009 |
|
| 005 |
19121589 |
BELT KIT, R/SEAT (BKL SI) (EBONY) (BKL/BKL) |
CK1, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2008 |
01 |
| 005 |
19121590 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1 (06) (AM8, 30I) |
2007-2008 |
01 |
| 005 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 31I) |
2007-2008 |
01 |
| 005 |
19121591 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) (BKL/BKL) |
CK1, 2 (06) (AM8, 33I, 39I) |
2007-2009 |
01 |
| 005 |
19121592 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) (BKL/BKL) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 006 |
11562383 |
|
|
2007-2009 |
01 |
| 007 |
11562376 |
SCREW-PAN HD, M12X1.75X55, 42 THD, 27 OD, 10.9, S424, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
01 |
| 008 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (EBONY)
| CK1, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2008 |
01 |
|
| 008 |
19121593 |
BELT KIT, R/SEAT (BKL SI) (EBONY)
| CK1, 2 (06) (AL4, 19I, 22I, 84I) |
2007-2009 |
01 |
|
| 008 |
19121594 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (CASHMERE) |
CK1 (06) (AM8, 30I) |
2007-2008 |
01 |
| 008 |
19121594 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1 (06) (AL4, 30I) |
2007-2008 |
01 |
| 008 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2008 |
01 |
| 008 |
19121595 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AL4, 31I, 33I, 39I) |
2007-2008 |
01 |
| 008 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (SINGLE BKL) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2009 |
01 |
| 008 |
19121596 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AL4, 83I) |
2007-2009 |
01 |
| 009 |
11562378 |
BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) |
|
2007-2009 |
02 |
| 010 |
|
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 12, 17) |
|
2007-2009 |
|
| 010 |
|
BELT, R/SEAT CTR SHLDR (RETR SI) (INCLS 12, 17) |
|
2007-2009 |
|
| 010 |
15853706 |
BELT, R/SEAT CTR SHLDR (RETR SI) (INCLS 12, 17) (EBONY) |
CK1 (06) (AM8, AX4, KA6, Z75, 194) (EXPORT) |
2007-2009 |
01 |
| 010 |
15853707 |
BELT, R/SEAT CTR SHLDR (RETR SI) (INCLS 12, 17) (CASHMERE) |
CK107 (06) (AX4, 304) (EXPORT) |
2007-2008 |
01 |
| 010 |
19151104 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 12, 17) (EBONY) |
CK1, 2 (06) (AM8, 19I, 22I, 84I) |
2007-2008 |
01 |
| 010 |
19151105 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 12, 17) (CASHMERE) |
CK1, 2 (06) (AM8, 31I, 33I, 39I) |
2007-2008 |
01 |
| 010 |
19151106 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 12, 17) (TITANIUM) |
CK1, 2 (06) (AM8, 83I) |
2007-2008 |
01 |
| 010 |
19151107 |
BELT KIT, R/SEAT CTR (RETR SI) (INCLS 12, 17) (CASHMERE) |
CK1 (06) (AM8, KA6, Z75, 304) |
2007-2008 |
01 |
| 011 |
11570116 |
SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) |
|
2007-2009 |
04 |
| 012 |
|
BEZEL, R/SEAT SHLDR BELT OPG (PART OF 10) |
|
2007-2009 |
|
| 013 |
15279450 |
PROTECTOR, R/SEAT SHLDR BELT (BLACK) |
CK1, 2 (06) |
2007-2009 |
01 |
| 014 |
11562382 |
|
|
2007-2009 |
01 |
| 015 |
|
BRACKET, R/SEAT CTR BELT (RETR SI) |
|
2007-2009 |
|
| 015 |
15289969 |
BRACKET, R/SEAT CTR BELT (RETR SI) |
CK1, 2 (06) (AM8) |
2007-2009 |
01 |
| 015 |
25869335 |
BRACKET, R/SEAT CTR BELT (RETR SI) |
CK1, 2 (06) (AS3) |
2007-2009 |
02 |
| 016 |
19121601 |
BELT KIT, R/SEAT (BKL SI) (EBONY) |
CK1, 2 (06) (AL4, 19I, 22I, 84I) |
2007-2009 |
01 |
| 016 |
19121602 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1 (06) (AL4, 30I) |
2007-2008 |
01 |
| 016 |
19121603 |
BELT KIT, R/SEAT (BKL SI) (CASHMERE) |
CK1, 2 (06) (AL4, 31I, 33I, 39I) |
2007-2008 |
01 |
| 016 |
19121604 |
BELT KIT, R/SEAT (BKL SI) (TITANIUM) |
CK1, 2 (06) (AL4, 83I) |
2007-2009 |
01 |
| 017 |
19121443 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (TITANIUM) (14.875) |
CK1, 2, 3 (83I) |
2007-2009 |
01 |
| 017 |
19121445 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (CASHMERE) (14.875) |
CK1, 2, 3 (30I, 31I, 33I, 39I) |
2007-2007 |
01 |
| 017 |
19121446 |
STOP KIT, BELT LAT (RETR SI) (PART OF 1, 10) (EBONY) (14.875) |
CK1, 2, 3 (19I, 88I) |
2007-2009 |
01 |
