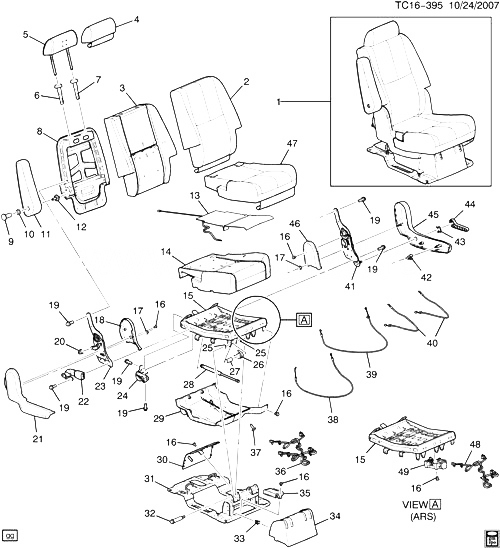

(TC16-395) - 2007-2009 CK107(06) ЗАДНЕЕ СИДЕНЬЕ/BUCKET-LH (BUCKET AL4) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15842713 SEAT, RR (INCLS 2-49) (EBONY) K107 (06) (AL4, AX4, KA6, Z75, 194) (EXC ARS) (EXPORT) 2007-2007 01
001 15842714 SEAT, RR (INCLS 2-49) (CASHMERE) K107 (06) (AL4, AX4, KA6, Z75, 304) (EXC ARS) (EXPORT) 2007-2007 01
001 15842719 SEAT, RR (INCLS 2-49) (EBONY) K107 (06) (AL4, ARS, AX4, KA6, Z75, 194) (EXPORT) 2007-2007 01
001 15842720 SEAT, RR (INCLS 2-49) (CASHMERE) K107 (06) (AL4, ARS, AX4, KA6, Z75, 304) (EXPORT) 2007-2007 01
001 15843781 SEAT, RR (INCLS 2-49) (EBONY) K107 (06) (AL4, KA6, Y91, Z88, 194) (EXC ARS) 2007-2007 01
001 15843782 SEAT, RR (INCLS 2-49) (CASHMERE) K107 (06) (AL4, KA6, Y91, Z88, 394) (EXC ARS) 2007-2007 01
001 15843787 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, KA6, Z75, 194) (EXC ARS, AX4) 2007-2007 01
001 15843788 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, KA6, Z75, 304) (EXC ARS, AX4) 2007-2007 01
001 15843911 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, KA6, Z75, 194) (EXC AX4) 2007-2007 01
001 15843912 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, KA6, Z75, 304) (EXC AX4) 2007-2007 01
001 15843932 SEAT, RR (INCLS 2-49) (EBONY) K107 (06) (AL4, ARS, KA6, Y91, Z88, 194) 2007-2007 01
001 15843933 SEAT, RR (INCLS 2-49) (CASHMERE) K107 (06) (AL4, ARS, KA6, Y91, Z88, 394) 2007-2007 01
001 15865172 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, 193) (EXC ARS, KA6, KB6) 2007-2008 01
001 15865173 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, 313, 333) (EXC ARS, KA6, KB6) 2007-2008 01
001 15865174 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, 833) (EXC ARS, KA6, KB6) 2007-2008 01
001 15865191 SEAT, RR (INCLS 2-49) (EBONY) CK107 (06) (AL4, ARS, 193) (EXC KA6, KB6) 2007-2008 01
001 15865192 SEAT, RR (INCLS 2-49) (CASHMERE) CK107 (06) (AL4, ARS, 313, 333) (EXC KA6, KB6) 2007-2008 01
001 15865193 SEAT, RR (INCLS 2-49) (TITANIUM) CK107 (06) (AL4, ARS, 833) (EXC KA6, KB6) 2007-2008 01
001 15939077 SEAT, RR (INCLS 2-49) (EBONY/TITANIUM) CK107 (06) (AL4, 843) (EXC ARS, KA6, KB6) 2007-2008 01
001 15939078 SEAT, RR (INCLS 2-49) (EBONY/MOROCCO) CK107 (06) (AL4, 223) (EXC ARS, KA6, KB6) 2007-2008 01
001 15939092 SEAT, RR (INCLS 2-49) (EBONY/TITANIUM) CK107 (06) (AL4, ARS, 843) (EXC KA6, KB6) 2007-2008 01
001 15939093 SEAT, RR (INCLS 2-49) (EBONY/MOROCCO) CK107 (06) (AL4, ARS, 223) (EXC KA6, KB6) 2007-2008 01
002 15291701 COVER, R/SEAT BK CUSH (CASHMERE) CK1 (06) (AL4, KA6, Z75, 304) (EXC CZ2) 2007-2008 01
002 15865718 COVER, R/SEAT BK CUSH (EBONY) CK1, 2 (06) (AL4, 193) 2007-2009 01
002 15865719 COVER, R/SEAT BK CUSH (CASHMERE) CK1, 2 (06) (AL4, 313, 333) 2007-2008 01
002 15865720 COVER, R/SEAT BK CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) 2007-2008 01
002 15939122 COVER, R/SEAT BK CUSH (EBONY/TITANIUM) CK1, 2 (06) (AL4, 843) 2007-2008 01
002 15939123 COVER, R/SEAT BK CUSH (EBONY/MOROCCO) CK1, 2 (06) (AL4, 223) 2007-2008 01
002 25899573 COVER, R/SEAT BK CUSH (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2007-2009 01
002 25899574 COVER, R/SEAT BK CUSH (CASHMERE) CK1 (06) (AL4, CZ2, KA6, Z75, 304) 2007-2008 01
002 25928766 COVER, R/SEAT BK CUSH (EBONY) K1 (06) (AL4, KA6, Y91, Z88, 194) 2007-2008 01
002 25928767 COVER, R/SEAT BK CUSH (CASHMERE) K1 (06) (AL4, KA6, Y91, Z88, 394) 2007-2008 01
003 15291601 PAD, R/SEAT BK CUSH CK1, 2 (06) (AL4) 2007-2009 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2007-2009
005 15824668 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 193, 223, 843) 2007-2009 02
005 15824669 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 313, 333) 2007-2009 02
005 15824670 RESTRAINT, R/SEAT HD (INCLS 4) (TITANIUM) CK107 (06) (AL4, 833) 2007-2009 02
005 15824672 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK107 (06) (AL4, 194) (EXC AX4) 2007-2009 02
005 15824674 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 304) 2007-2008 02
005 25928791 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) CK107 (06) (AL4, 394) 2007-2009 02
006 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1, 2 (06-36) (19I) 2007-2009 02
006 15279348 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
006 15279349 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06-36) (83I) 2007-2009 02
006 15279351 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (19I, 22I, 84I) 2007-2008 02
006 15279440 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1 (06) (30I) 2007-2008 02
007 15279351 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (19I, 22I, 84I) 2007-2009 02
007 15279352 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06-36) (31I, 33I, 39I) 2007-2009 02
007 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2 (06-36) (83I) 2007-2009 02
007 15279441 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1 (06) (30I) 2007-2008 02
008 15269768 FRAME, R/SEAT BK CUSH CK1, 2 (06) (AL4) 2007-2009 01
009 15279689 CAP, R/SEAT ACTR FIN CVR BOLT (EBONY) CK1, 2 (06) (AL4, 19I, 22I, 84I) 2007-2009 02
009 15279690 CAP, R/SEAT ACTR FIN CVR BOLT (CASHMERE) CK1, 2 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
009 15279691 CAP, R/SEAT ACTR FIN CVR BOLT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 02
009 15279692 CAP, R/SEAT ACTR FIN CVR BOLT (CASHMERE) CK1 (06) (AL4, 30I) 2007-2008 02
010 11570119 CK1, 2 (06) (AL4) 2007-2009 02
011 15275870 ARMREST, R/SEAT (EBONY) CK1 (06) (AL4, KA6, Y91, Z88, 194) 2007-2009 01
011 15275870 ARMREST, R/SEAT (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2007-2009 01
011 15275871 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AL4, KA6, Z75, 304) 2007-2008 01
011 15825652 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AL4, KA6, Y91, Z88, 394) 2007-2009 01
011 15825652 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AL4, KA6, Z75, 394) 2007-2009 01
011 15865497 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 193, 223, 843) 2007-2009 01
011 15865498 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AL4, 313, 333) 2007-2009 01
011 15865499 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 833) 2007-2009 01
012 11570115 STUD, R/SEAT A/RST (T/W 11570119 NUT) CK1, 2 (06) (AL4) 2007-2009 02
014 15291603 PAD, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2009 01
015 15269770 FRAME, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2009 01
016 11570116 SCREW -PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2009 09
017 11562384 2007-2009 02
018 15280108 COVER, R/SEAT RECL INR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
018 15280109 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
018 15280110 COVER, R/SEAT RECL INR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2009 01
018 15280111 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 30I) 2007-2008 01
019 11562378 BOLT-HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2009 12
020 15279464 KNOB, R/SEAT LAT (EBONY) (USED IN PLACE OF ALL COLORS) (16.716) CK1, 2, 3 2007-2009 02
021 15279714 COVER, R/SEAT RECL INR FIN (INCLS 42) (EBONY) (OUTER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
021 15279715 COVER, R/SEAT RECL INR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
021 15279716 COVER, R/SEAT RECL INR FIN (INCLS 42) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2009 01
021 15279717 COVER, R/SEAT RECL INR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, 30I) 2007-2008 01
022 19121601 BELT KIT, R/SEAT (BKL SI) (EBONY) CK1, 2 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
022 19121602 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1 (06) (AL4, 30I) 2007-2008 01
022 19121603 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AL4, 31I, 33I, 39I) 2007-2008 01
022 19121604 BELT KIT, R/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 01
023 15275898 RECLINER, R/SEAT INR (USED ON VEHICLES BUILT PRIOR TO JUNE 1, 2006) (2ND DES SEE 25896461) CK1, 2 (06) (AL4) (1ST DES) 2007-2007 01
023 25896461 RECLINER, R/SEAT INR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER AND OUTER IN SETS) (USED ON VEHICLES BUILT AFTER MAY 31, 2006) (1ST DES SEE 15275898) CK1, 2 (06) (AL4) (2ND DES) 2007-2007 01
024 15275886 LATCH, R/SEAT RSR CK107 (06) (AL4) 2007-2009 02
025 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AL4) 2007-2009 08
026 15275901 CK1, 2 (06) (AL4) 2007-2009 02
027 15275903 CK1, 2 (06) (AL4) 2007-2009 02
028 15275905 STRUT, R/SEAT CK1, 2 (06) (AL4) 2007-2009 02
029 15280118 PANEL, R/SEAT CUSH TR (EBONY) (16.716) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
029 15280119 PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
029 15280120 PANEL, R/SEAT CUSH TR (TITANIUM) (16.716) CK107 (06) (AL4, 83I) 2007-2009 01
029 15280121 PANEL, R/SEAT CUSH TR (CASHMERE) (16.716) CK107 (06) (AL4, 30I) 2007-2008 01
030 15280128 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
030 15280129 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
030 15280130 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK107 (06) (AL4, 83I) 2007-2009 01
030 15280131 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 30I) 2007-2008 01
031 15269775 RISER, R/SEAT CK107 (06) (AL4) 2007-2009 01
032 11562379 CK1, 2 2007-2009 02
033 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 34) 2007-2009
034 15279599 COVER, R/SEAT RSR FIN (INCLS 33) (EBONY) (FRONT) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 02
034 15279600 COVER, R/SEAT RSR FIN (INCLS 33) (CASHMERE) (FRONT) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
034 15279601 COVER, R/SEAT RSR FIN (INCLS 33) (TITANIUM) (FRONT) CK107 (06) (AL4, 83I) 2007-2009 02
034 15279602 COVER, R/SEAT RSR FIN (INCLS 33) (CASHMERE) (FRONT) CK107 (06) (AL4, 30I) 2007-2008 02
036 HARNESS, R/SEAT HTR (ARS) 2007-2009
037 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AL4, 19I, 84I) 2007-2008 02
037 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AL4, 22I) 2007-2008 02
037 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (AL4, 31I, 33I, 39I) 2007-2009 02
037 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2009 02
037 15279439 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (AL4, 30I) 2007-2008 02
038 15275913 CABLE, R/SEAT BK CUSH LAT CK1, 2 (06) (AL4) 2007-2009 02
039 15275915 CABLE, R/SEAT LAT (INBOARD) (SYNCH) CK1, 2 (06) (AL4) 2007-2009 02
040 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AL4) 2007-2009 02
041 25896459 RECLINER, R/SEAT OTR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2007-2009 01
042 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 21, 45) 2007-2009
043 RETAINER, R/SEAT ADJR RLR (PART OF 44) 2007-2009
044 15279414 HANDLE, R/SEAT RECL (INCLS 43) (EBONY) CK1, 2 (06) (19I, 22I, 84I) 2007-2008 01
044 15279415 HANDLE, R/SEAT RECL (INCLS 43) (CASHMERE) CK1, 2 (06) (31I, 33I, 39I) 2007-2009 01
044 15279416 HANDLE, R/SEAT RECL (INCLS 43) (TITANIUM) CK1, 2 (06) (83I) 2007-2009 01
044 15279417 HANDLE, R/SEAT RECL (INCLS 43) (CASHMERE) CK1, 2 (06) (30I) 2007-2008 01
045 15279694 COVER, R/SEAT RECL OTR FIN (INCLS 42) (EBONY) (OUTER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
045 15279695 COVER, R/SEAT RECL OTR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
045 15279696 COVER, R/SEAT RECL OTR FIN (INCLS 42) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2009 01
045 15279697 COVER, R/SEAT RECL OTR FIN (INCLS 42) (CASHMERE) (OUTER) CK107 (06) (AL4, KA6, Z75, 304) 2007-2009 01
046 15279704 COVER, R/SEAT RECL OTR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I, 22I, 84I) 2007-2009 01
046 15279705 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 31I, 33I, 39I) 2007-2009 01
046 15279706 COVER, R/SEAT RECL OTR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2009 01
046 15279707 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 30I) 2007-2008 01
047 15865726 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, 193) 2007-2008 01
047 15865727 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, 313, 333) 2007-2008 01
047 15865728 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) 2007-2008 01
047 15939155 COVER, R/SEAT CUSH (EBONY/MOROCCO) CK1, 2 (06) (AL4, 223) 2007-2009 01
047 25899561 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2007-2009 01
047 25899562 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AL4, CZ2, KA6, Z75, 304) (EXPORT) 2007-2008 01
047 25899562 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AL4, KA6, Z75, 304) (EXC CZ2) 2007-2008 01
047 25928778 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AL4, KA6, Y91, Z88, 194) 2007-2008 01
047 25928779 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AL4, KA6, Y91, Z88, 394) 2007-2008 01
048 HARNESS, ST RECL WRG (ELEMENT) 2007-2009
049 15275906 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AL4) 2007-2009 01
