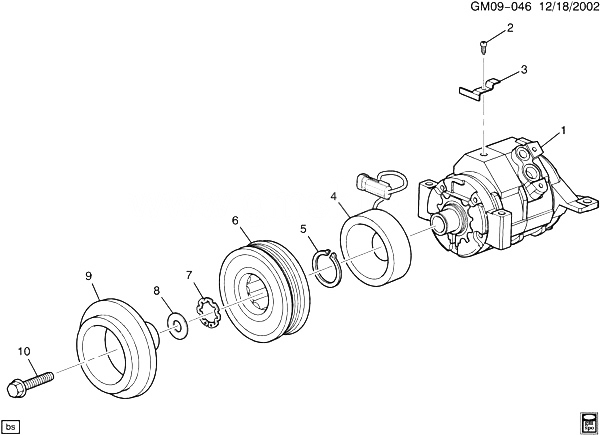

(GM09-046) - 2007-2008 CK1,2,3 КОМПРЕССОР КОНДИЦИОНЕРА ASM (LY6/6.0K,L76/6.0Y,L92/6.2-8) CADILLAC - ESCALADE (AWD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 2007-2009
001 89024905 CK1, 2 (LC9, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C69) 2007-2007 01
002 2007-2008
002 2007-2009
003 BRACKET, A/C CMPR (PART OF 1) (*KIT1) 2007-2008
003 BRACKET, A/C CMPR (PART OF 1) (*KIT1) 2007-2009
004 COIL, A/C CLU (PART OF 1) (*KIT1) 2007-2008
004 COIL, A/C CLU (PART OF 1) (*KIT1) 2007-2009
005 RING, A/C CLU COIL RET (PART OF 1) (*KIT1) 2007-2008
005 RING, A/C CLU COIL RET (PART OF 1) (*KIT1) 2007-2009
006 BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) 2007-2008
006 BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) 2007-2009
007 RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) 2007-2008
007 RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) 2007-2009
008 WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) 2007-2008
008 WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) 2007-2009
009 CLUTCH, A/C (PART OF 1) (*KIT1) 2007-2008
009 CLUTCH, A/C (PART OF 1) (*KIT1) 2007-2009
010 11561365 CK1, 2, 3 2007-2009 01
K01 12476085 CLUTCH KIT, A/C (4 SPLINED, DENSO) (INCLS 2-10) (INCL PULLEY) (LOW MOUNT) (ACDelco #15-4709) CK1, 2, 3 2007-2009 01
