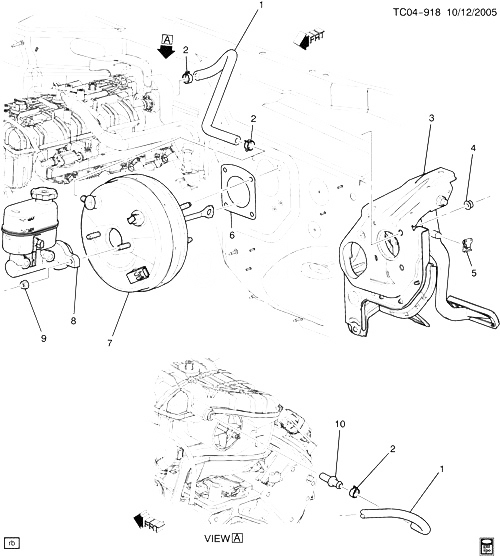

(TC04-918) - 2007-2009 CK1(06-36) УСИЛИТЕЛЬ ТОРМОЗОВ ГЛАВНЫЙ ЦИЛИНДР MOUNTING (JD9) CADILLAC - ESCALADE (AWD) 2007
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 002 | 01470030 | CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 1) (ACDelco #1470030) | 2007-2009 | 02 | |
| 003 | PEDAL, BRK ACCEL (W/BRKT) ( | 2007-2009 | |||
| 004 | 11517996 | CK1, 2, 3 | 2007-2009 | 04 | |
| 005 | 11569844 | RETAINER, BRK PED PUSH ROD (WITH BOLT) | CK1, 2, 3 | 2007-2009 | 01 |
| 006 | 15974046 | GASKET, P/B BOOS | CK1 (JD9, JF3, JF7) | 2007-2008 | 01 |
| 007 | BOOSTER, P/B (VAC) ( | 2007-2009 | |||
| 008 | CYLINDER, BRK MAS ( | 2007-2009 | |||
| 009 | 11517996 | CK1, 2, 3 | 2007-2009 | 02 | |
| 010 | 12559760 | NIPPLE, P/B BOOS VAC HOSE | CK1 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92) | 2007-2007 | 01 |
